Steering Column Jacket Replacement

Steering Column Jacket Replacement

Removal Procedure





1. Caution: Refer to SIR Caution in Service Precautions.

Disable the SIR system.
2. Remove the steering column from the vehicle.
3. Inspect the steering column for accident damage.
4. Remove the steering column tilt head.

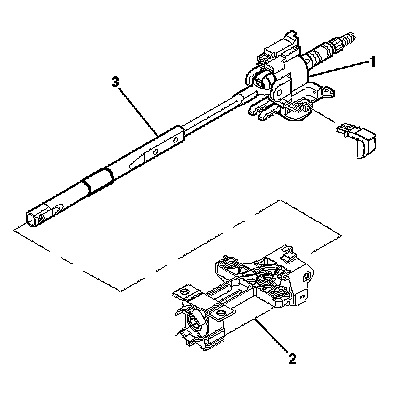

5. Remove the jacket (2).

Installation Procedure





1. Install the jacket (2).
2. Install the steering column tilt head (1).
3. Install the steering column to the vehicle.
4. Enable the SIR system.
