Hydraulic System: Locations

Hydraulic Brakes Component Views

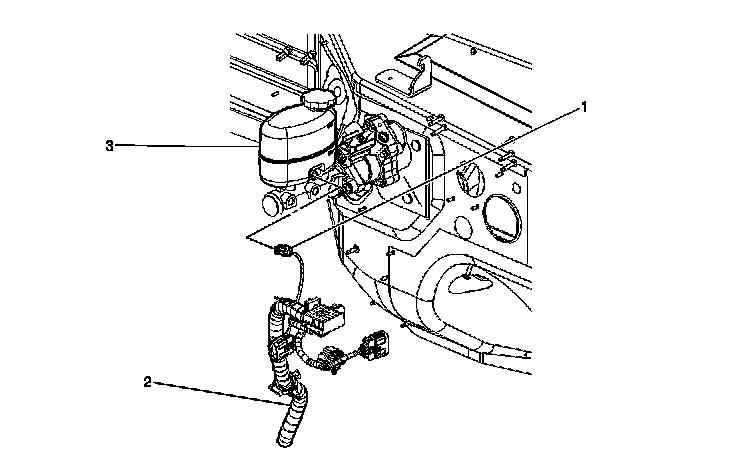

LR of the Engine Compartment

1 - Brake Fluid Level Switch Connector
2 - Chassis Harness
3 - Master Cylinder

Lower Left Side of the I/P

1 - I/P Harness
2 - Park Brake Switch Connector
3 - Relay Block - Body - C1
4 - Tab
5 - Relay Block - Body
6 - Parking Brake Assembly
