Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Passenger Door Module (PDM) - C3

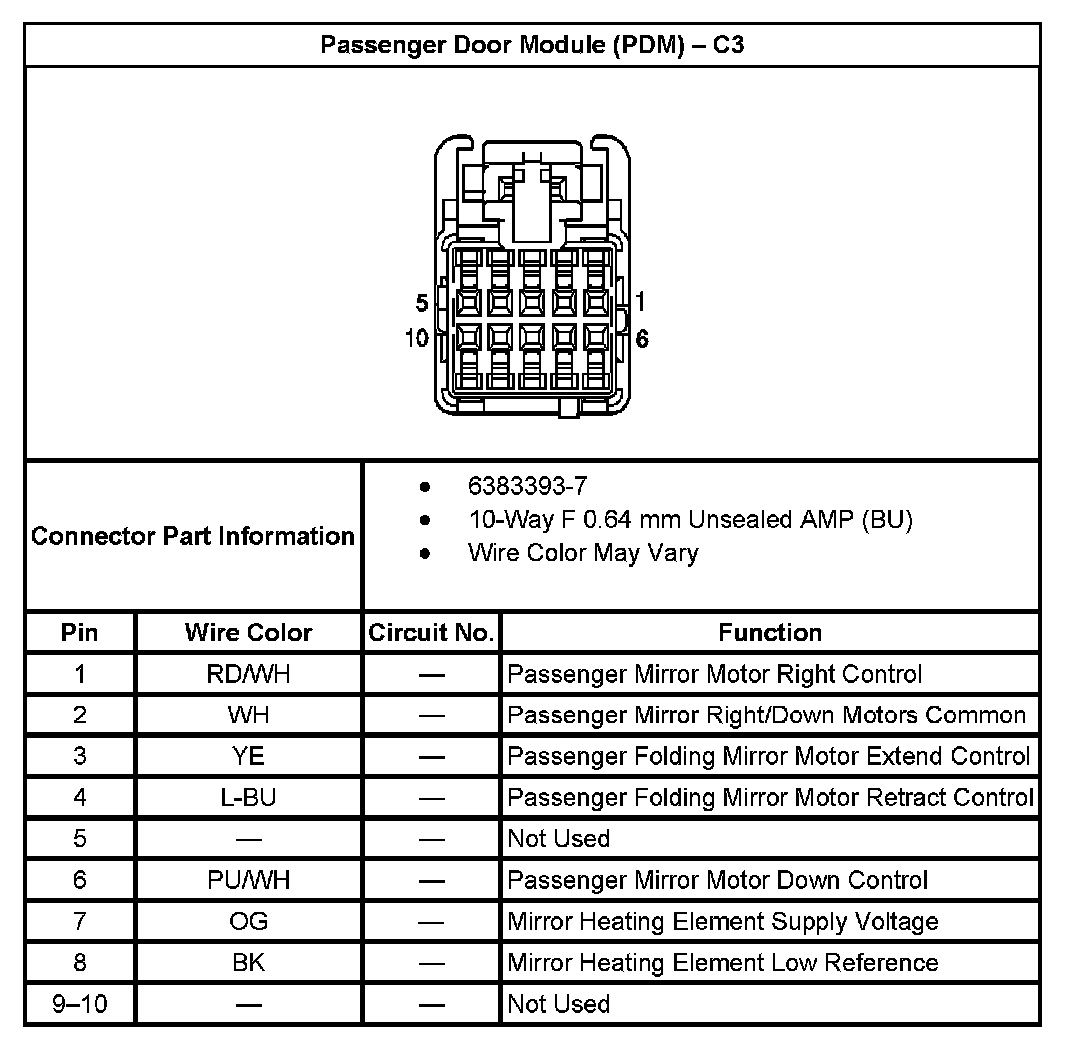

Passenger Door Module (PDM) - C3

Passenger Door Module (PDM) - C3:
