Pressure Regulating Solenoid, A/T
Pressure Regulating Solenoid, A/T
Automatic Transmission Internal Connector End Views

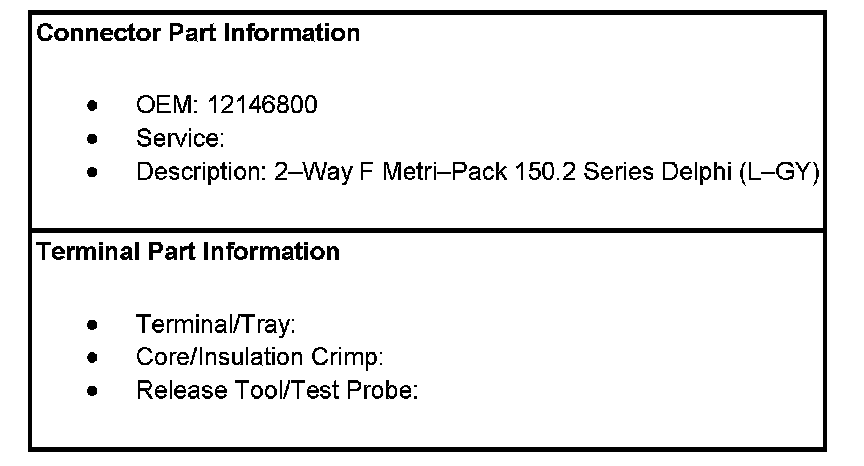

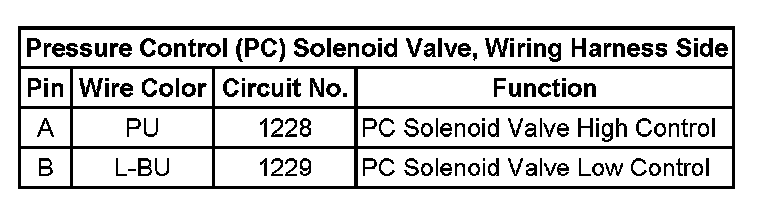

Pressure Control (PC) Solenoid Valve, Wiring Harness Side:
