Remote Control, Audio - Stereo

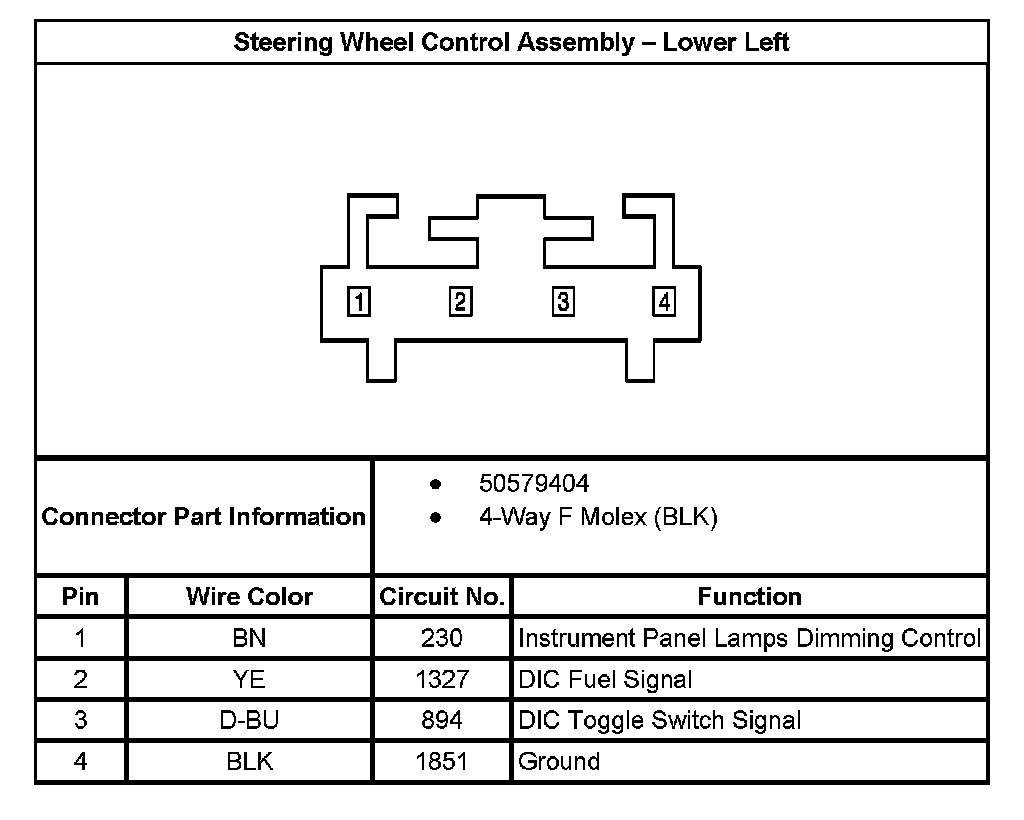

Steering Wheel Control Assembly - Lower Left:

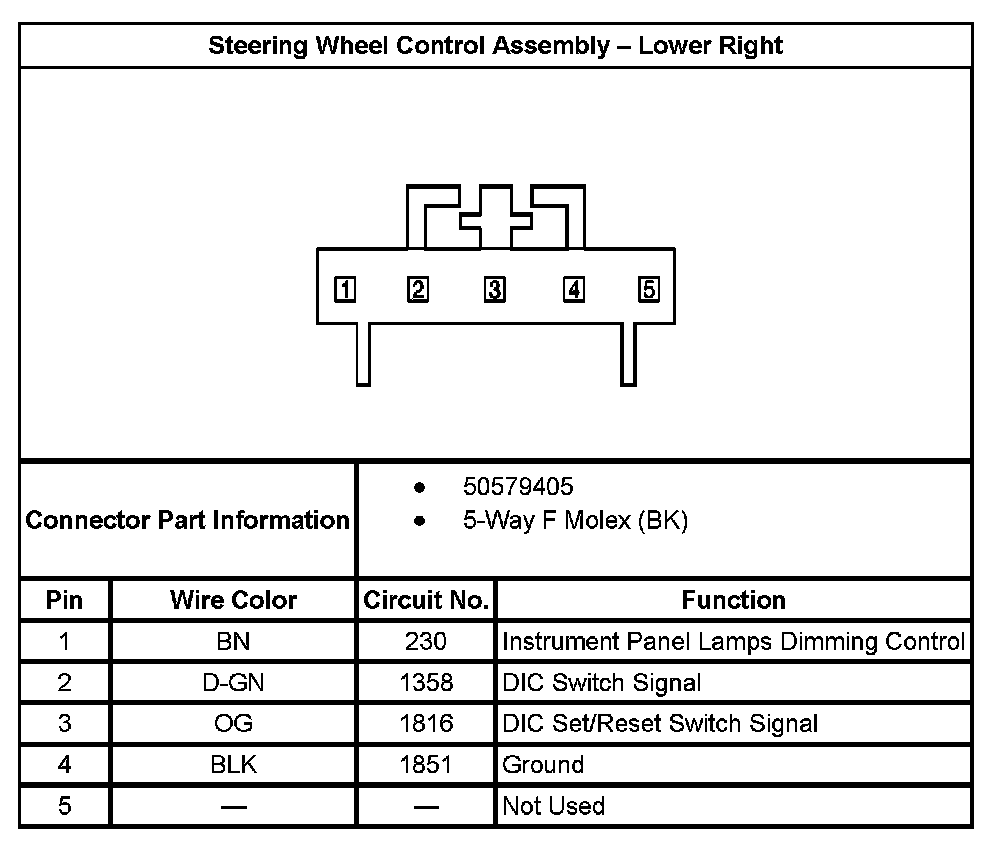

Steering Wheel Control Assembly - Lower Right:

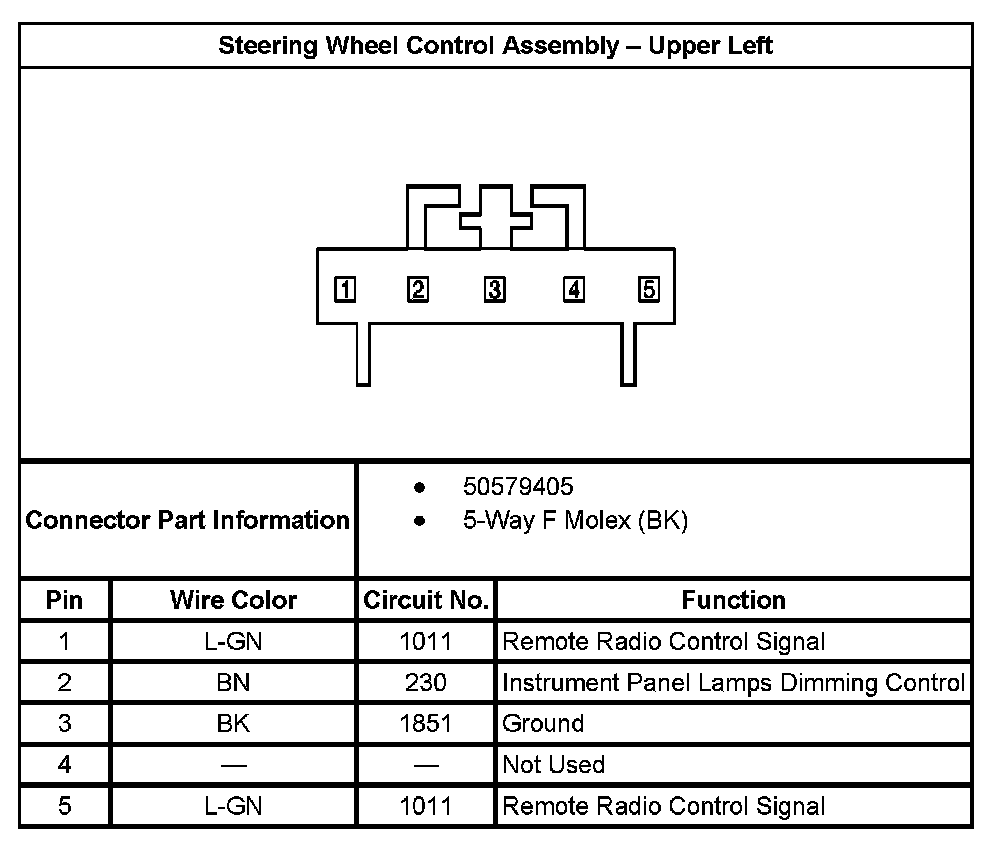

Steering Wheel Control Assembly - Upper Left:

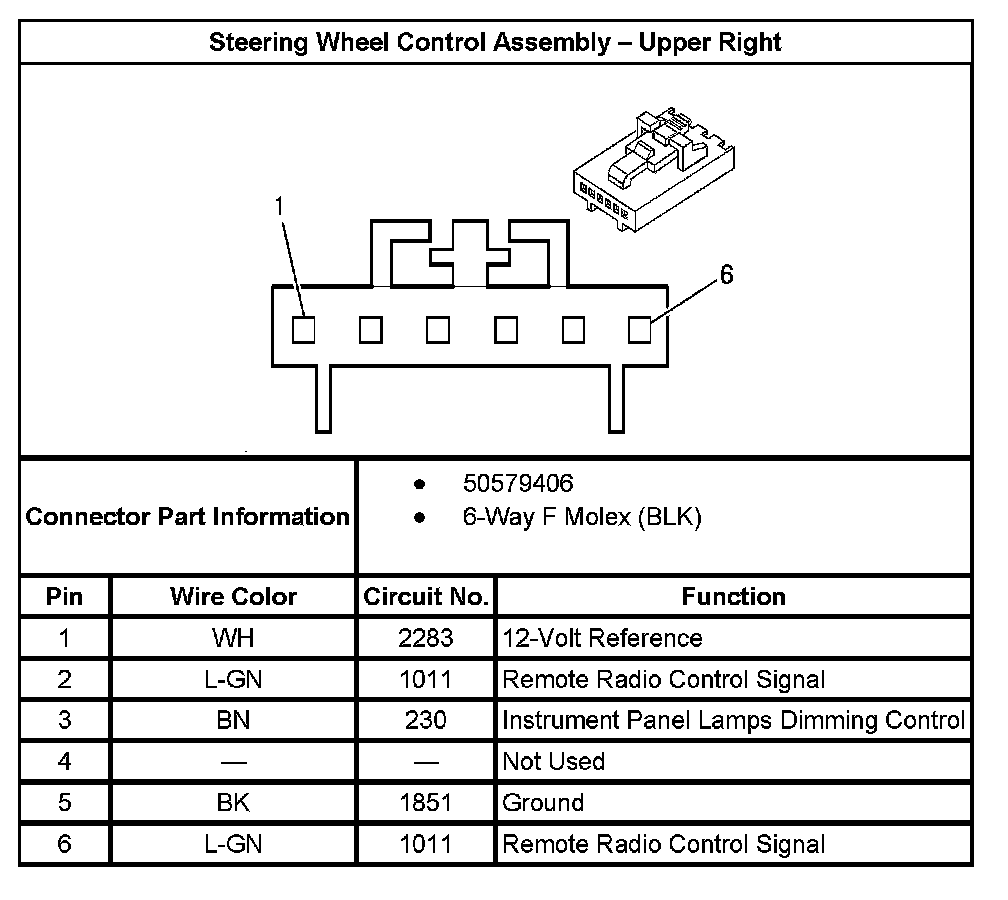

Steering Wheel Control Assembly - Upper Right:
