Transmission Mode Switch, A/T
Transmission Mode Switch, A/T
Automatic Transmission Related Connector End Views

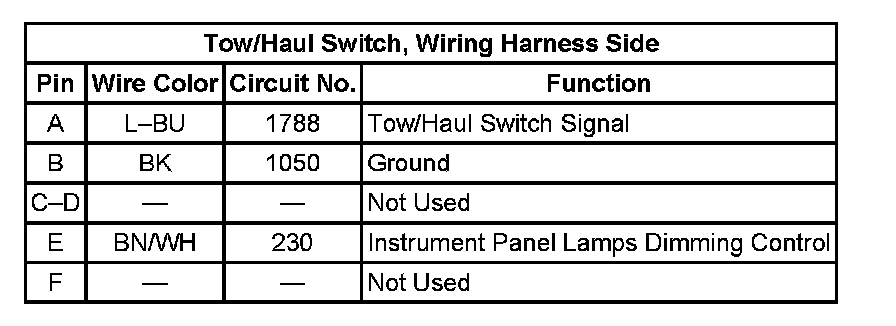

Tow/Haul Switch, Wiring Harness Side:

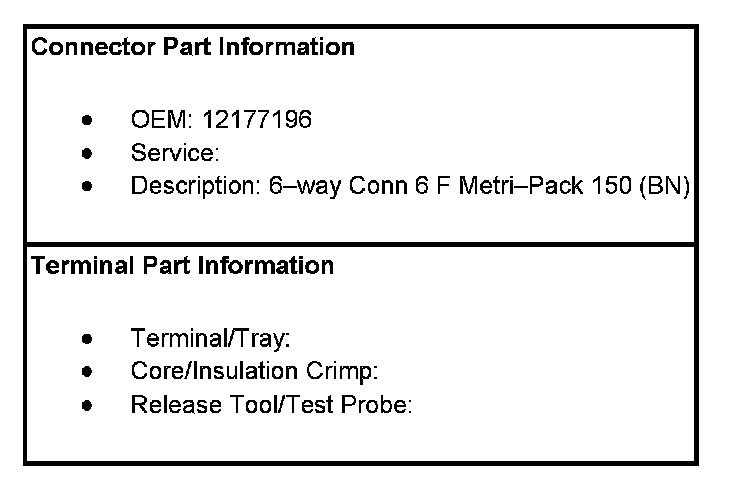

Tow/Haul Switch, Wiring Harness Side:
