Suspension Control ( Automatic - Electronic )

Suspension Controls Diagrams

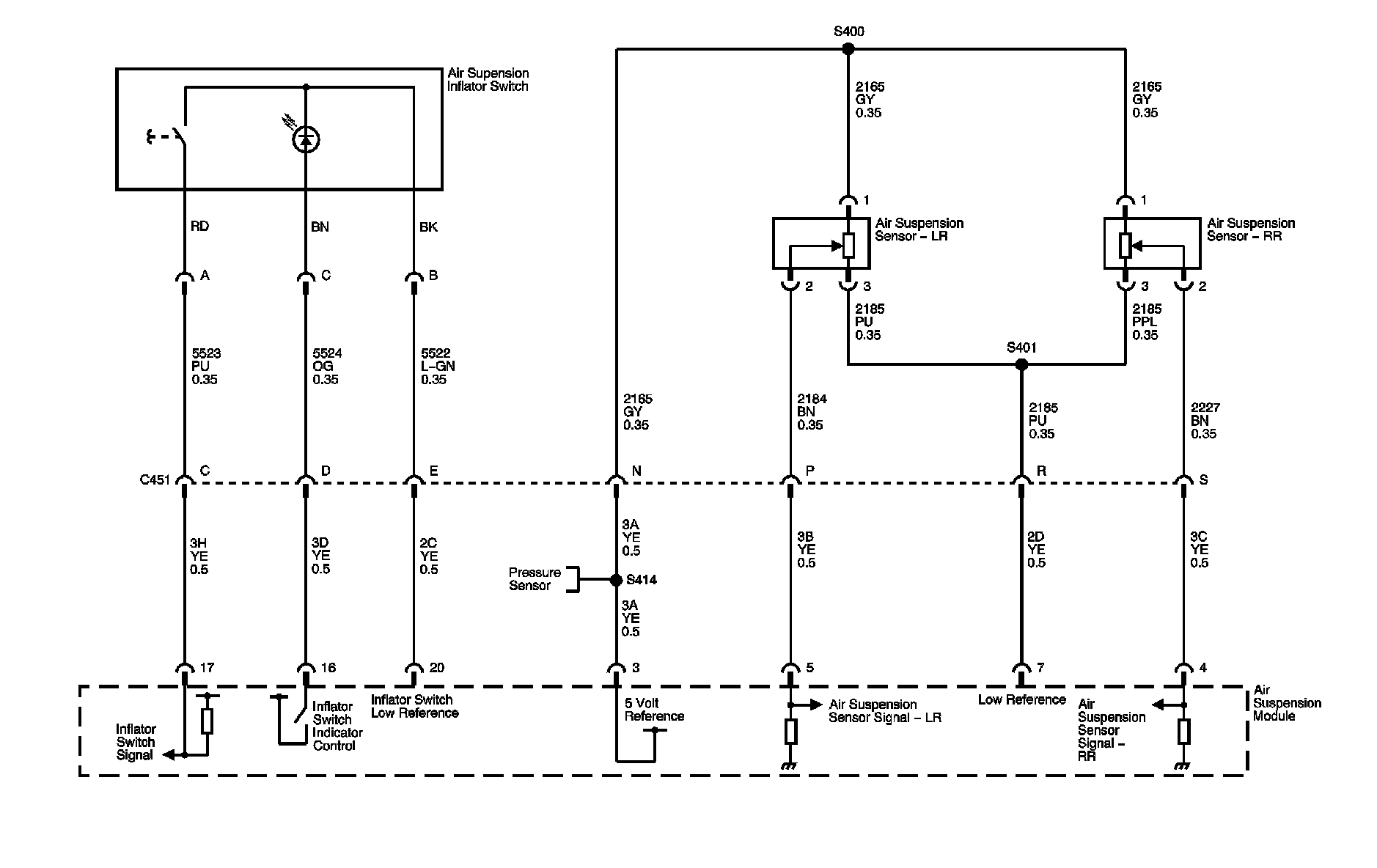

Suspension Controls Diagrams 1:

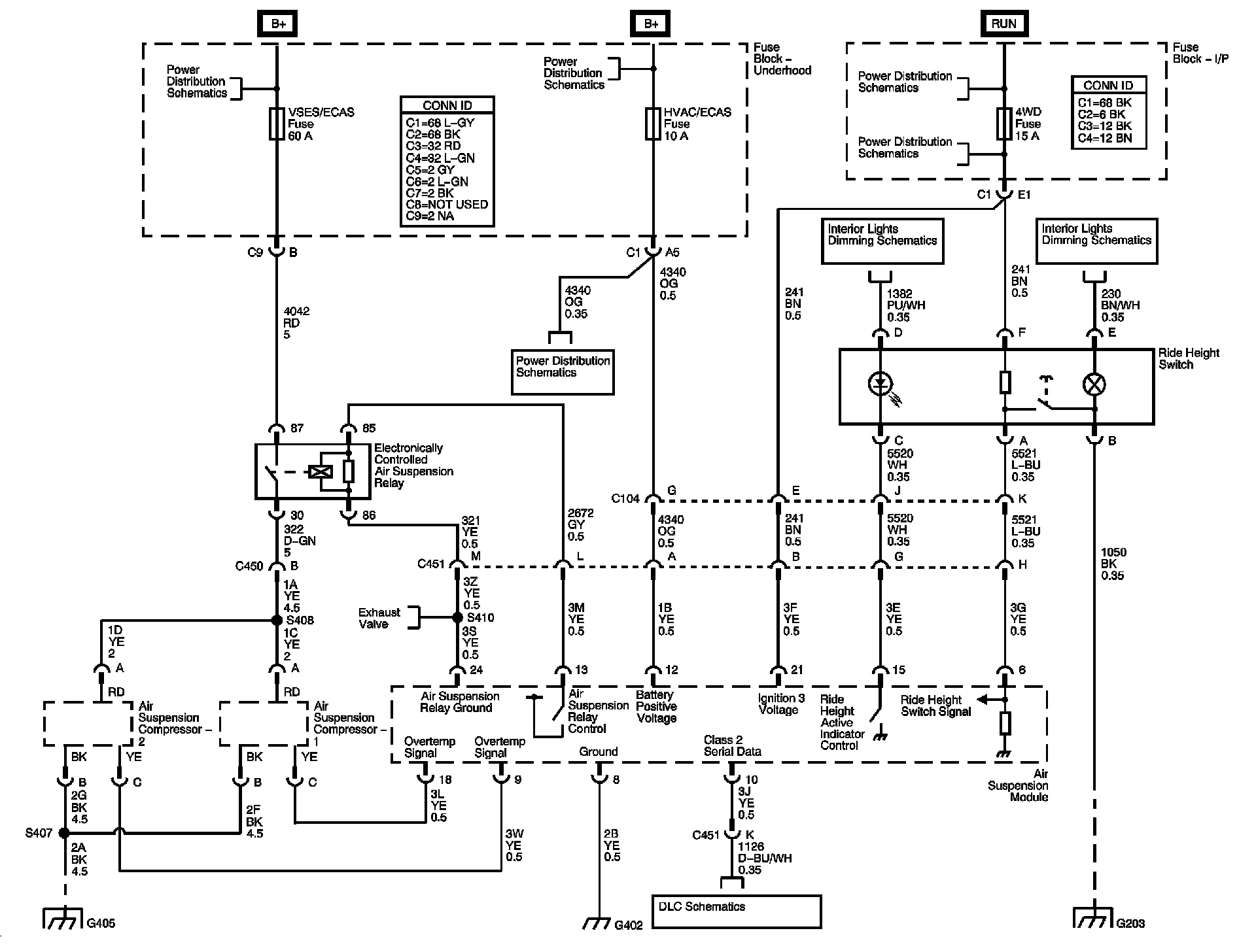

Suspension Controls Diagrams 2:

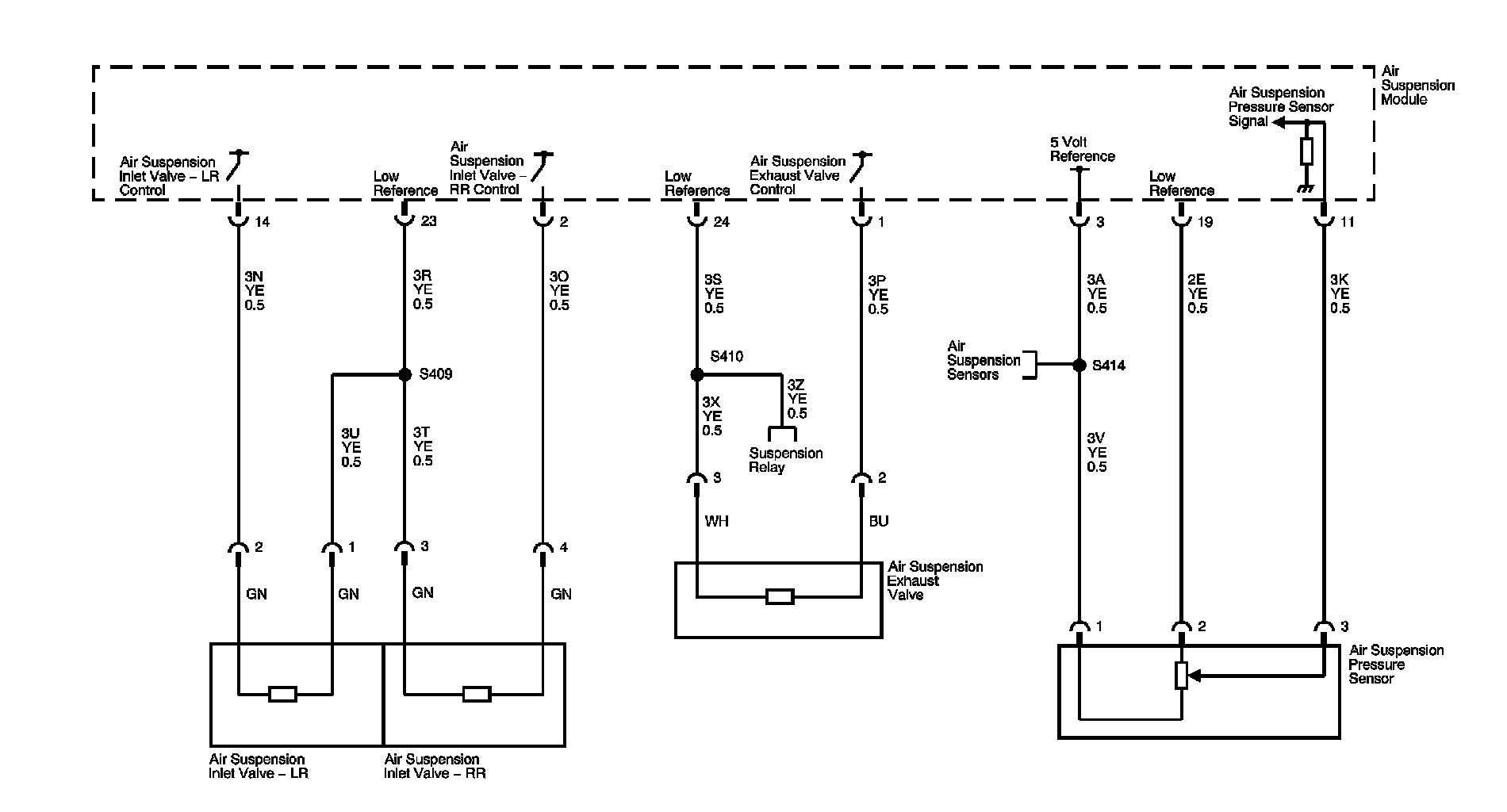

Suspension Controls Diagrams 3:

Locations: The locations for the Connectors, Grounds Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
