Engine Mechanical Specifications

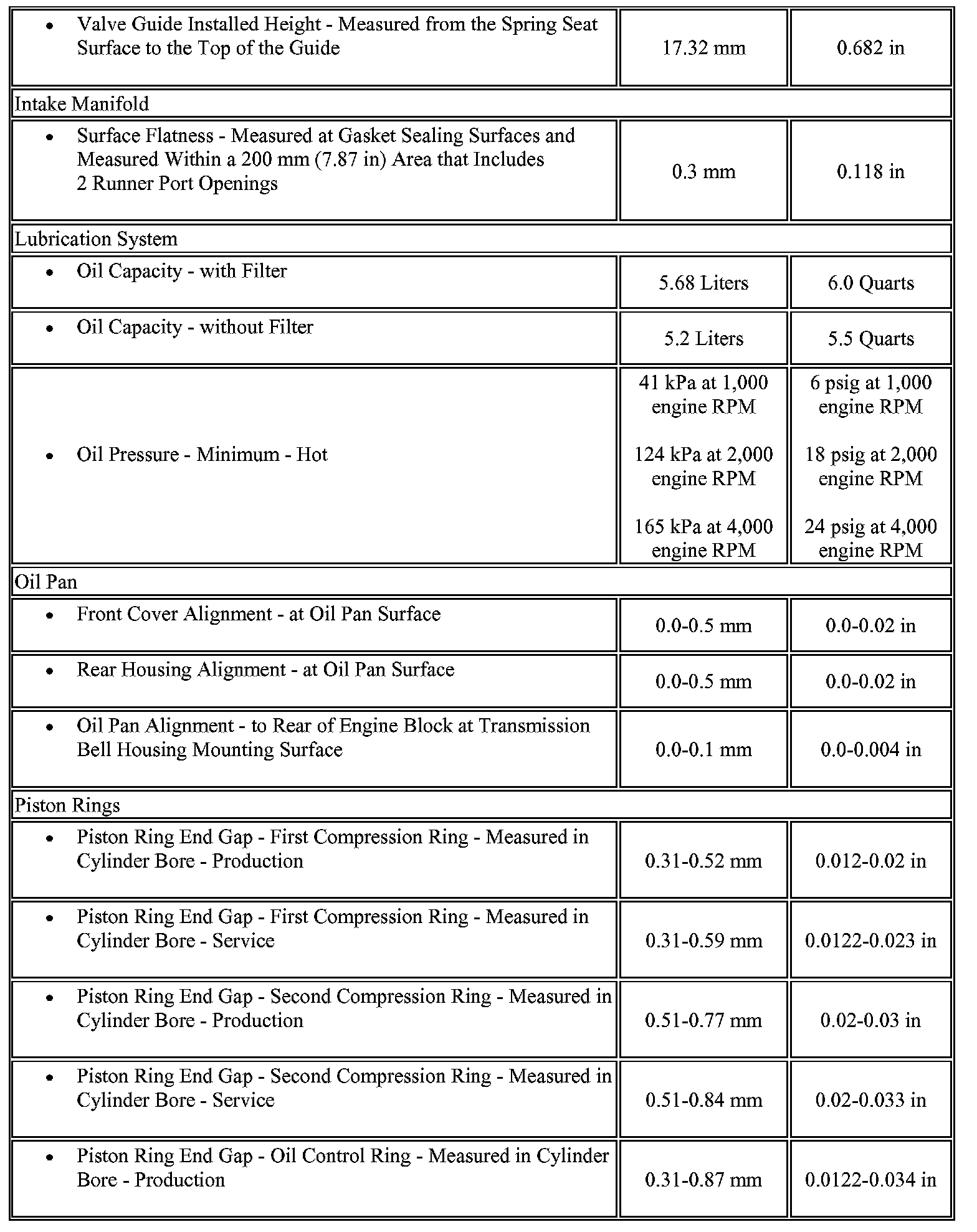

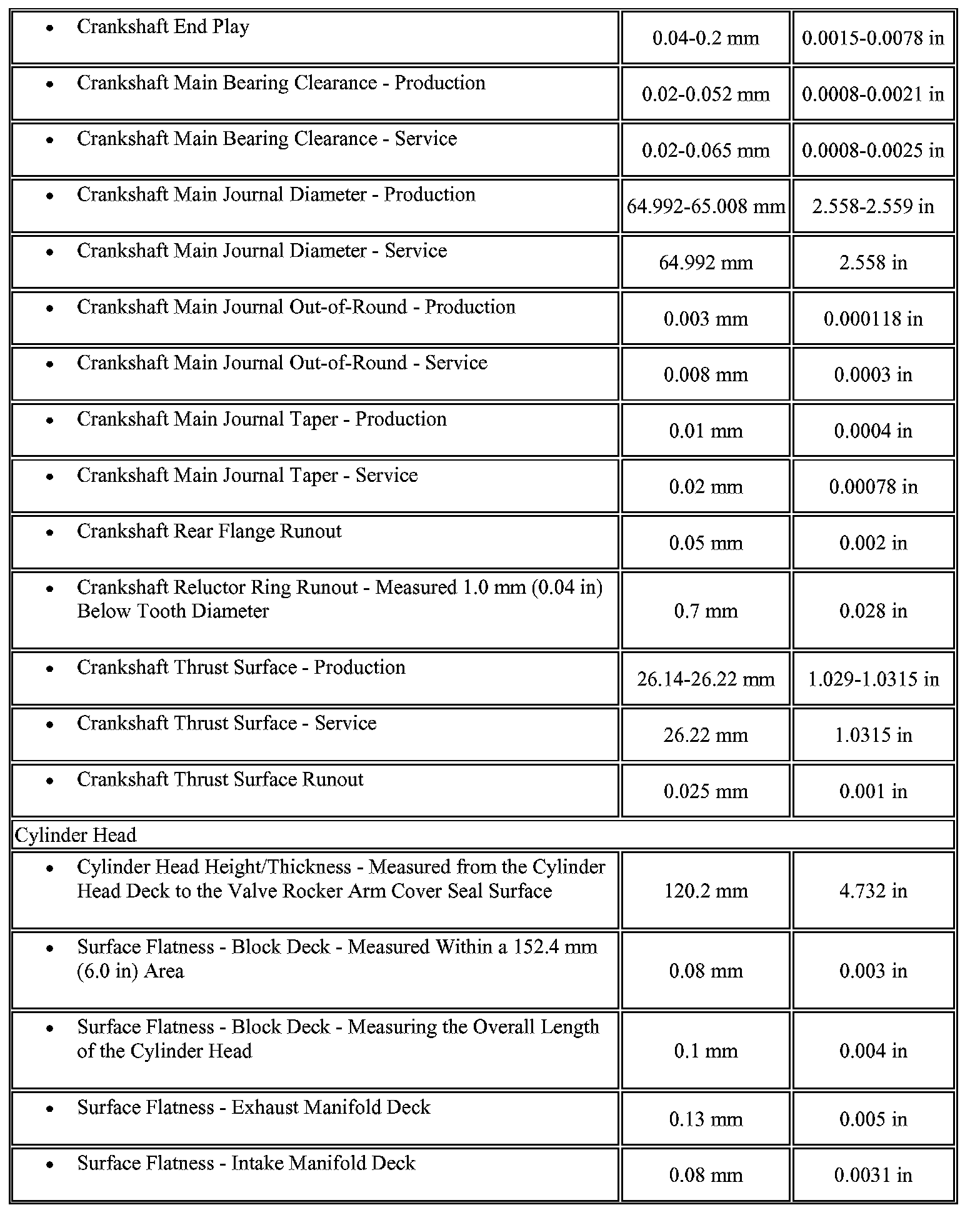

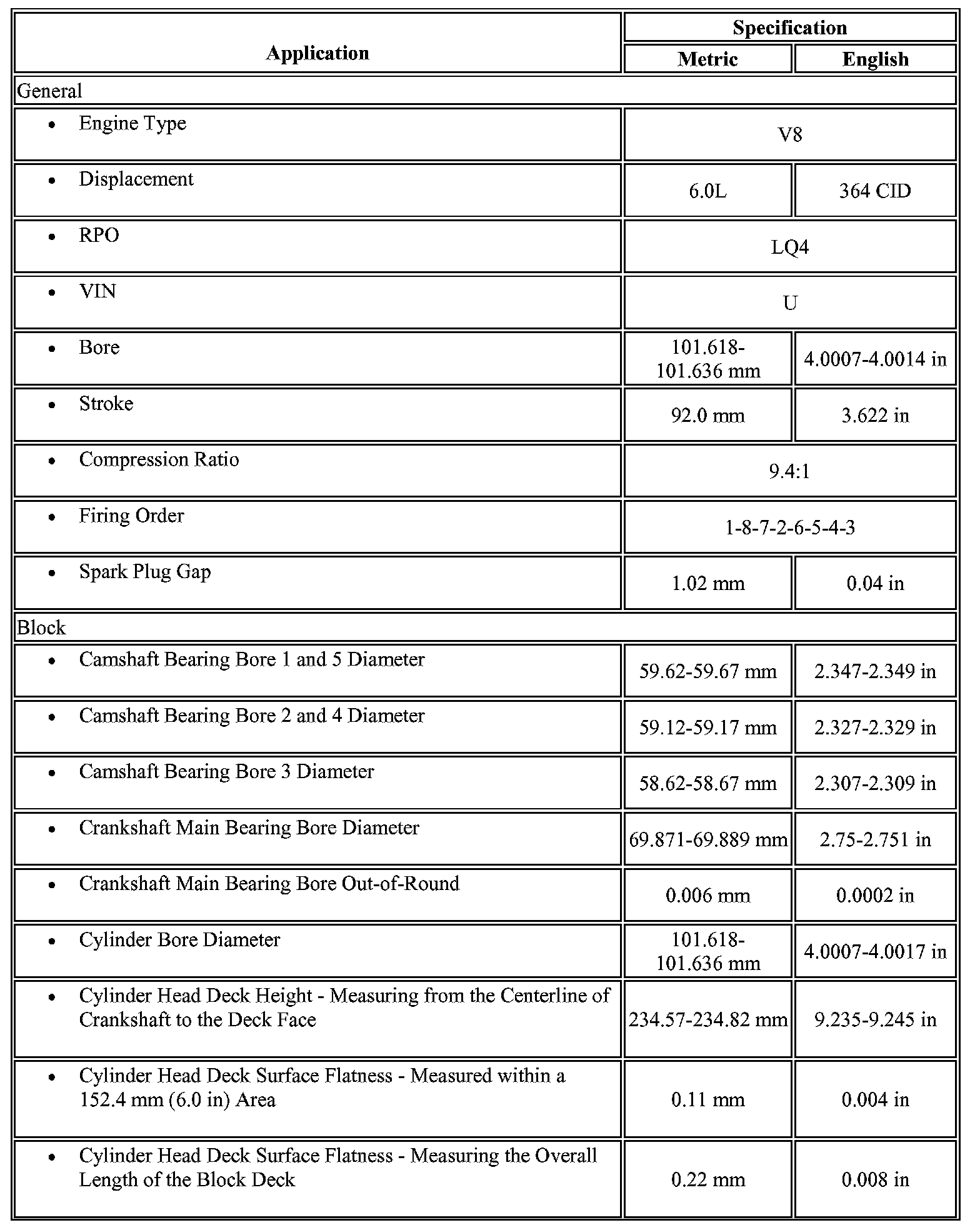

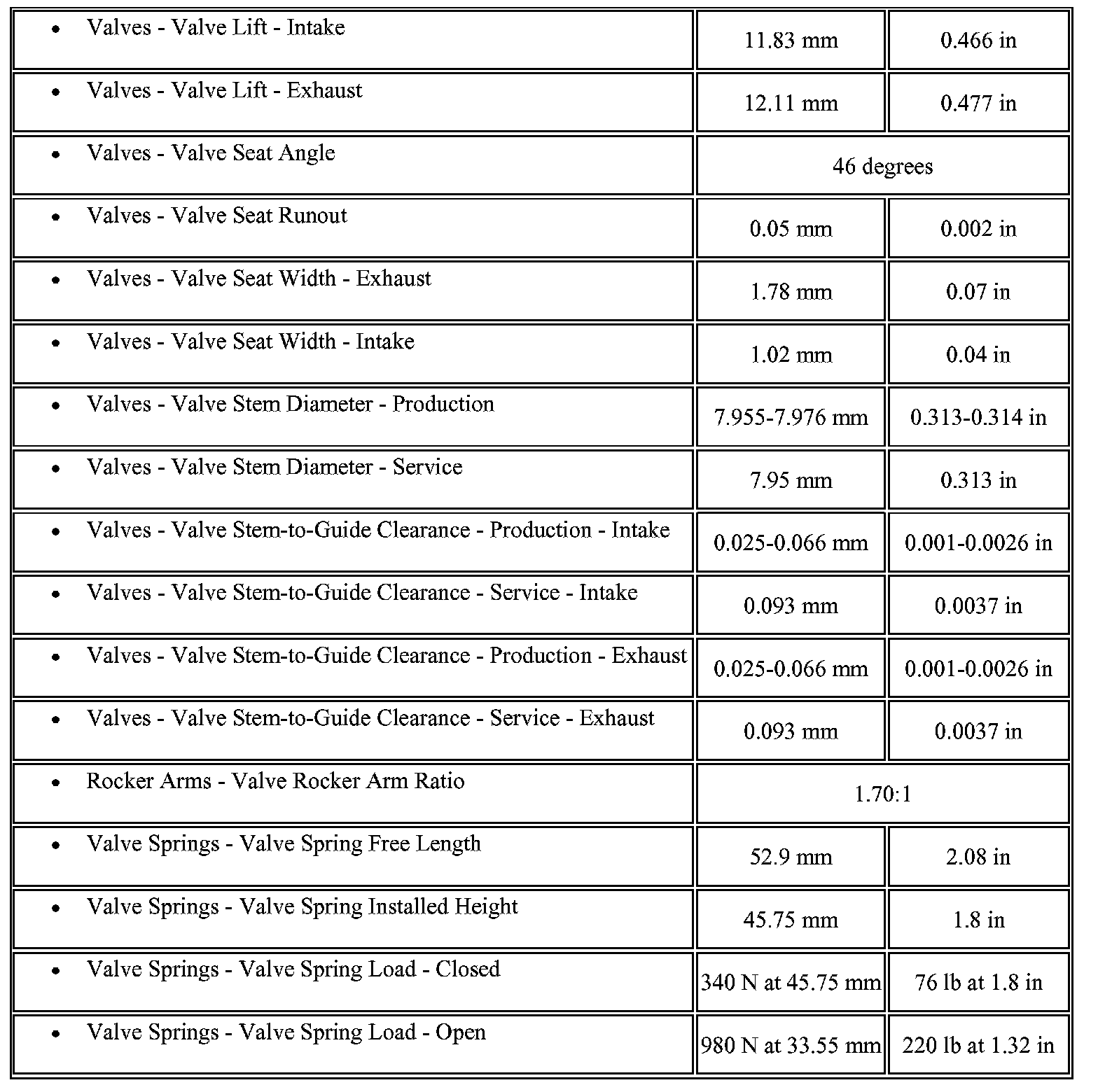

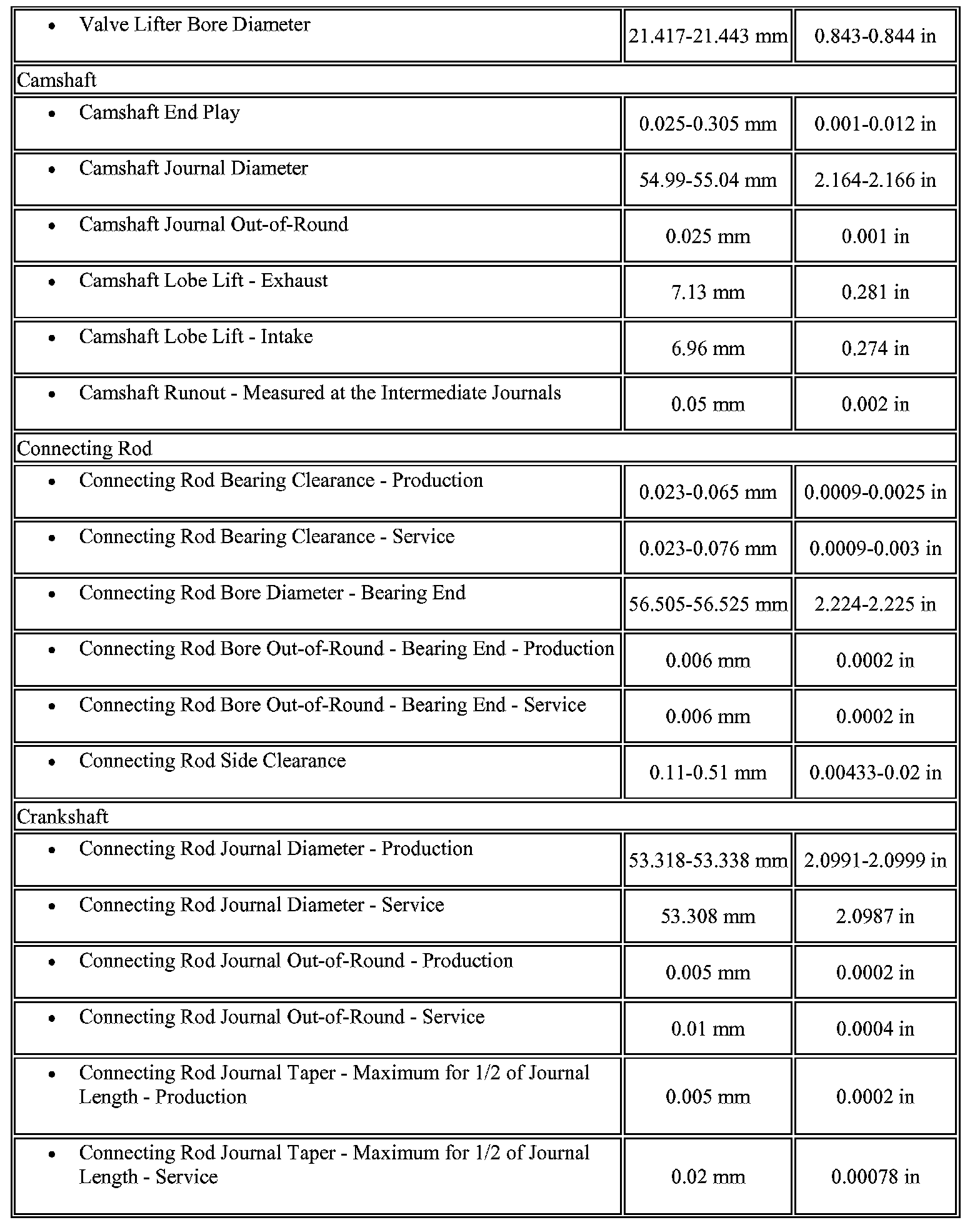

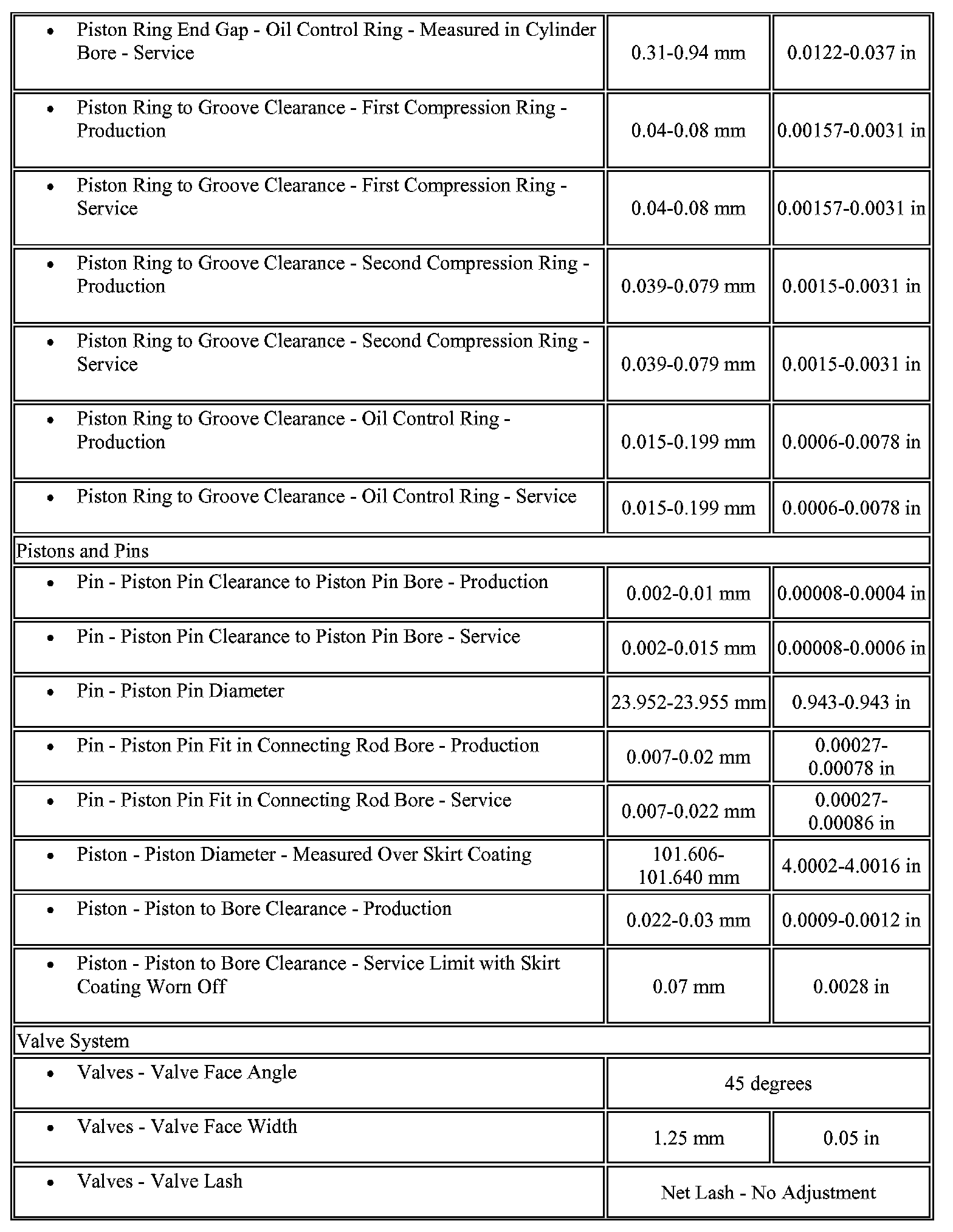

Engine Specifications (Part 1):




Engine Specifications (Part 2):




Engine Specifications (Part 3):




Engine Specifications (Part 4):




Engine Specifications (Part 5):




Engine Specifications (Part 6):
