Electrical Diagrams

Starting and Charging Diagram 1:

Starting

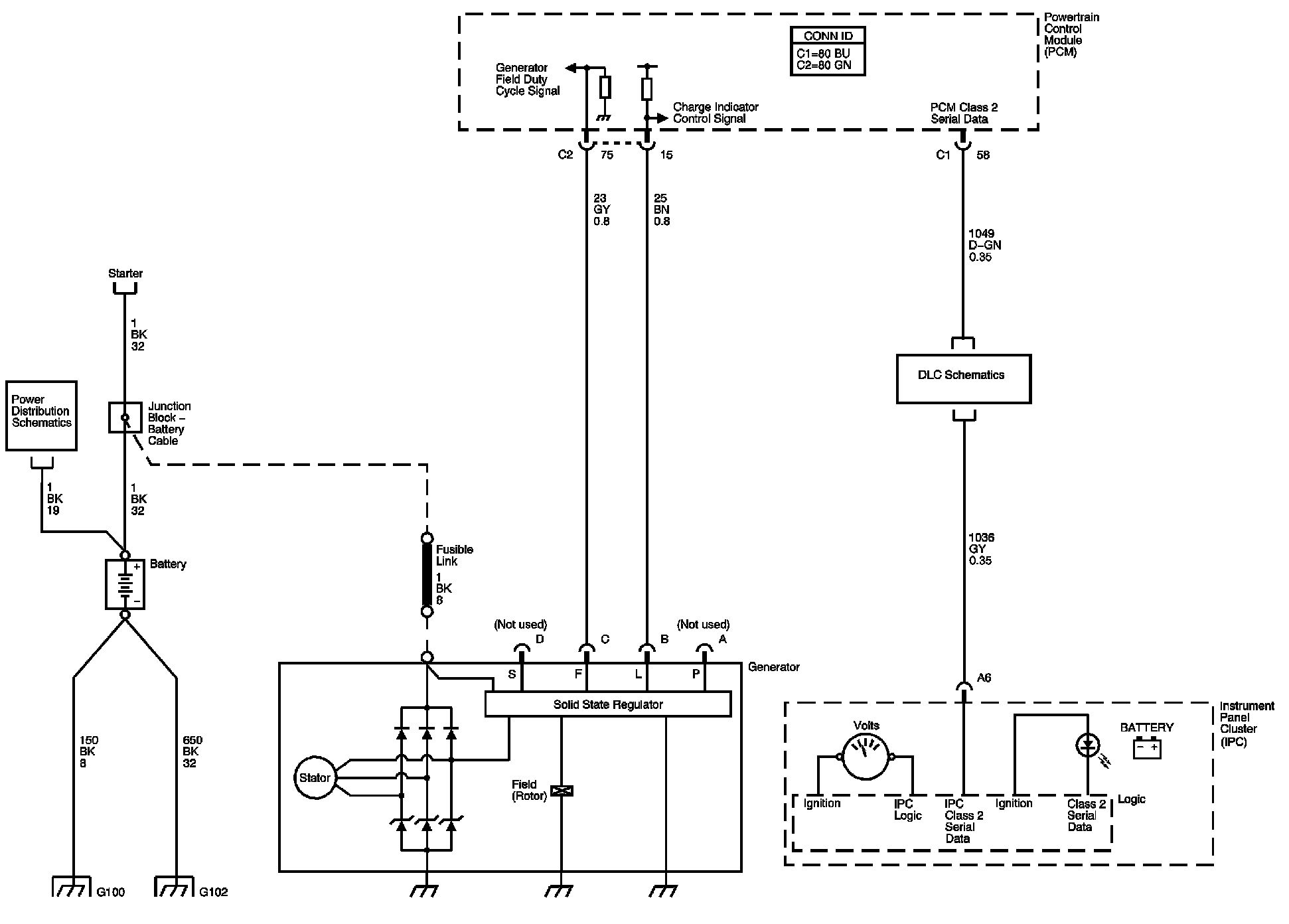

Starting and Charging Diagram 2:

Charging

Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
