Impact Sensor
>>
Inflatable Restraint Vehicle Rollover Sensor
Inflatable Restraint Vehicle Rollover Sensor

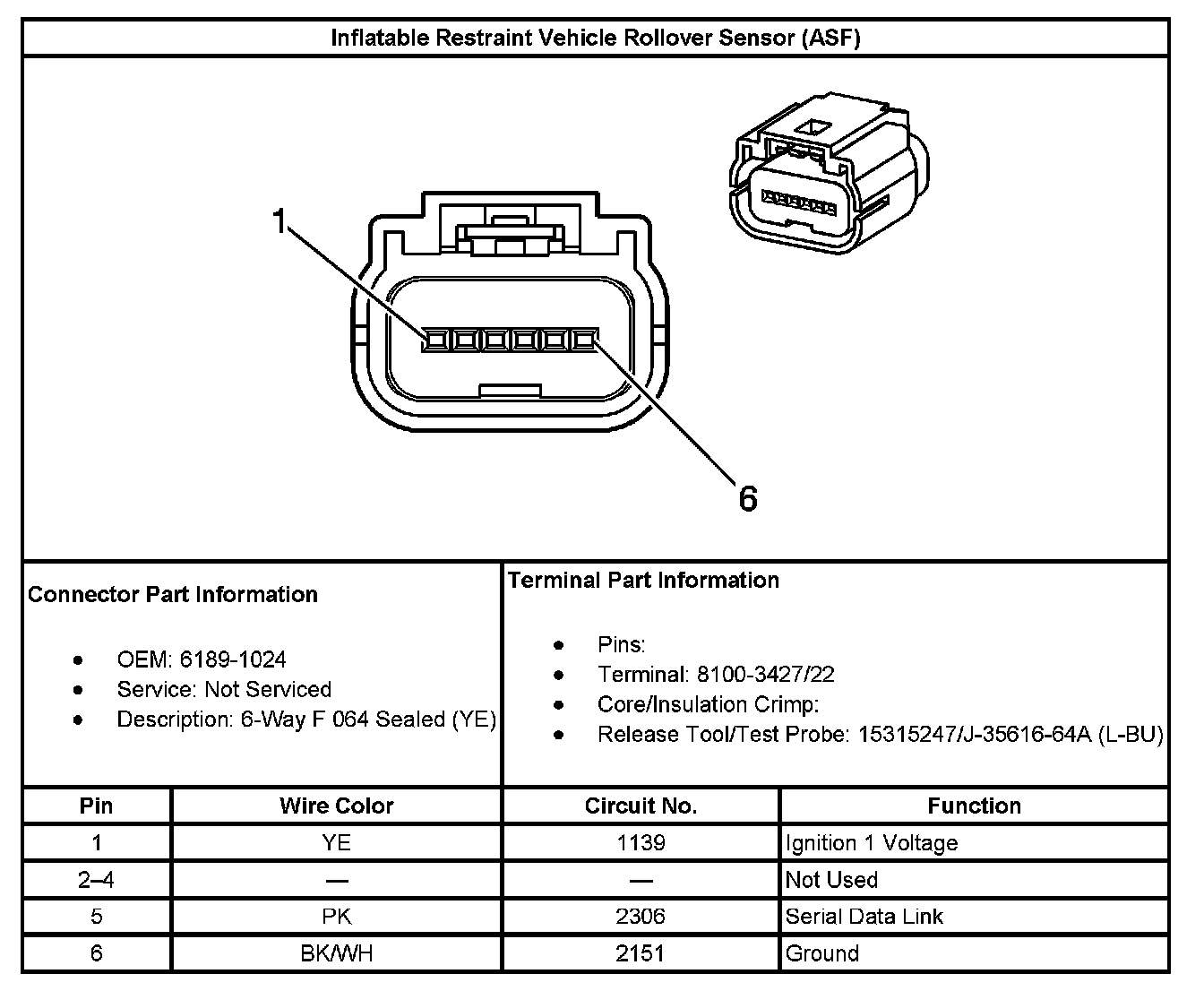

Inflatable Restraint Vehicle Rollover Sensor (With RPO Code ASF):
