Speaker - RF Tweeter

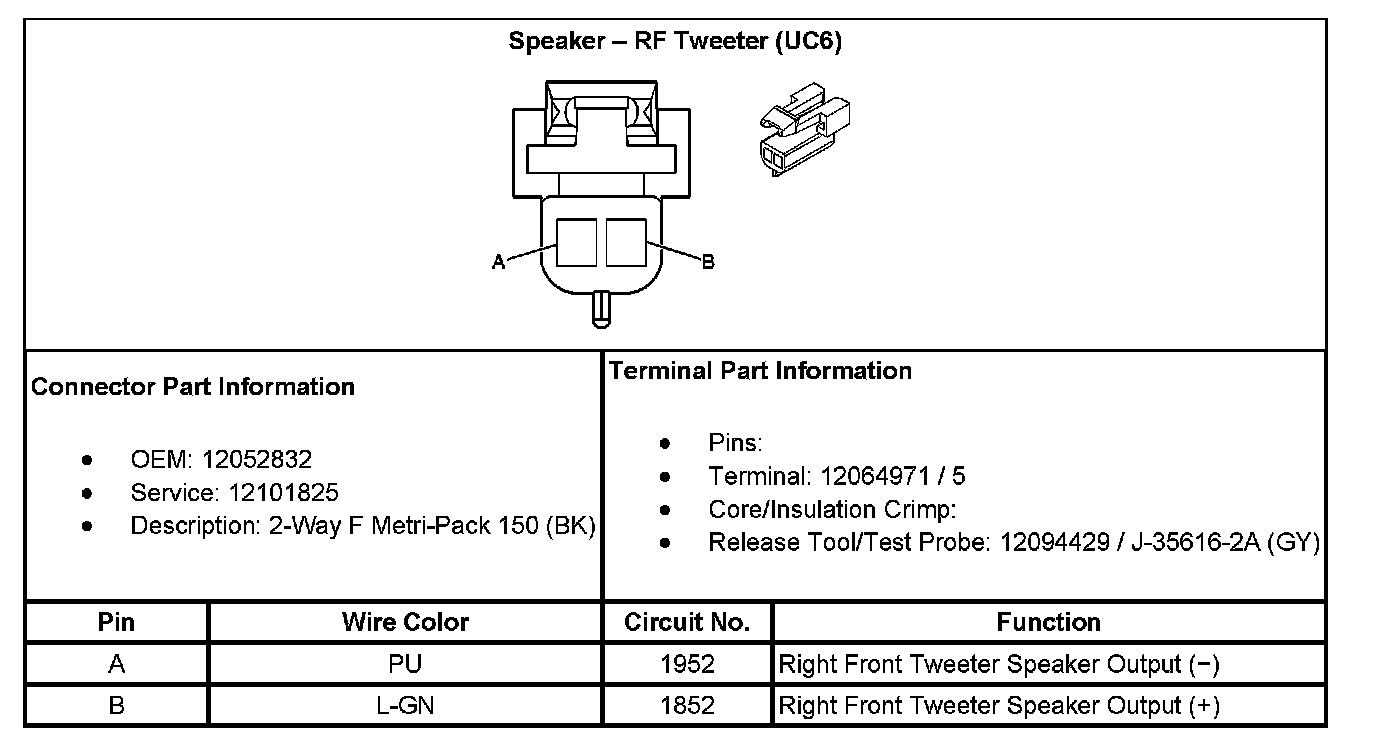

Speaker - RF Tweeter (With RPO Code UC6):



Speaker - RF Tweeter (With RPO Code UB0):
