Front Door: Adjustments

Front Side Door Adjustment

1. Loosen the door hinge bolts and adjust by moving the door:

* Upward and downward
* Forward and rearward
* Inward or outward

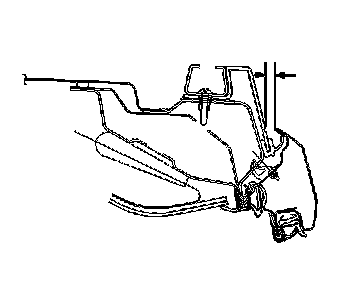

2. Adjust the front door to fender gap to 5 mm (0.2 in).




3. Adjust the front door to rear door gap to 5 mm (0.2 in).




4. Adjust the front door to rocker panel gap to 5 mm (0.2 in).




5. Adjust the front door to roof gap to 8.6 mm (0.33 in).

Notice: Refer to Fastener Notice.

6. When proper adjustment specifications are set:

Tighten the hinge bolts to 25 N.m (18 lb ft).
