Locks: Locations

Vehicle Access Component Views

Driver Door




1 - Driver Door
2 - Outside Rearview Mirror
3 - Memory/Heated Seat Switch
4 - Driver Door Module (DDM) Connector - C5
5 - Driver Door Module (DDM)
6 - Fuse Block - I/P - C3
7 - Speaker - LF Door
8 - Window Motor - Driver
9 - Door Courtesy Lamp - LF
10 - Door Latch Assembly - Driver
11 - Door Lock Cylinder

Passenger Door




1 - Passenger Door
2 - Outside Rearview Mirror
3 - Passenger Door Module (PDM)
4 - Door Latch Assembly - Passenger
5 - Door Courtesy Lamp - RF
6 - Window Motor - Passenger
7 - Speaker - RF Door
8 - Junction Block - I/P - C2
9 - Junction Block - I/P - C7
10 - Heated Seat Switch

Left Rear Door




1 - Door Latch Assembly - LR
2 - Window Motor - LR
3 - Window Switch - LR
4 - C310
5 - Speaker - LR
6 - Door Courtesy Lamp - LR

Right Rear Door




1 - Window Motor - RR
2 - Door Latch Assembly - RR
3 - Door Courtesy Lamp - RR
4 - Speaker - RR
5 - C390
6 - Window Switch - RR

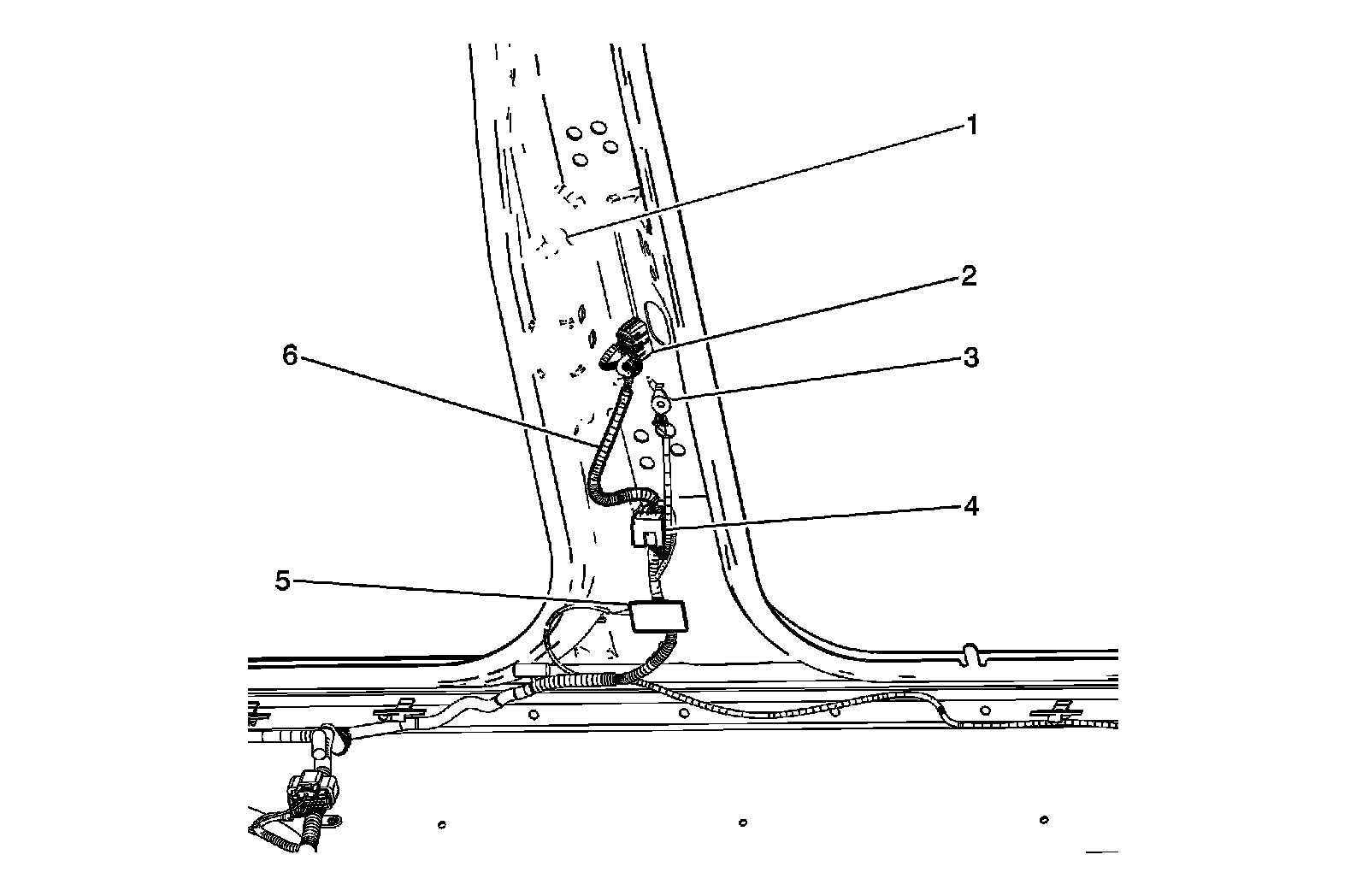

Right B-Pillar




1 - Right B-Pillar
2 - C390
3 - G306
4 - Liftgate Lock Relay (Except SUT)
5 - Courtesy Lamp - Right B-Pillar
6 - Body Harness

Liftgate (Except SUT)




1 - Center High Mounted Stop Lamp (CHMSL) Connector
2 - Rear Window Defogger Grid Connector
3 - Rear Window Defogger Grid Connector
4 - Splice S900
5 - Rear Window Wiper Module - w/Motor
6 - Door Lock Actuator - Liftgate
7 - Liftgate Ajar Switch - Left
8 - Liftgate Ajar Switch - Right
9 - Splice S902
10 - Splice S901
