Ignition Coil

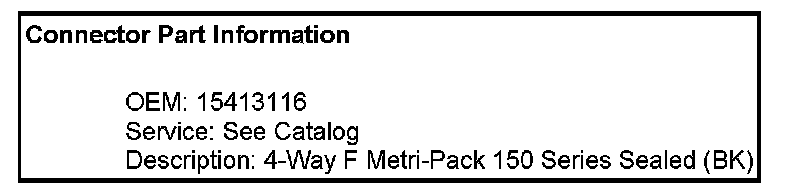

Engine Controls Connector End Views

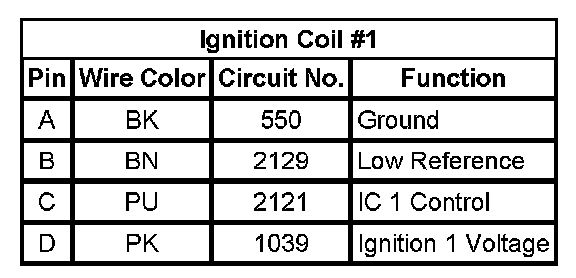

Ignition Coil #1














Ignition Coil #2














Ignition Coil #3














Ignition Coil #4














Ignition Coil #5

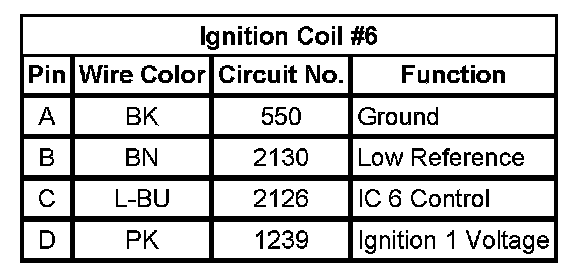

Ignition Coil #6














Ignition Coil #7














Ignition Coil #8
