Turn Signal Lamp

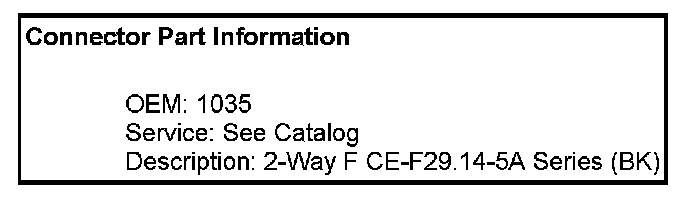

Lighting Systems Connector End Views

Park/Turn Signal Lamp - LF














Park/Turn Signal Lamp - RF














Tail/Stop and Turn Signal Lamp - Left (SUT)

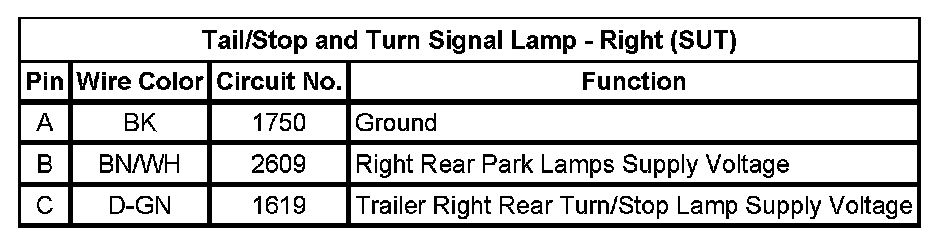

Tail/Stop and Turn Signal Lamp - Right (SUT)














Turn Signal Lamp - LR














Turn Signal Lamp - RR
