C148

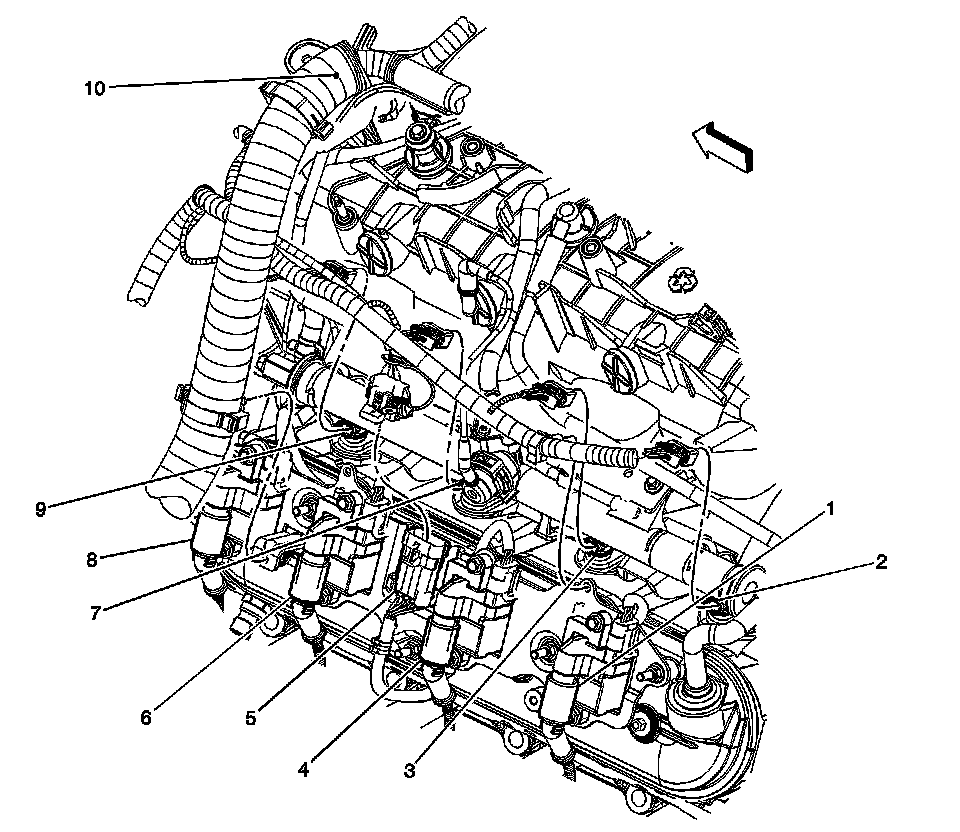

Harness Routing Views

C148




1 - Ignition Coil 7
2 - Fuel Injector 7
3 - Fuel Injector 5
4 - Ignition Coil 5
5 - Inline C148
6 - Ignition Coil 3
7 - Fuel Injector 3
8 - Ignition Coil 1
9 - Fuel Injector 1
10 - Engine Harness
