Interior Lights Dimming Diagram

Interior Lights Dimming Schematics

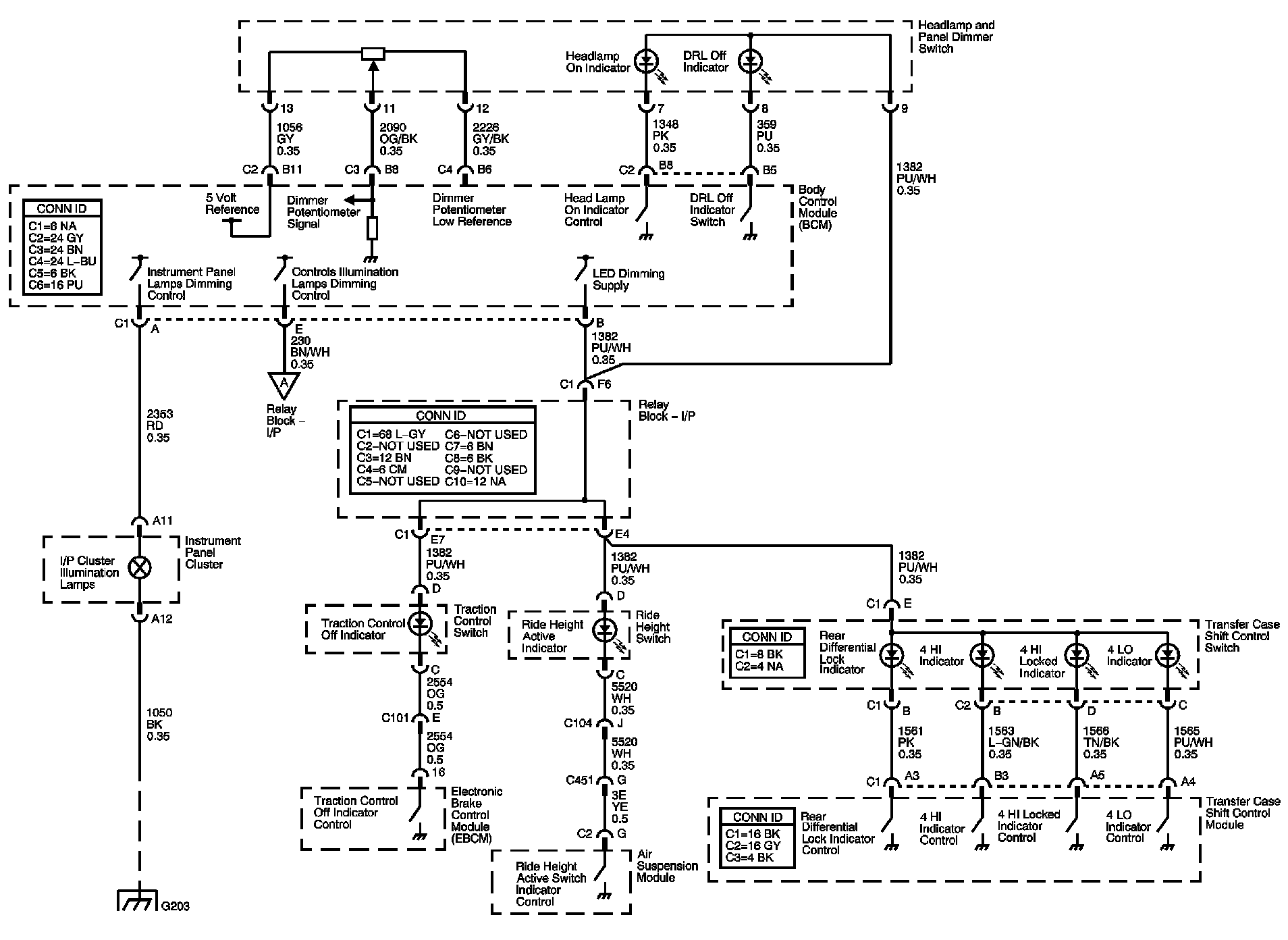

Instrument Panel Dimming - 1 of 5 and LED Dimming - 1 of 2

Interior Lights Dimming Diagrams:

Instrument Panel Dimming - 2 of 5

Interior Lights Dimming Diagrams:

Instrument Panel Dimming - 3 of 5

Interior Lights Dimming Diagrams:

Instrument Panel Dimming - 4 of 5

Interior Lights Dimming Diagrams:

Instrument Panel Dimming - 5 of 5 and LED Dimming - 2 of 2

Interior Lights Dimming Diagrams:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
