Transfer Case

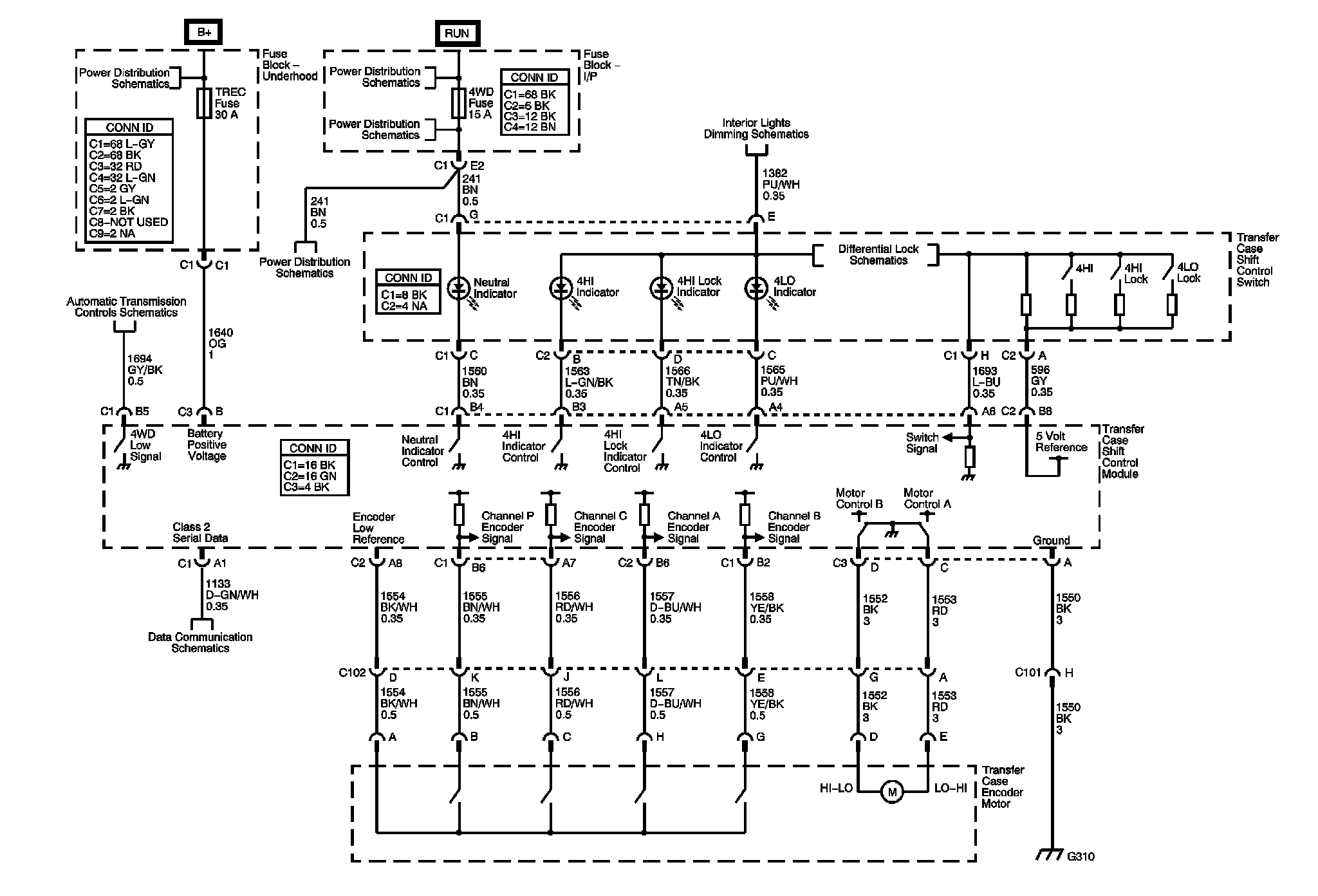

Transfer Case Control Schematics

Transfer Case Control Schematics:

Locations: The location for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
