Forward Lamp Harness to Fuse Block - Underhood



Harness Routing Views

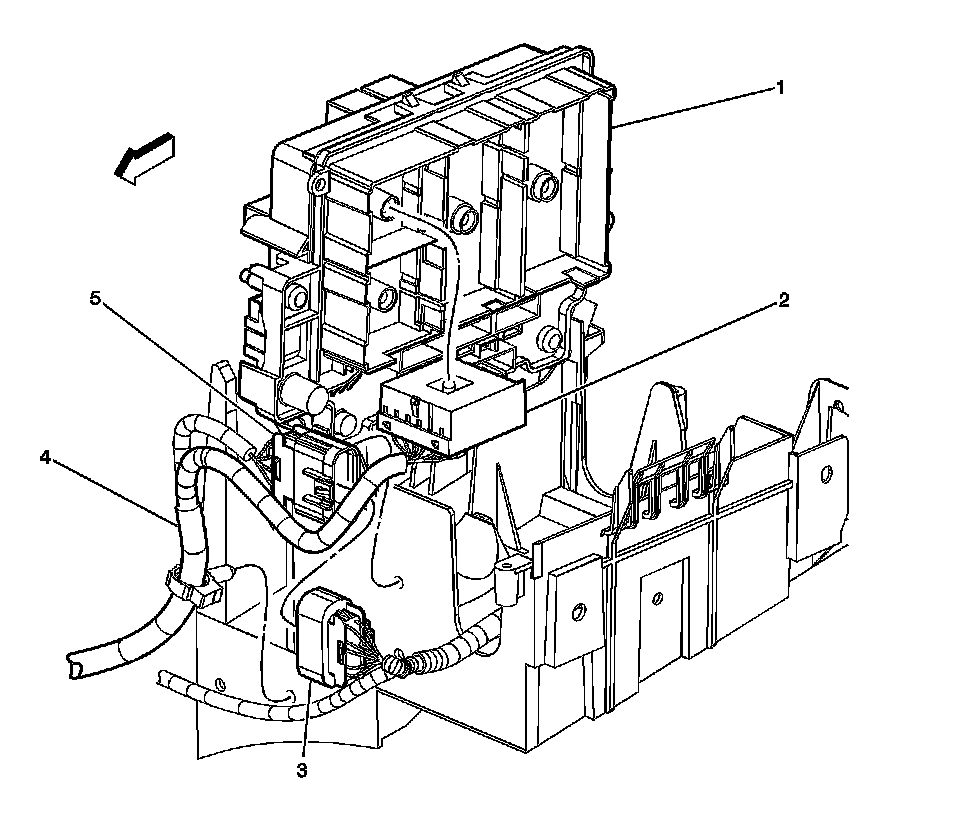

Forward Lamp Harness to Fuse Block - Underhood




1 - Fuse Block - Underhood Center Block
2 - Fuse Block-Underhood-C4 (GRN)
3 - C103-I/P Harness Side
4 - Forward Lamp Harness
5 - C103-Forward Lamp Harness Side
