Exhaust Heat Shield Replacement - Dash Panel

Exhaust Heat Shield Replacement - Dash Panel

Removal Procedure

1. Raise and suitably support the vehicle.
2. Remove the engine protection shield bolts and shield.




3. Remove the exhaust heat shield nuts.

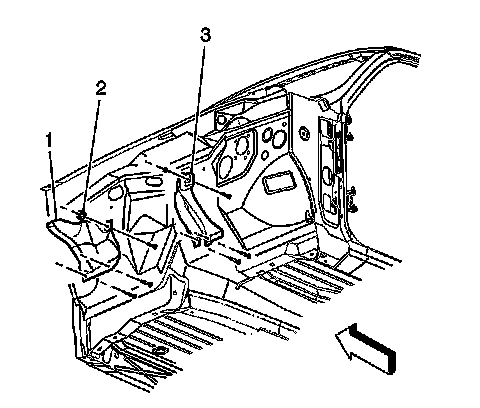

4. Remove the exhaust heat shield from the dash panel studs (1), (3).

Installation Procedure




1. Install the exhaust heat shield to the dash panel studs (1), (3).

Notice: Refer to Fastener Notice.

2. Install the exhaust heat shield nuts.

Tighten the nuts to 9 N.m (80 lb in).

3. Install the engine protection shield and bolts.

Tighten the bolts to 20 N.m (15 lb ft).

4. Lower the vehicle.
