Connector Views



Lighting Systems Connector End Views

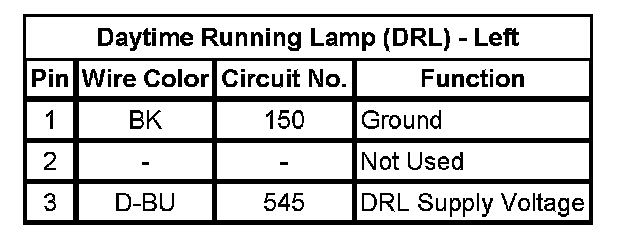

Daytime Running Lamp (DRL) - Left














Daytime Running Lamp (DRL) - Right
