C115

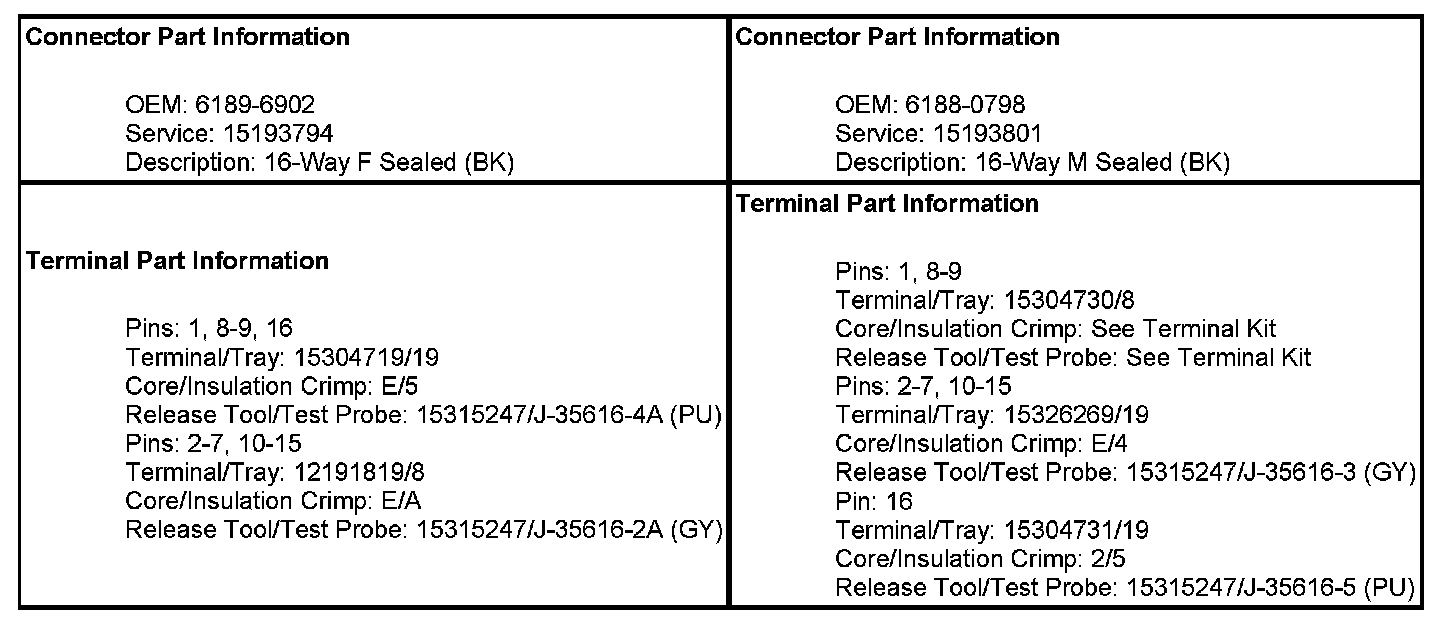

Inline Harness Connector End Views

C115 Forward Lamp Harness to the Body Harness (Domestic)














C115 Forward Lamp Harness to the Body Harness (Export)
