Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Diagrams

Entertainment Systems: Diagrams

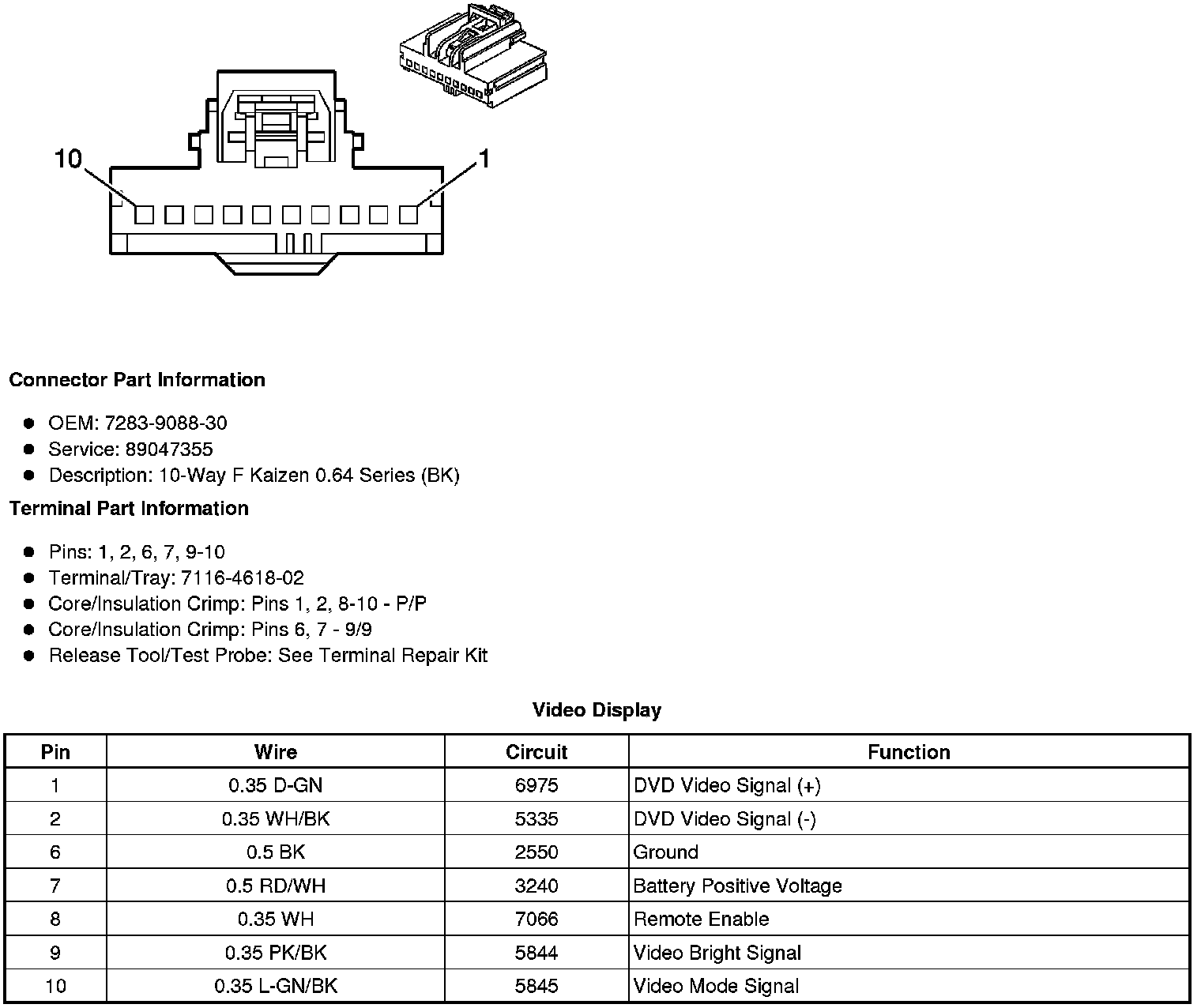

Component Connector End Views

Video Display
