Actuator, Differential Lock
Actuator, Differential Lock

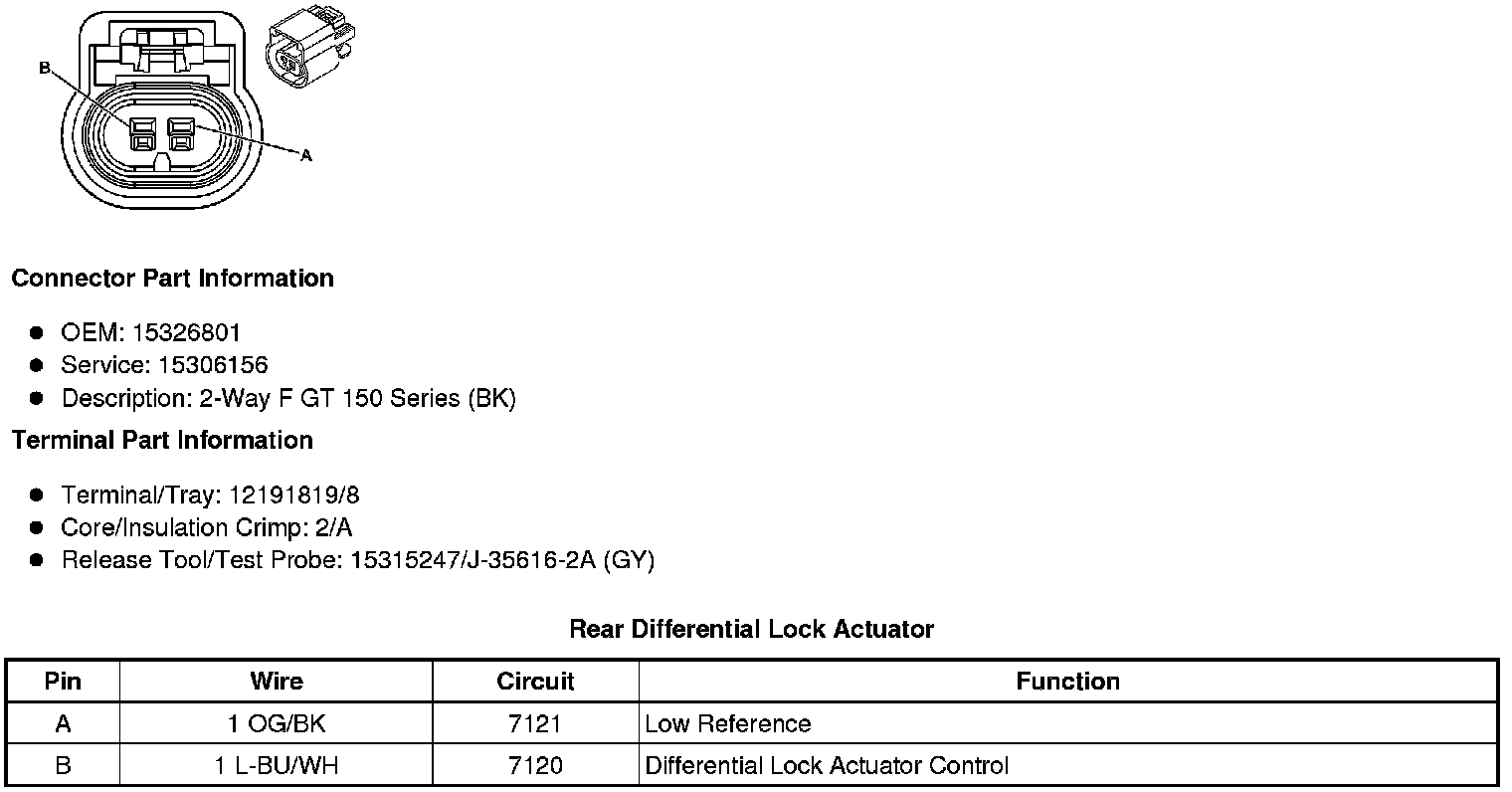

Component Connector End Views
Rear Differential Lock
Actuator
