Ambient Light Sensor
Ambient Light Sensor
Component Connector End Views

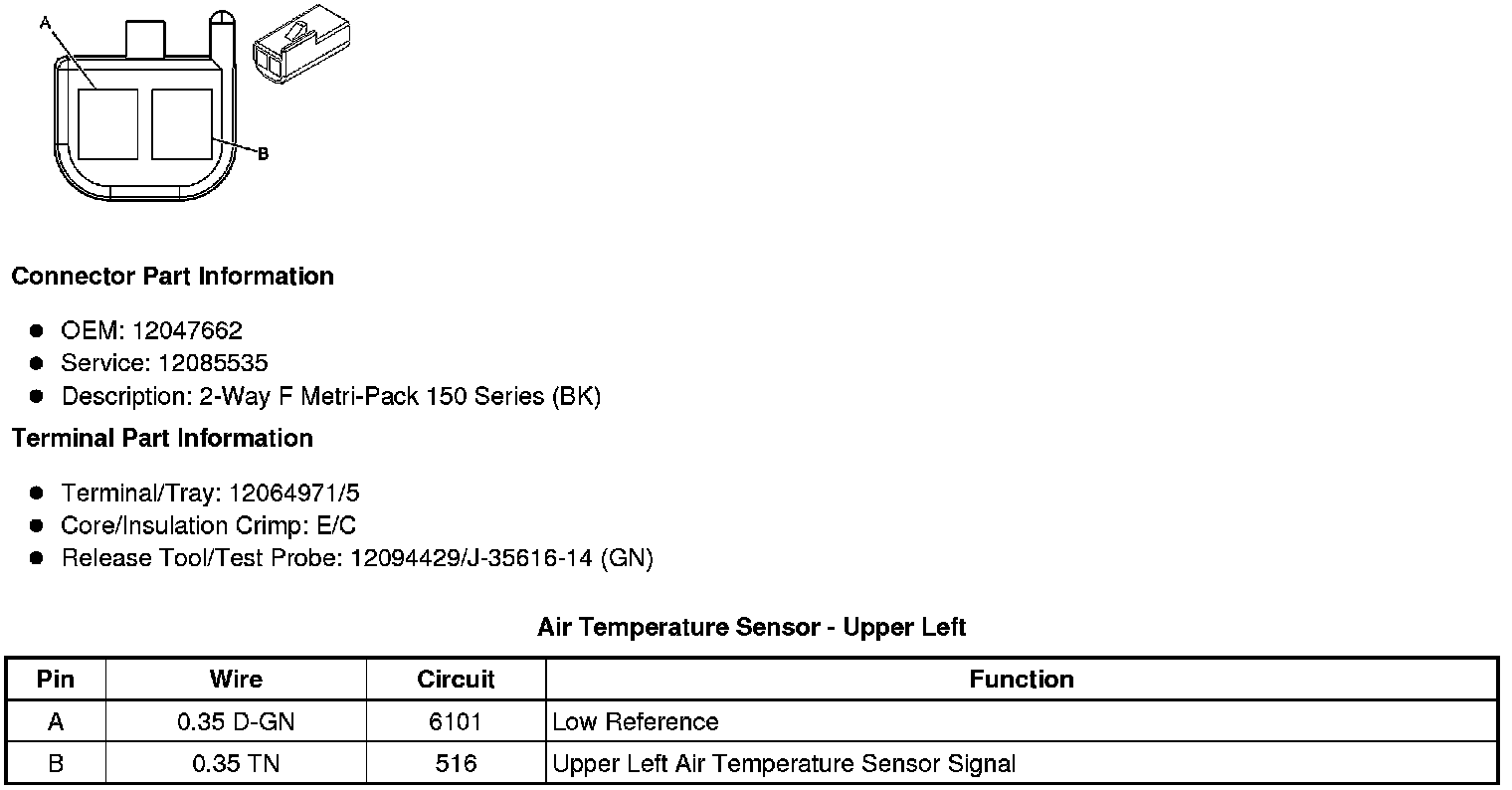

Air Temperature Sensor - Upper Left
