Four Wheel Drive Selector Switch
Four Wheel Drive Selector Switch

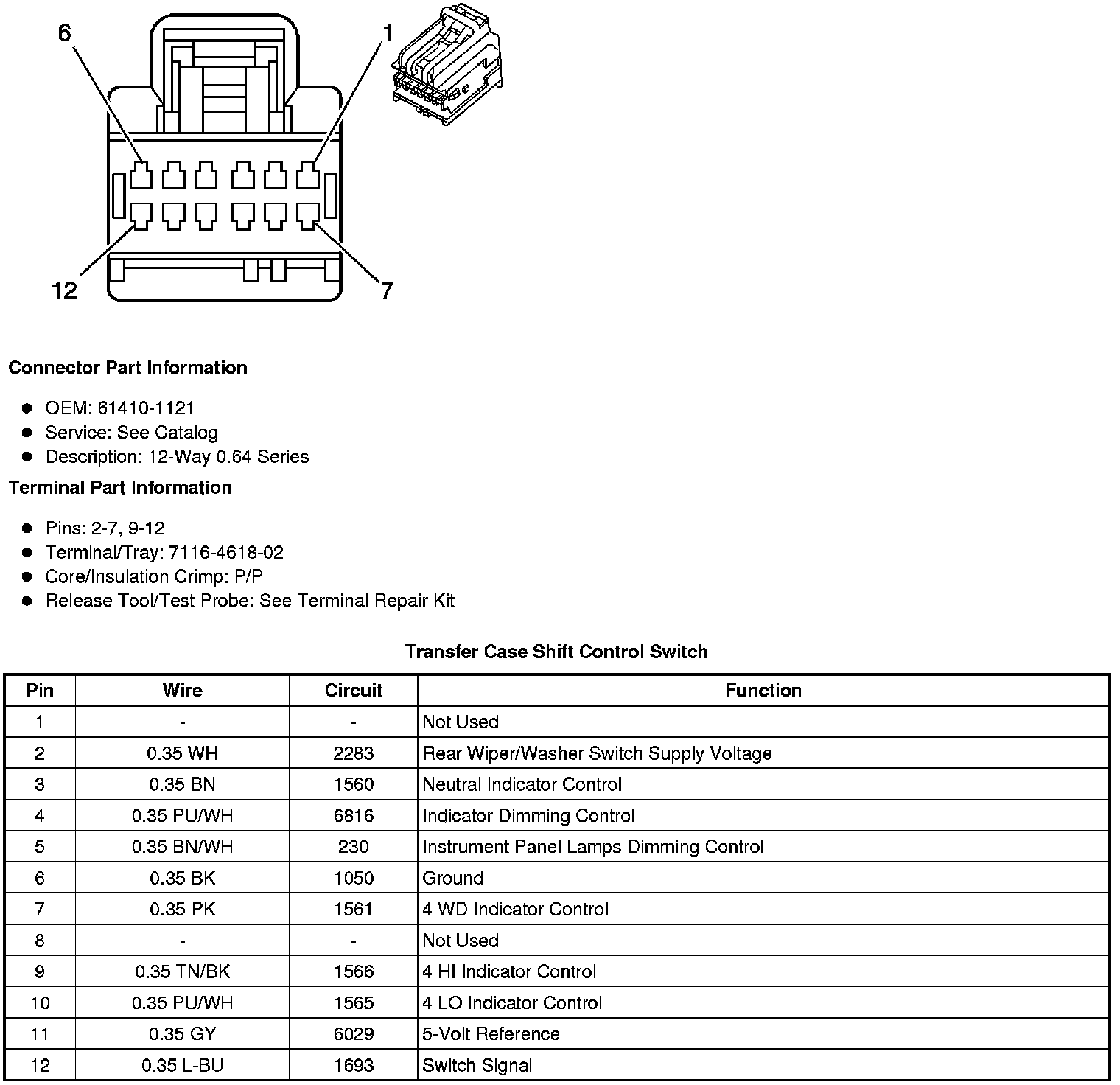

Component Connector End Views
Transfer Case Shift Control Switch
