Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control

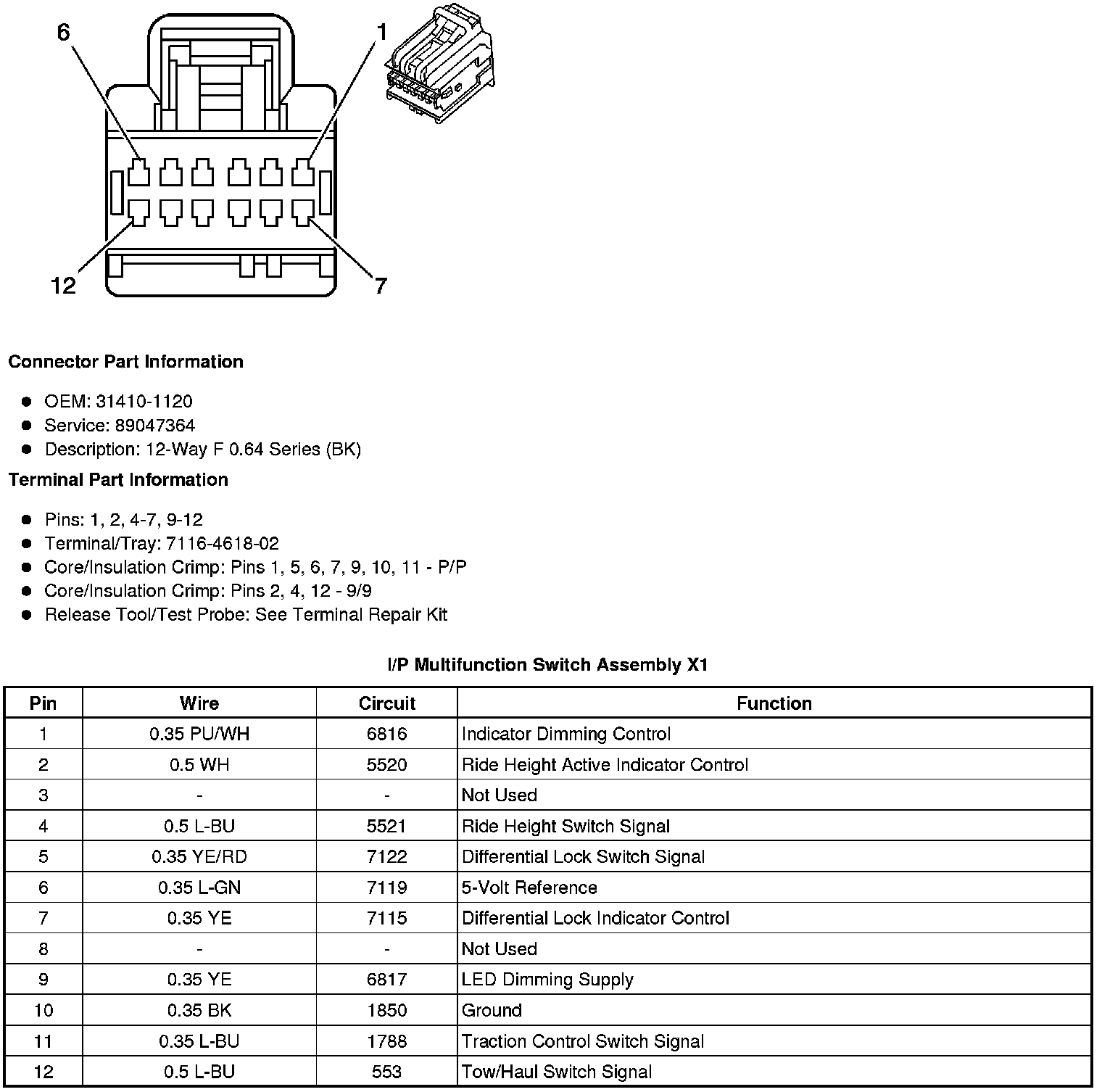

Component Connector End Views
I/P Multifunction Switch Assembly X1
