Suspension Main Relay
Suspension Main Relay

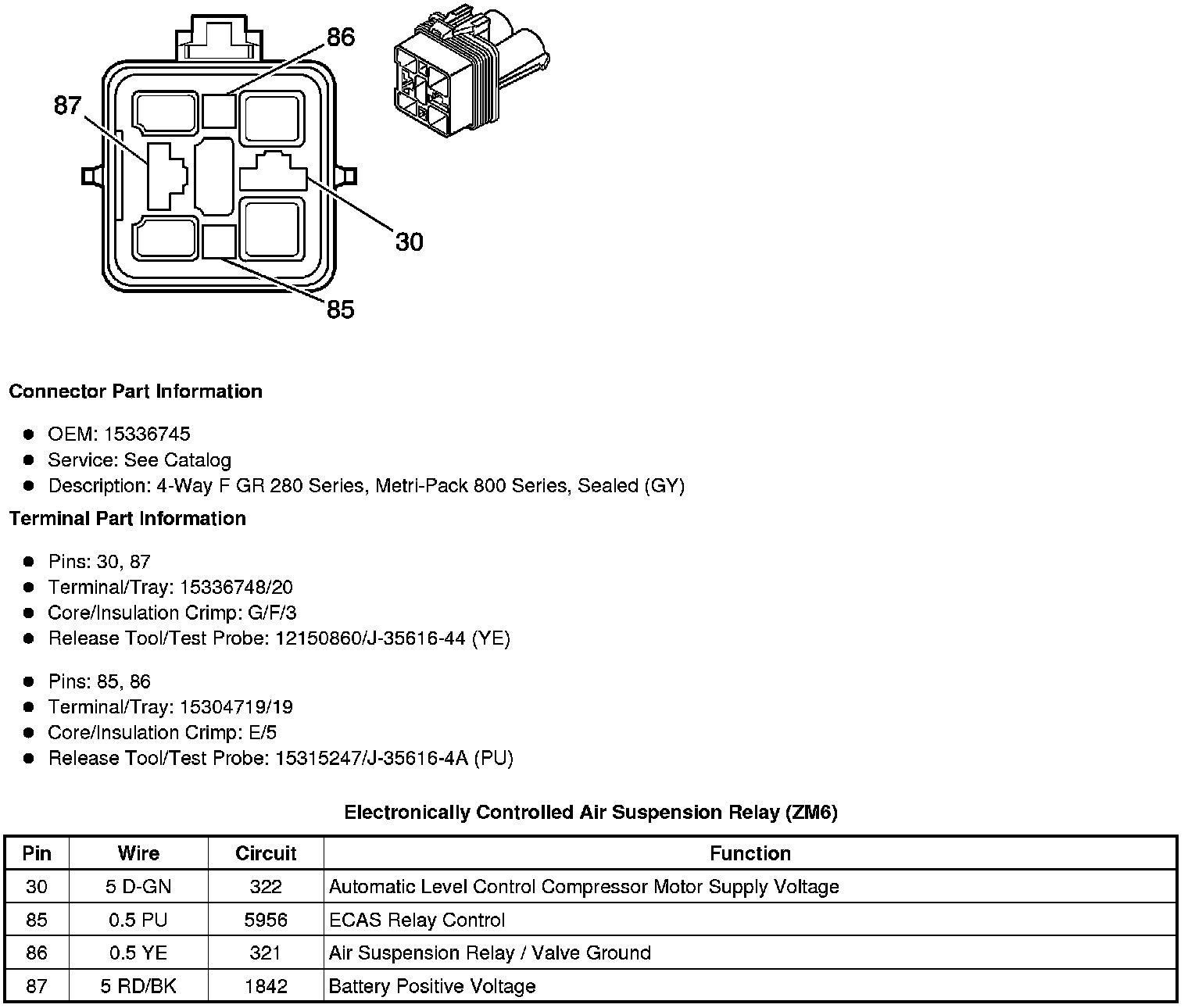

Component Connector End Views
Electronically Controlled Air Suspension Relay (ZM6)
