Windshield Washer Switch
Windshield Washer Switch
Component Connector End Views

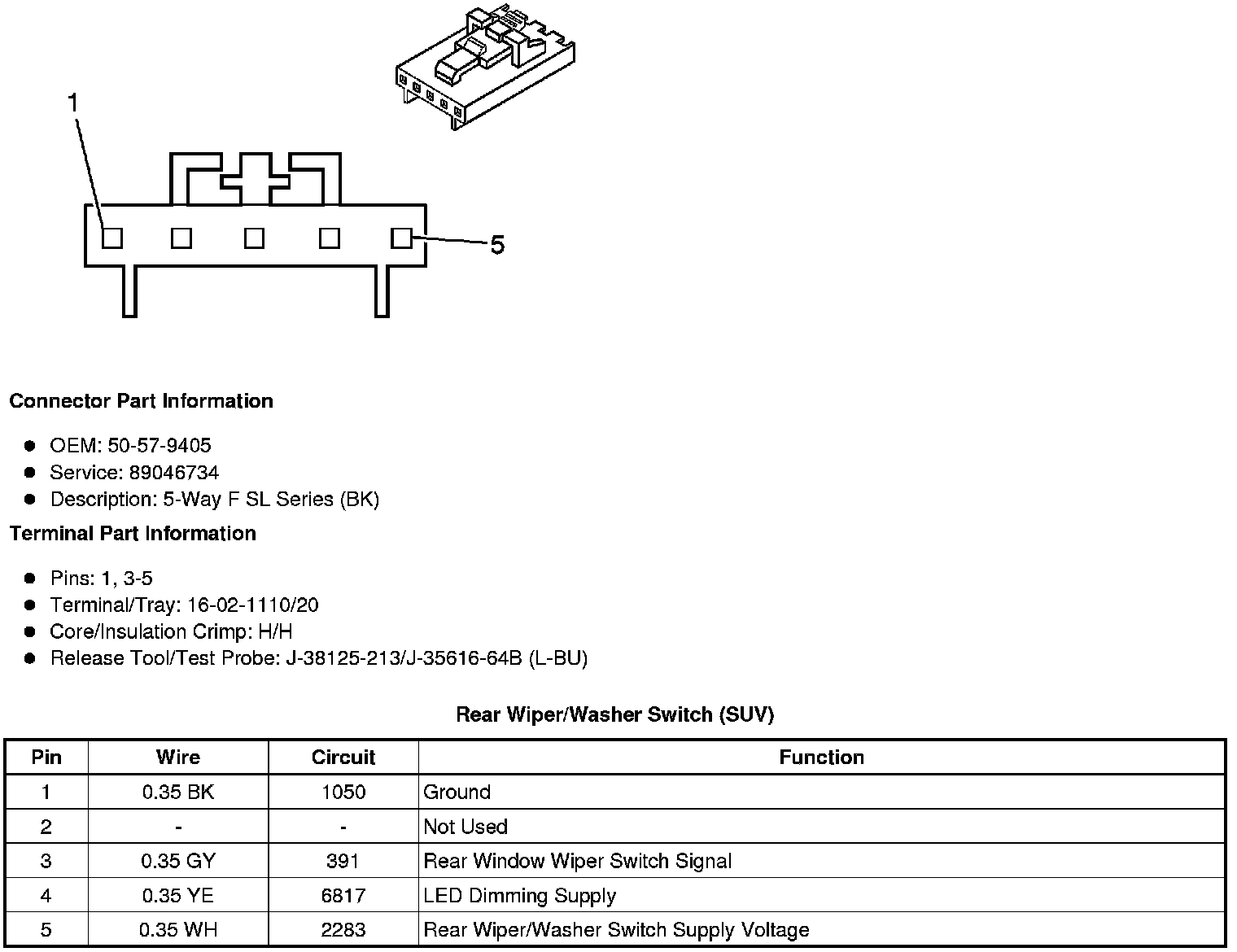

Rear Wiper/Washer Switch (SUV)
