Master Connector List
Master Connector List
Master Electrical Component List
Yaw - X207:

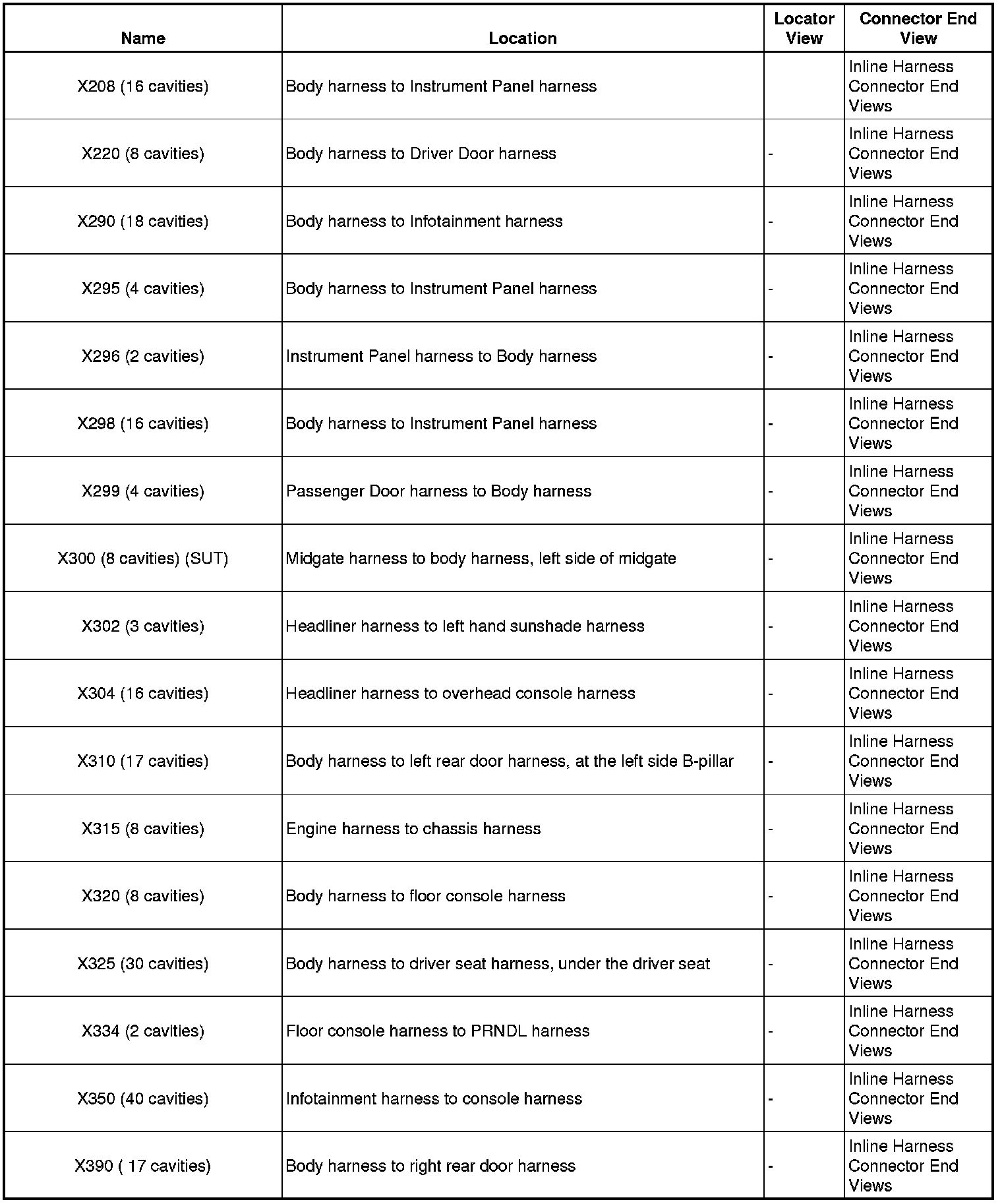

X208 - X390:

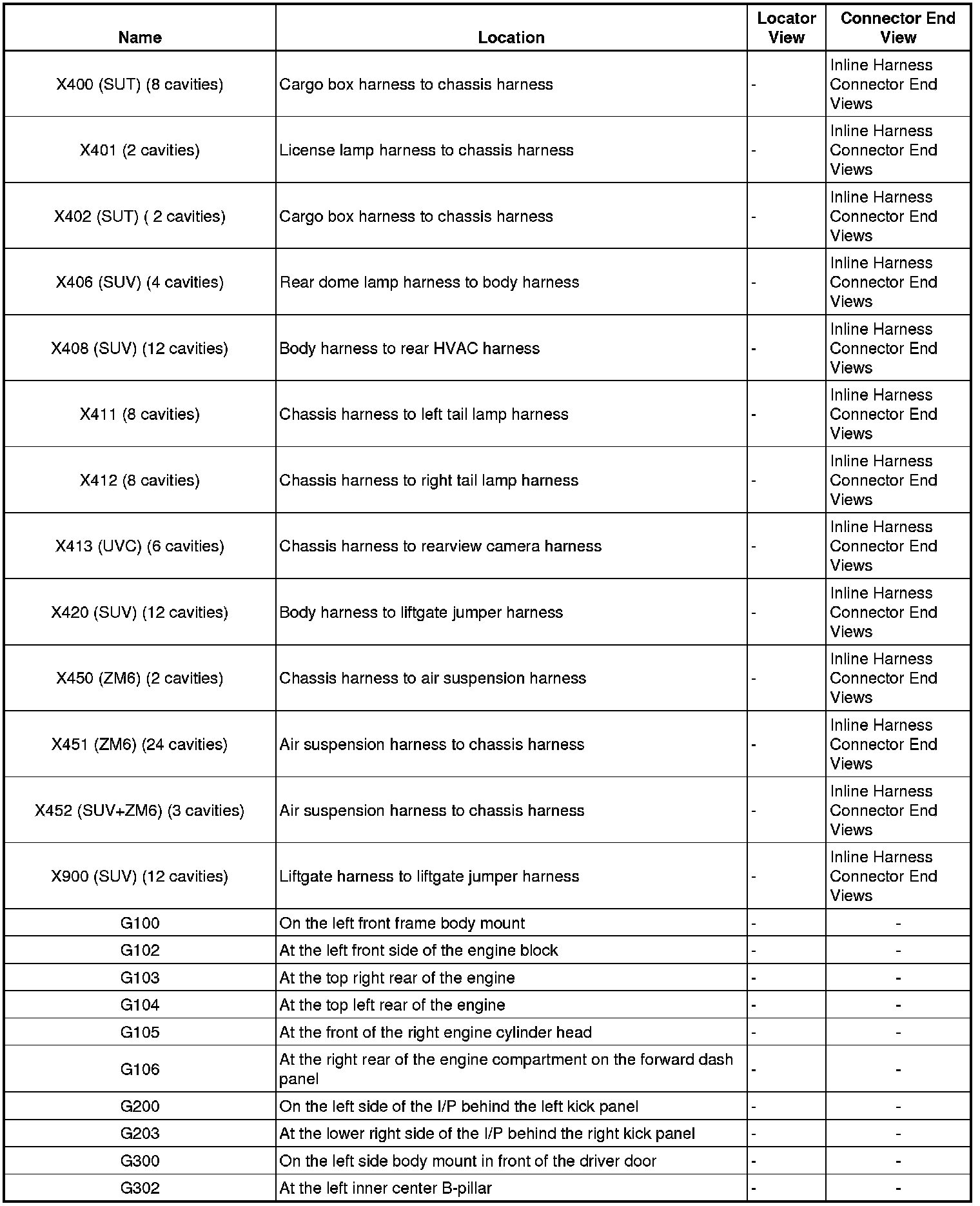

X400 - G302:
