Transfer Case



Transfer Case Control Schematics

Power Ground and Shift Controls

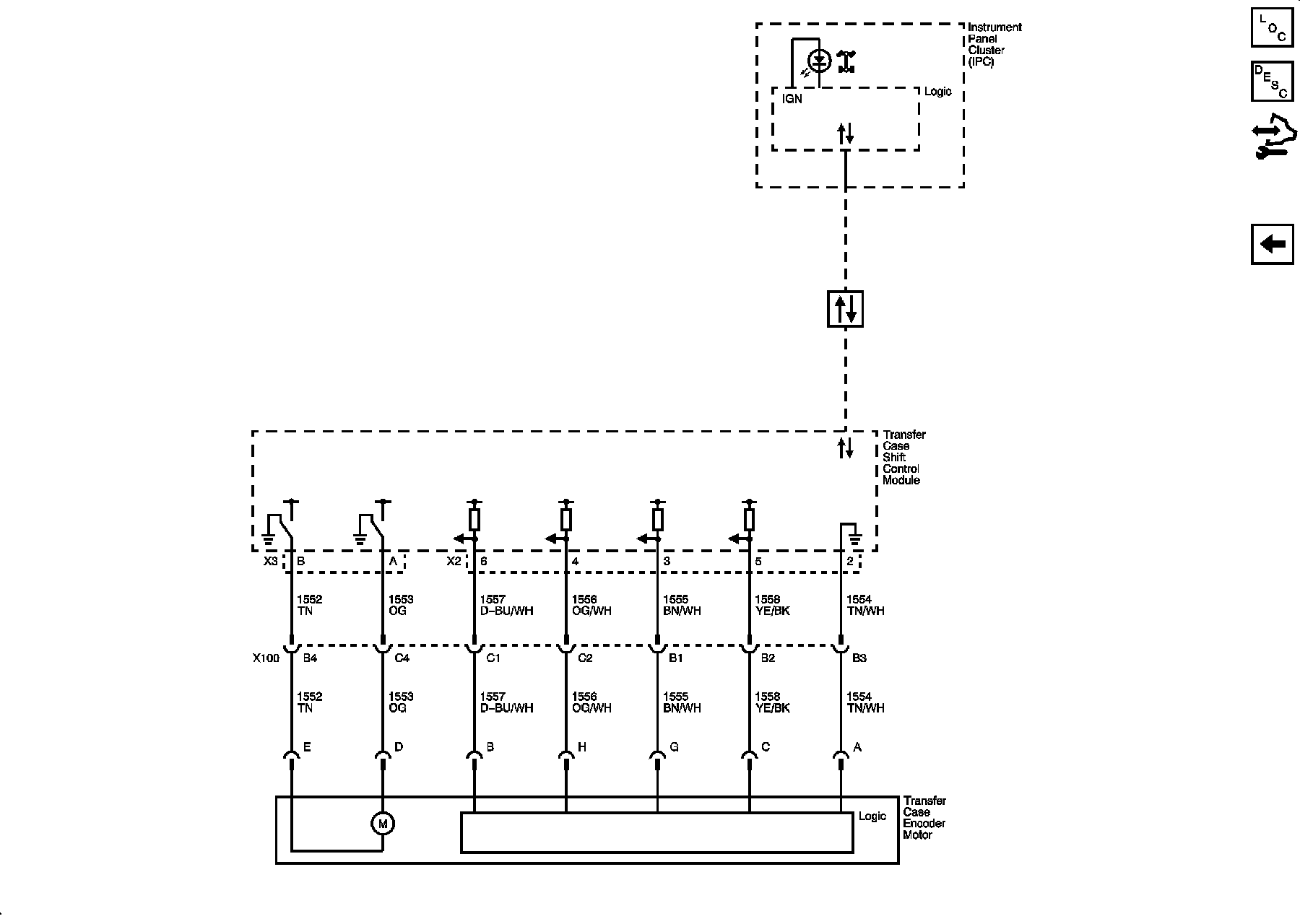

Transfer Case Controls
