Wiper and Washer Systems



Wiper/Washer Schematics

Wiper Controls





Wiper and Washer Motor Control

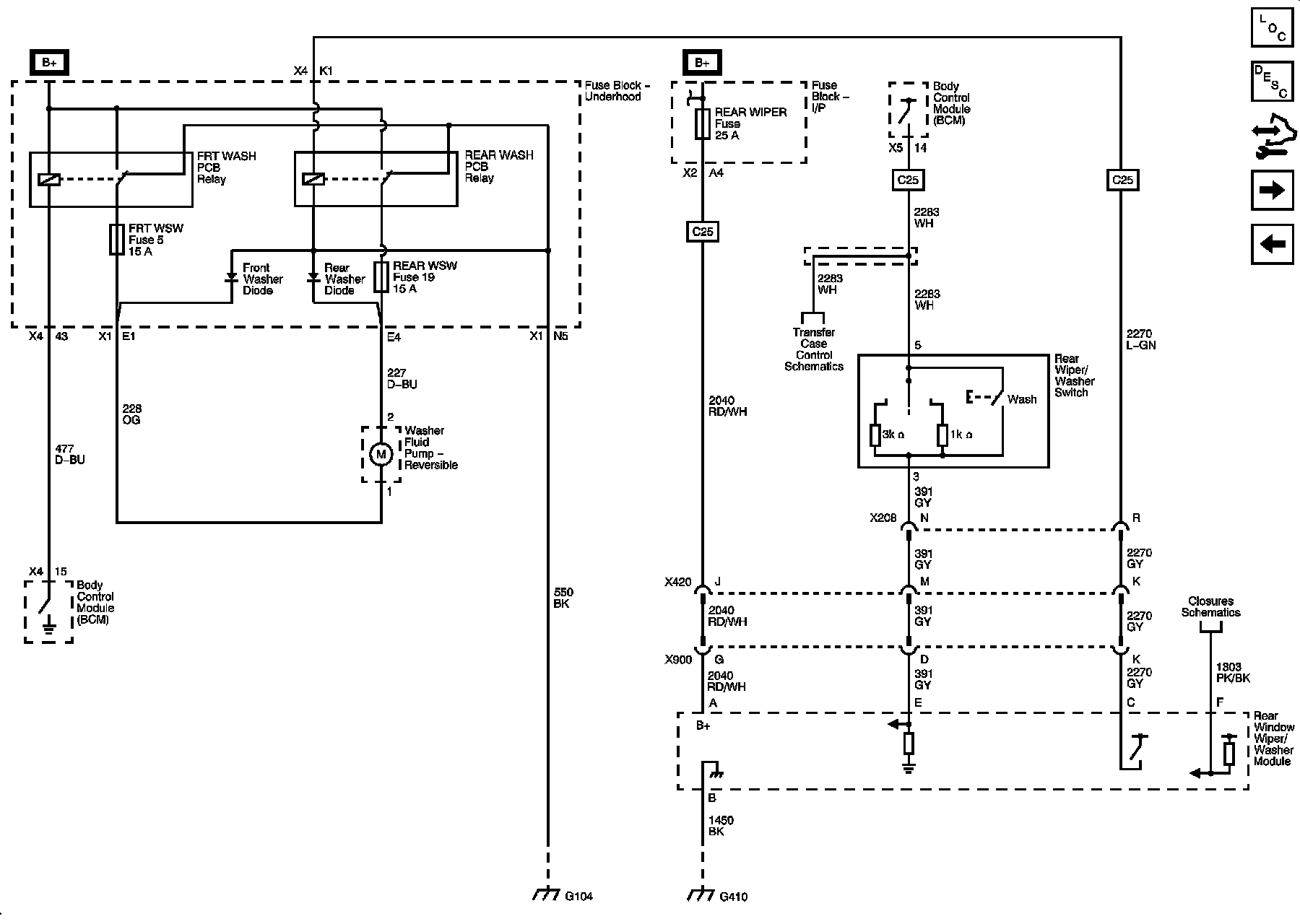

Rear Wiper and Washer

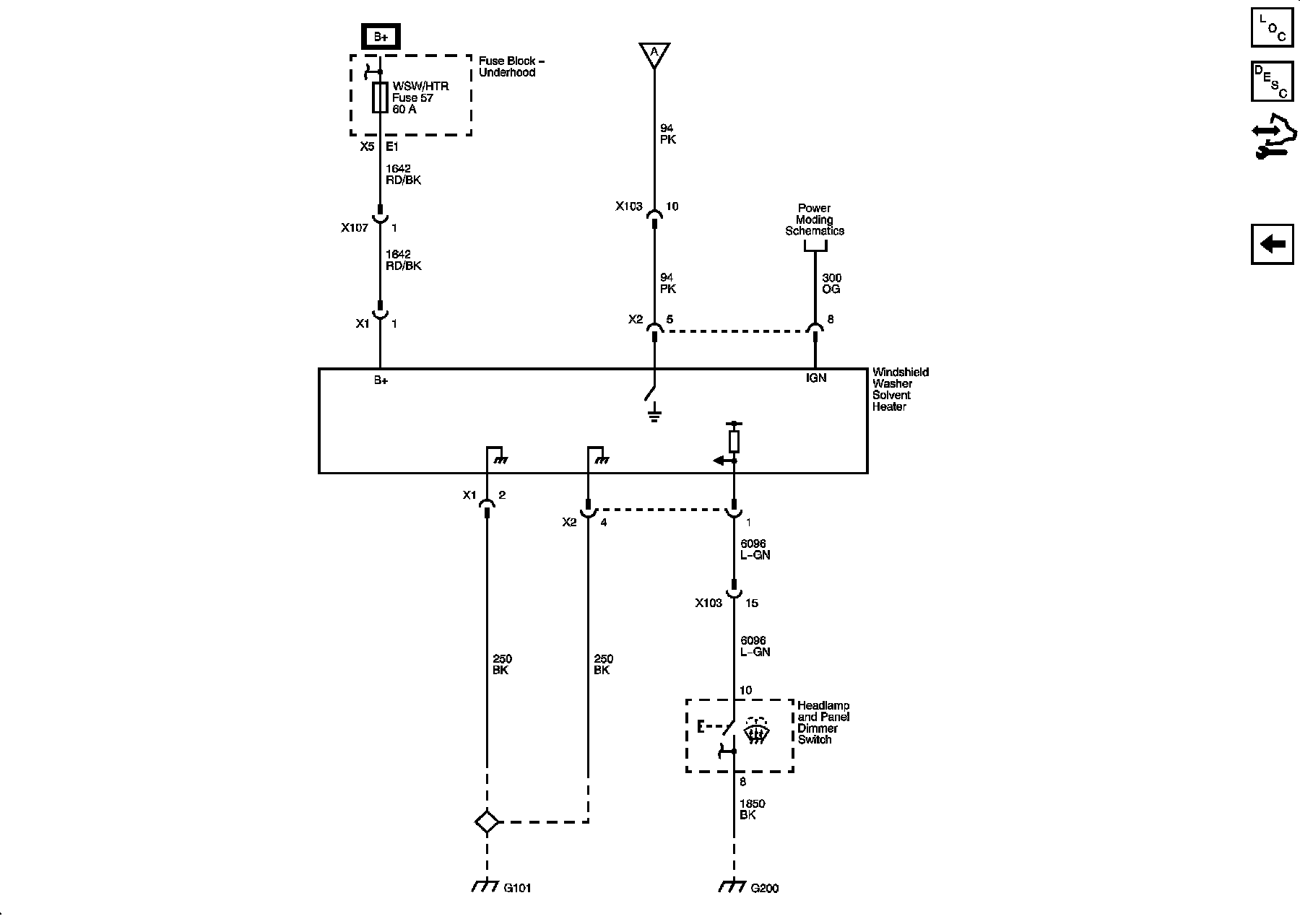

Heated Washer
