Door Component Views

Door Component Views

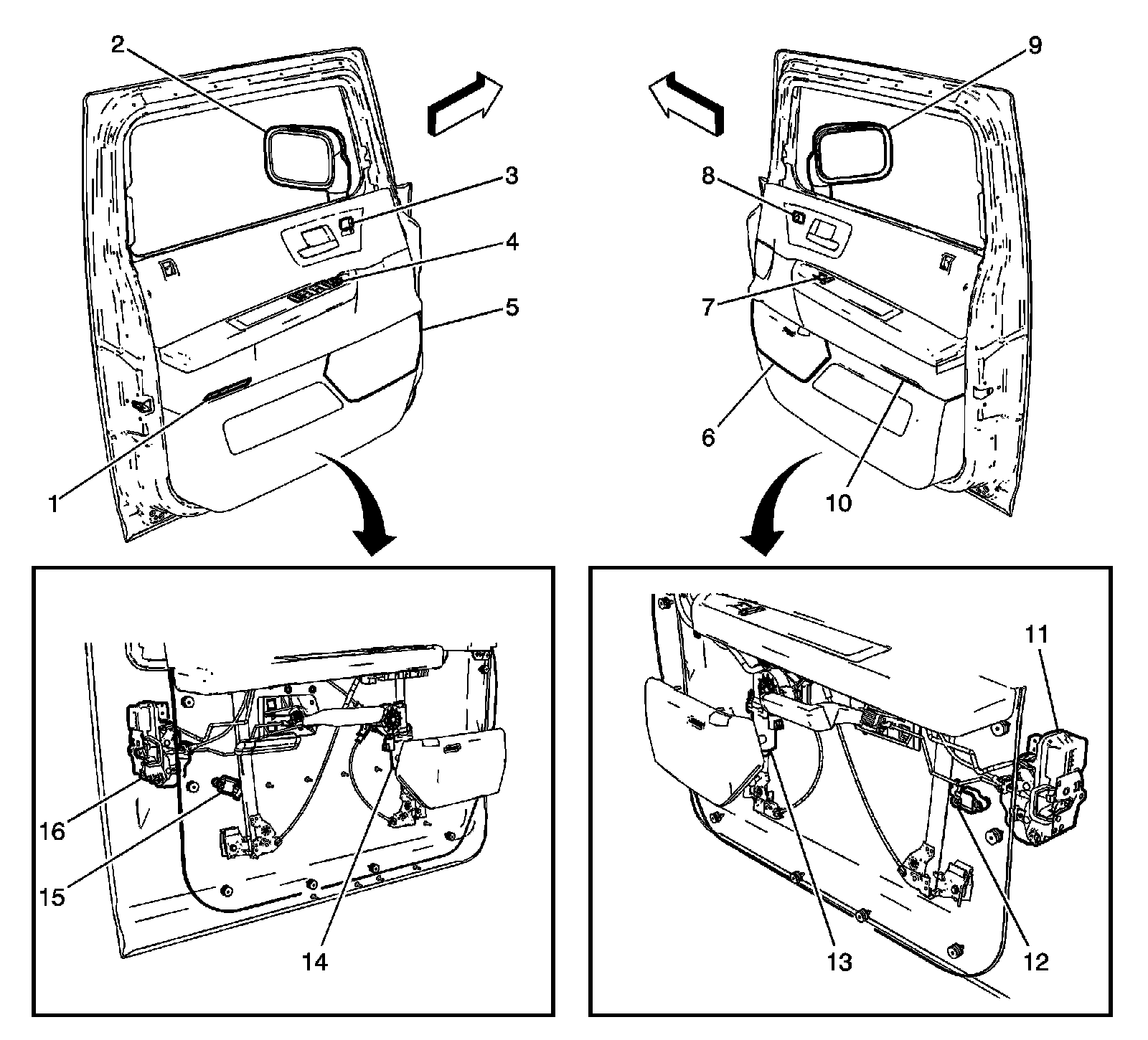

Front Doors




1 - Courtesy Lamp-Driver Door
2 - Outside Rearview Mirror-Driver
3 - Memory/Heated Seat Switch-Driver
4 - Driver Door Module (DDM)
5 - Speaker-LF Door
6 - Speaker-RF Door
7 - Passenger Door Module (PDM)
8 - Heated Seat Switch-Passenger
9 - Outside Rearview Mirror-Passenger
10 - Courtesy Lamp-Front Passenger Door
11 - Door Latch Assembly-Front Passenger
12 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front
13 - Window Motor-Front Passenger Door
14 - Window Motor-Driver Door
15 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front
16 - Door Latch Assembly-Driver Door

Rear Passenger Doors




1 - Courtesy Lamp-LR Door
2 - Window Switch-LR
3 - Speaker-LR Door
4 - Speaker-RR Door
5 - Widow Switch-RR Door
6 - Courtesy Lamp-RR Door
7 - Door Latch Assembly-RR Door
8 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
9 - Window Motor-RR Door
10 - Window Motor-LR Door
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear
12 - Door Latch Assembly-LR Door

Midgate Components (SUT)




1 - Midgate Latch-Right
2 - Midgate Latch Release Switch-Right
3 - Midgate Latch Release Switch-Left
4 - Midgate Latch-Left
5 - Midgate Control Module

Liftgate (Except SUT)




1 - Center High Mounted Stop Lamp (CHMSL) Connector
2 - Rear Window Defogger Grid Connector
3 - Rear Window Defogger Grid Connector
4 - Splice S900
5 - Rear Window Wiper Module - w/Motor
6 - Door Lock Actuator - Liftgate
7 - Liftgate Ajar Switch - Left
8 - Liftgate Ajar Switch - Right
9 - Splice S902
10 - Splice S901
