Master Splice List



Master Electrical Component List

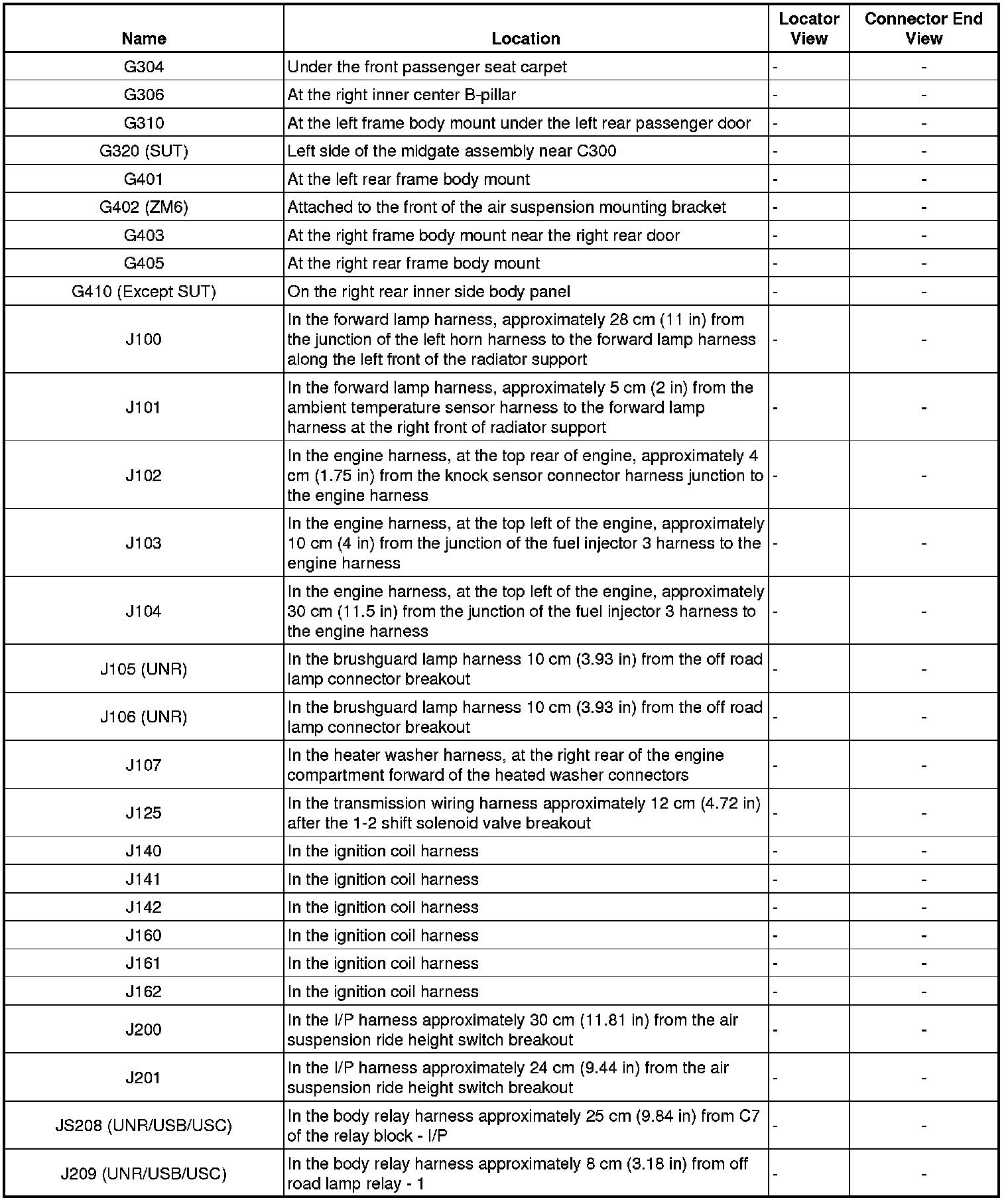

G304 - J209:

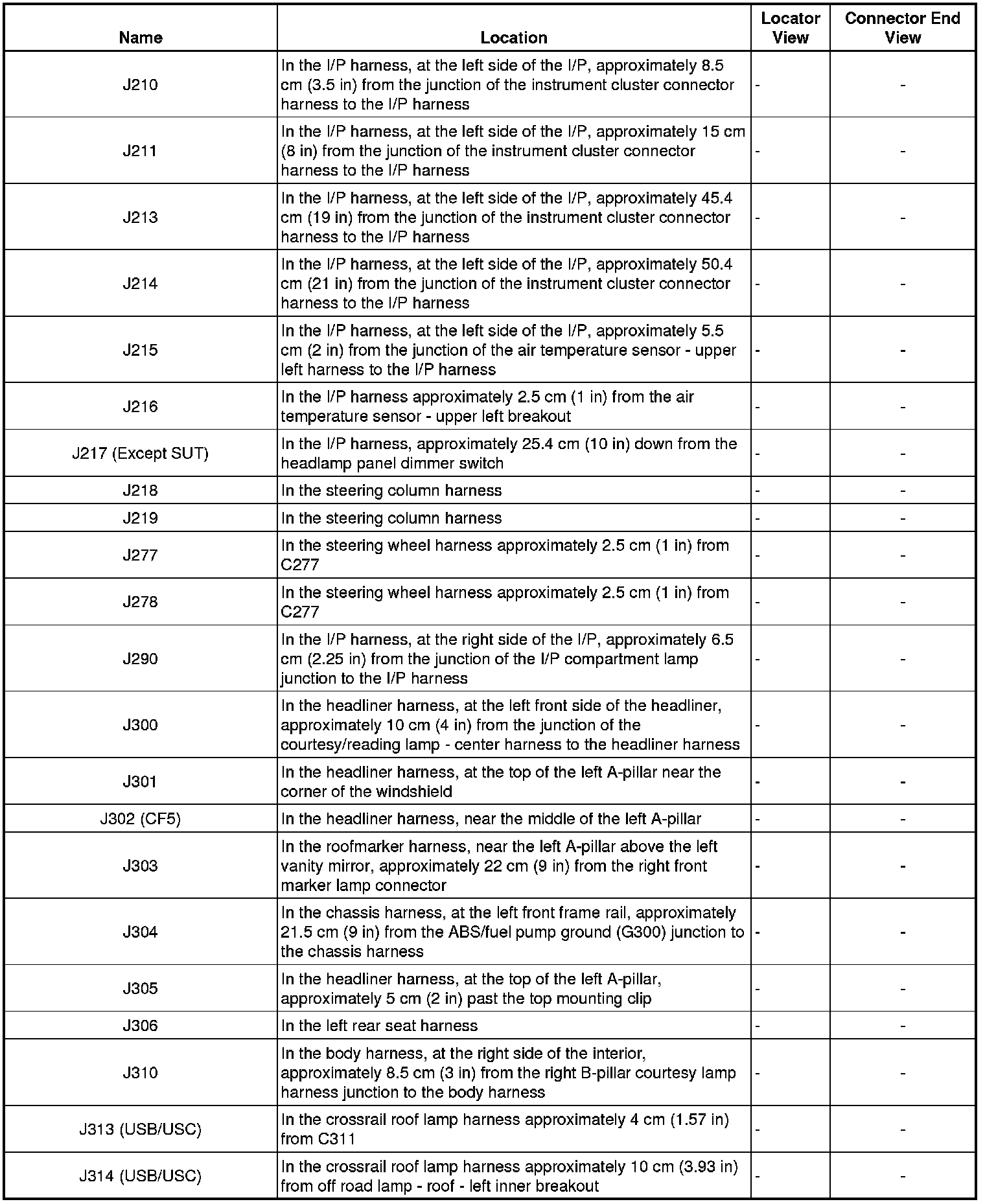

J210 - J314:

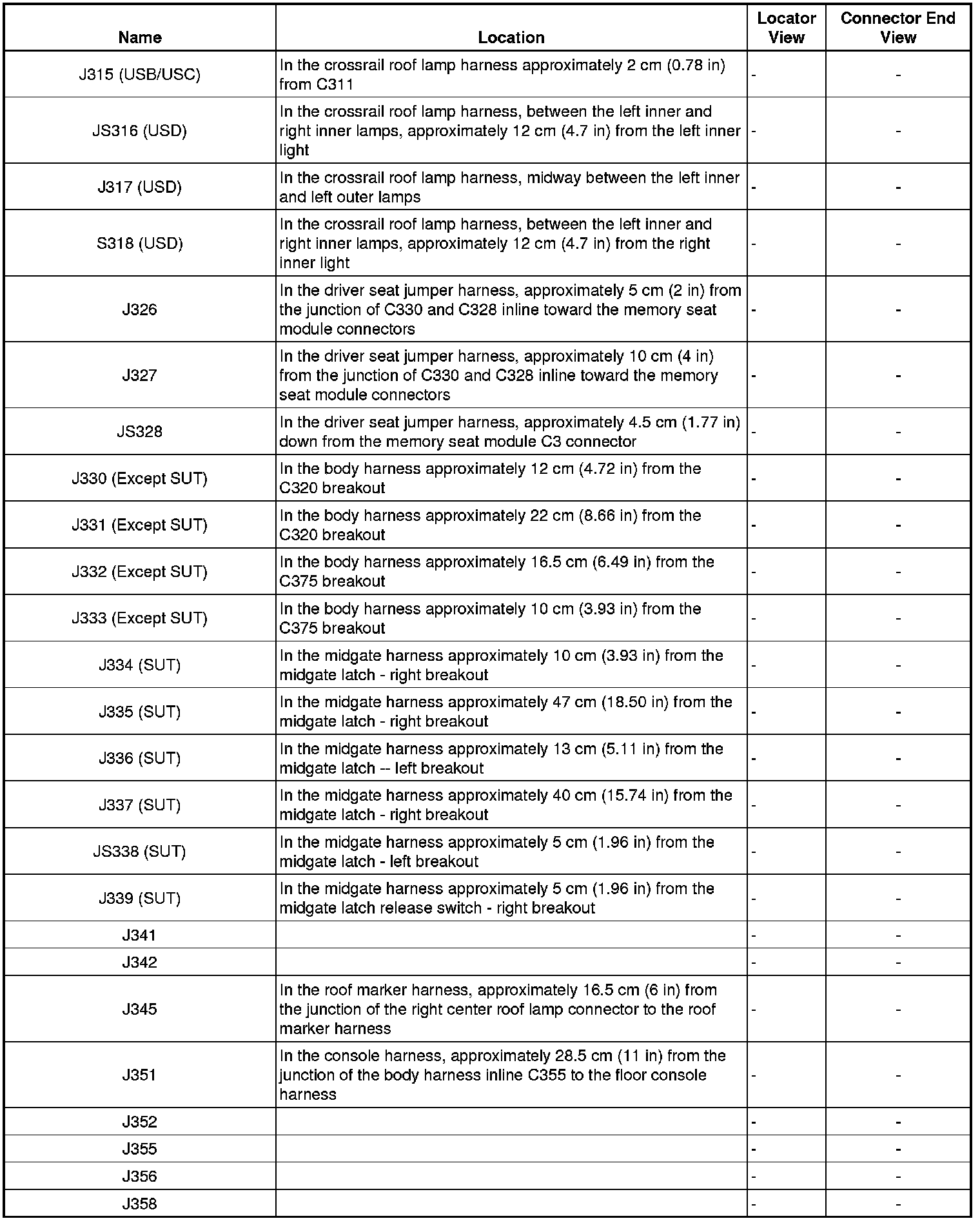

J315 - J358:

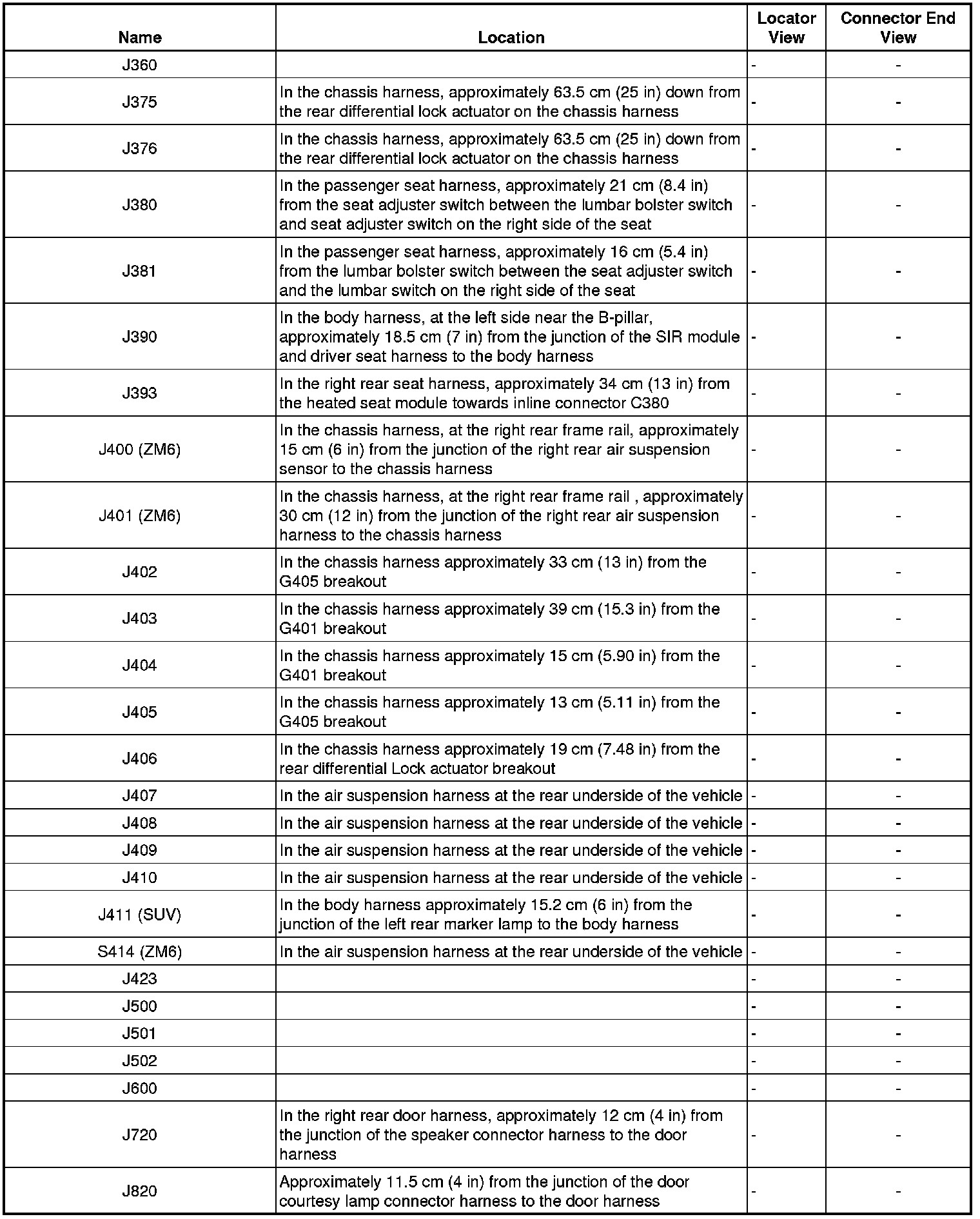

J360 - J820:

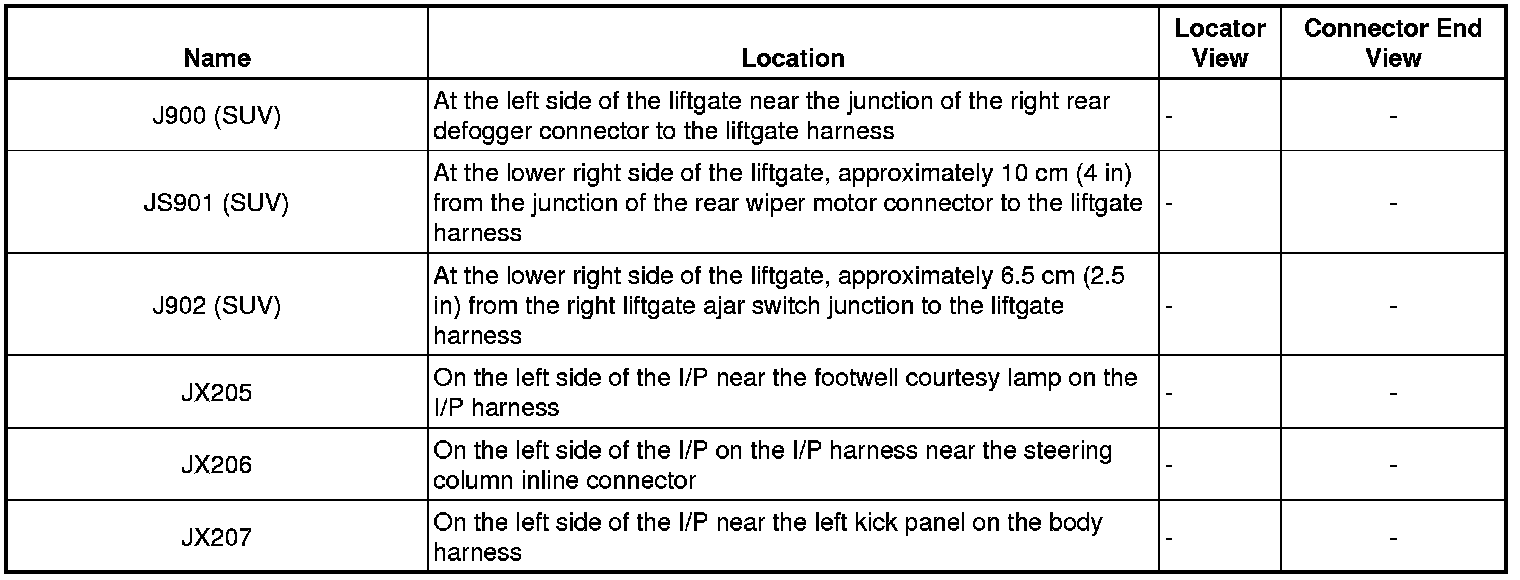

J900 - JX207:
