Interior - Headliner Loose, Sags in Center
Bulletin No.: 07-08-67-004ADate: August 09, 2007
TECHNICAL
Subject:
Headliner Loose, Sags in Center (Apply Adhesive and Install New Push-Pins)
Models:
2008 HUMMER H2 SUV
Supercede:
This bulletin is being revised to correct the affected models. In addition, it is recommended that new push-pins are used to reinstall the headliner. Please discard Corporate Bulletin Number 07-08-67-004 (Section 08 - Body and Accessories).
Condition

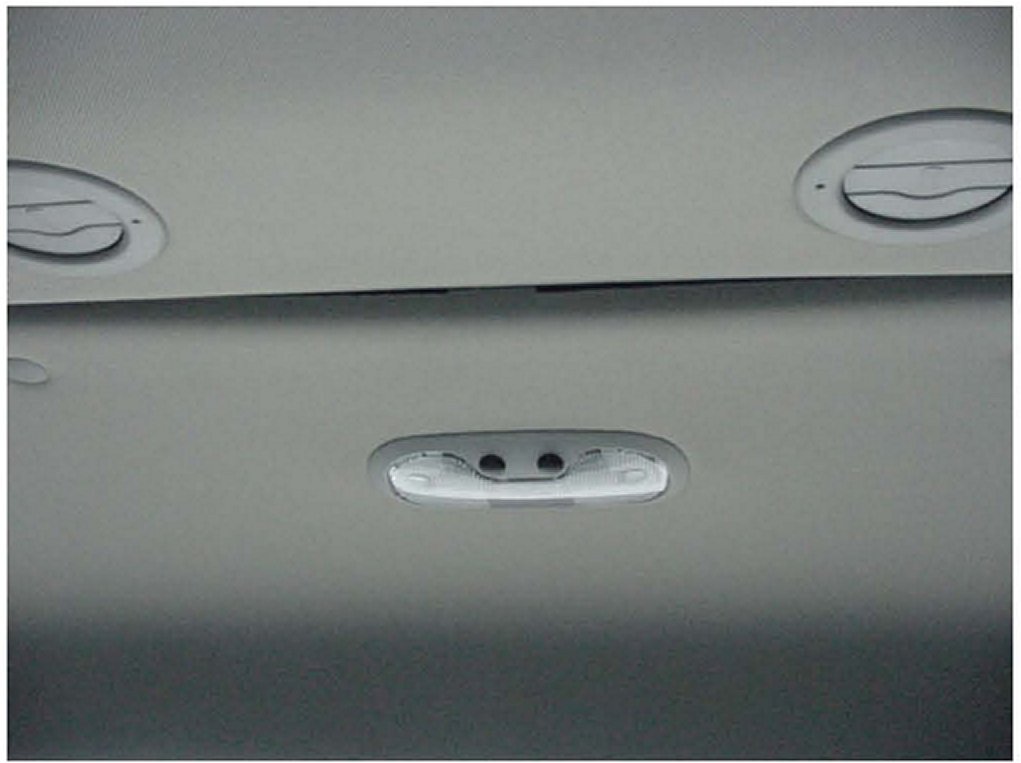

Some customers may comment on a sag in the center of the headliner. Refer to the diagram.
Correction
Use the following procedure to repair this condition:
Lower the rear portion of the headliner by removing the two (2) push-pin retainers.
Apply a piece of the 3M(TM) Dual Lock adhesive, or equivalent, over the center push pin, retaining the front headliner.
Raise and reinstall NEW push-pins to retain the rear portion of the headliner.

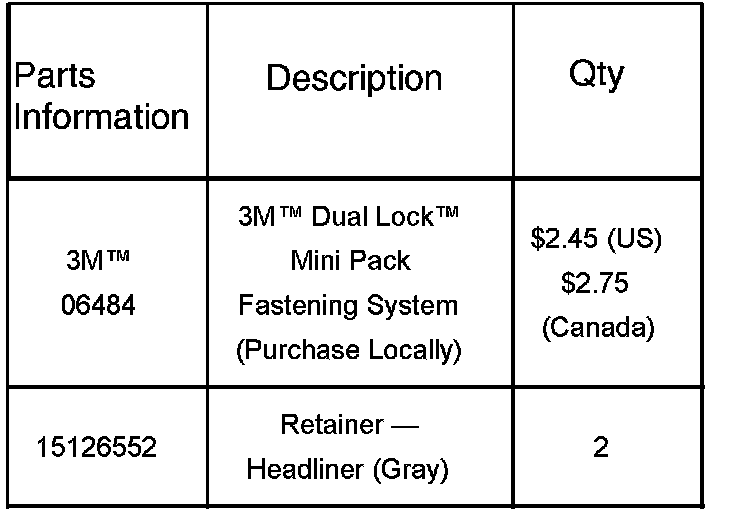

Parts Information
Warranty Information
For vehicles repaired under warranty, use the table.
Disclaimer
