Electronic Brake Control Module

Electronic Brake Control Module (EBCM) X1

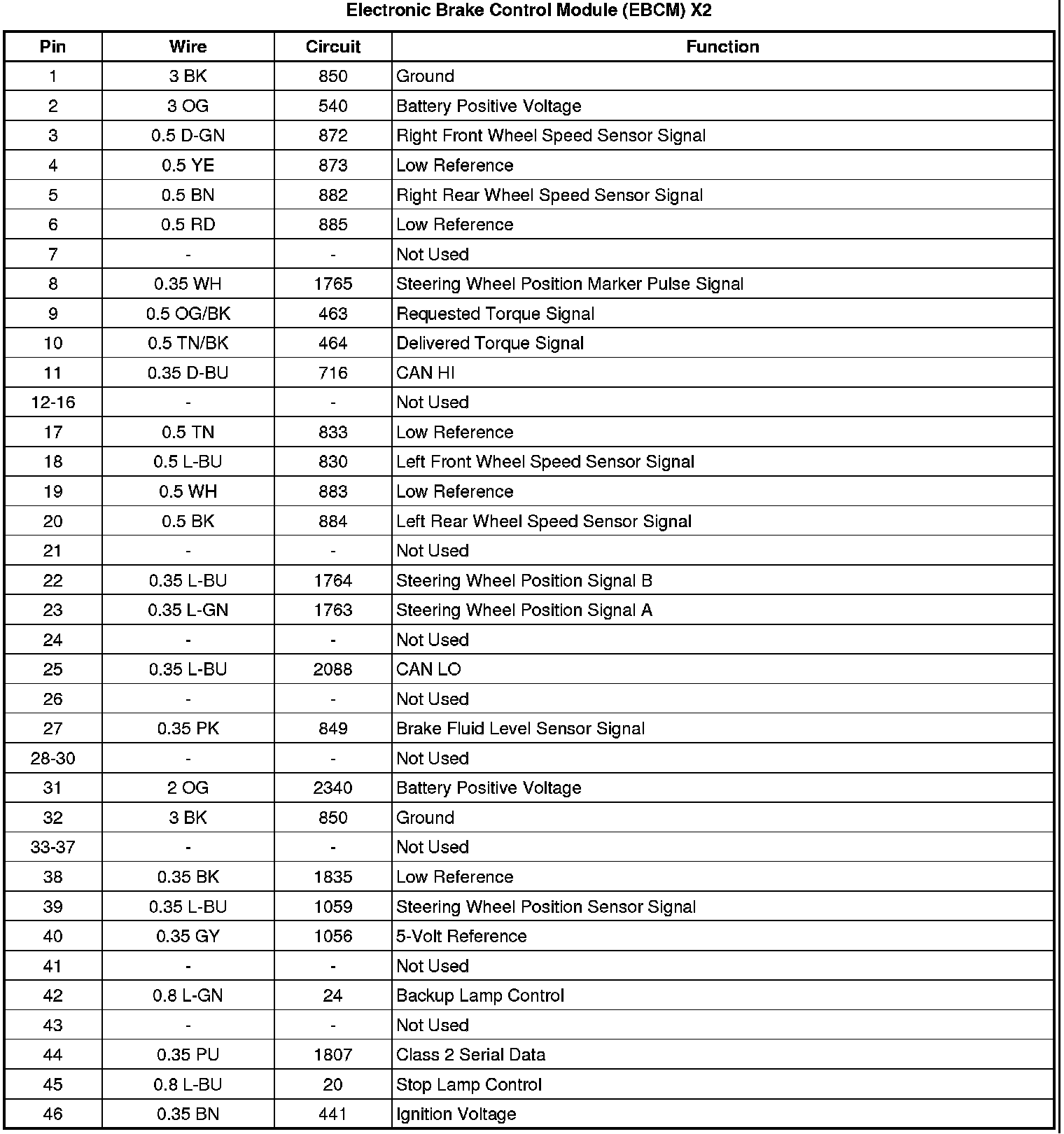

Electronic Brake Control Module (EBCM) X2
