Heating and Air Conditioning



HVAC Schematics

Module Power, Ground, Serial Data, and Blower Controls





Air Delivery Control

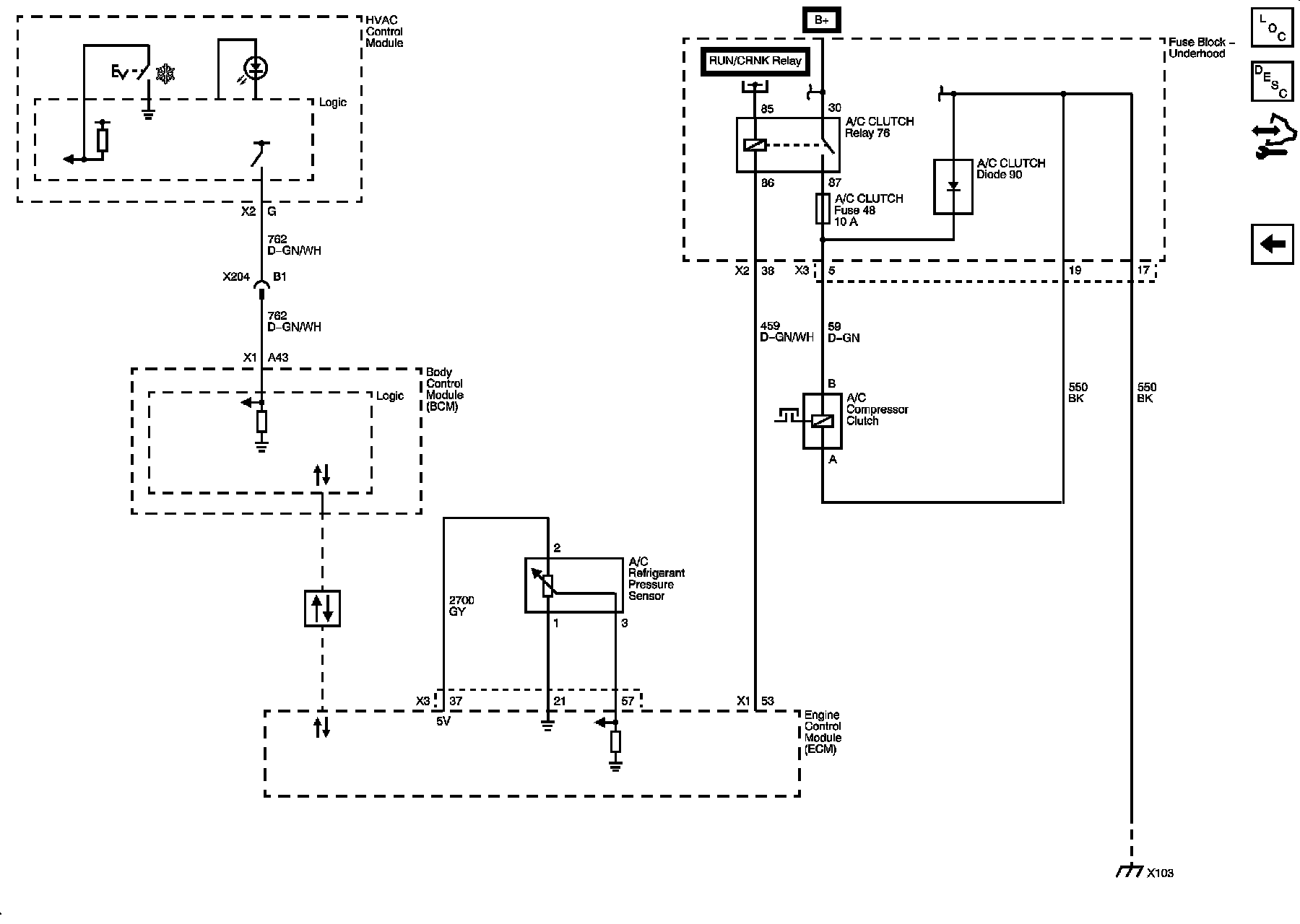

Compressor Controls
