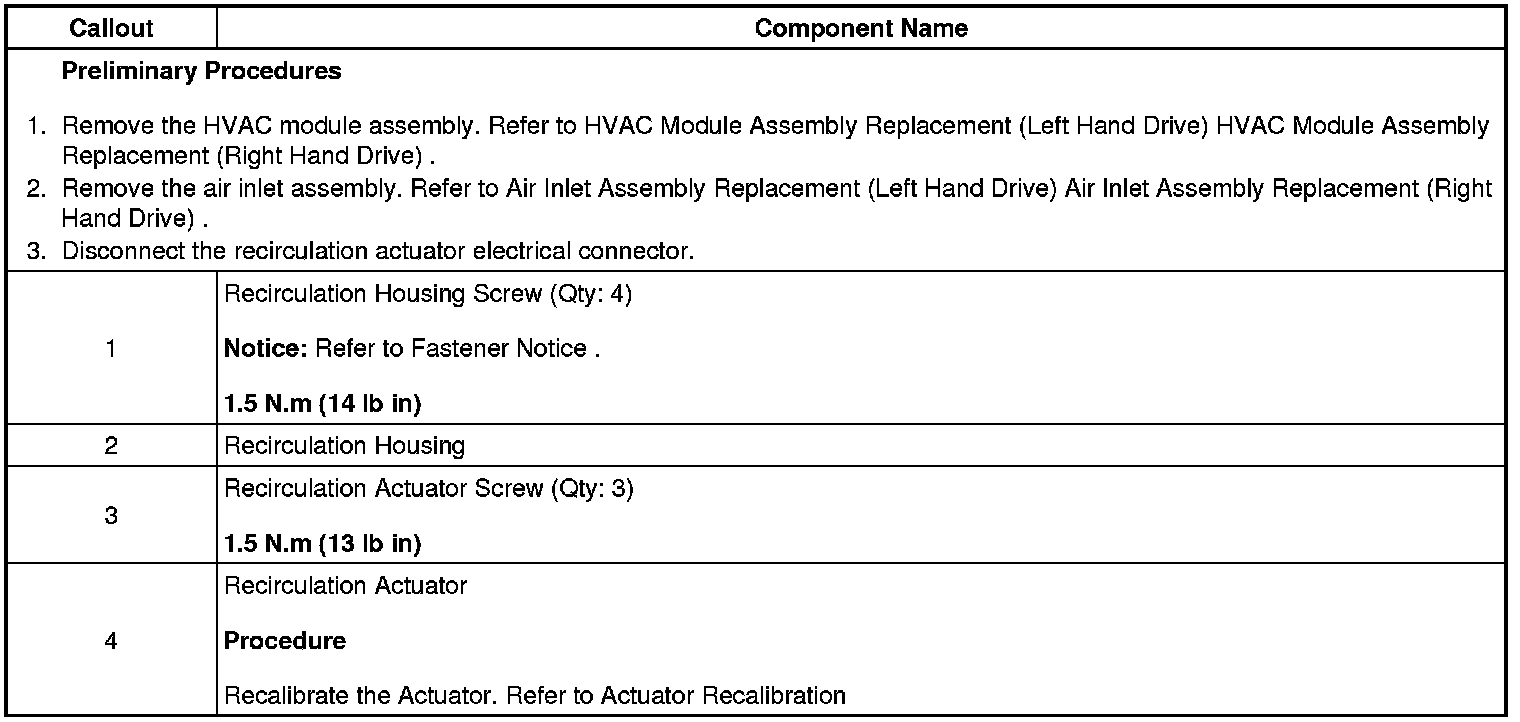

Recirculation Actuator Replacement (Left Hand Drive)



Recirculation Actuator Replacement (Left Hand Drive)
