Door Component Views

Door Component Views

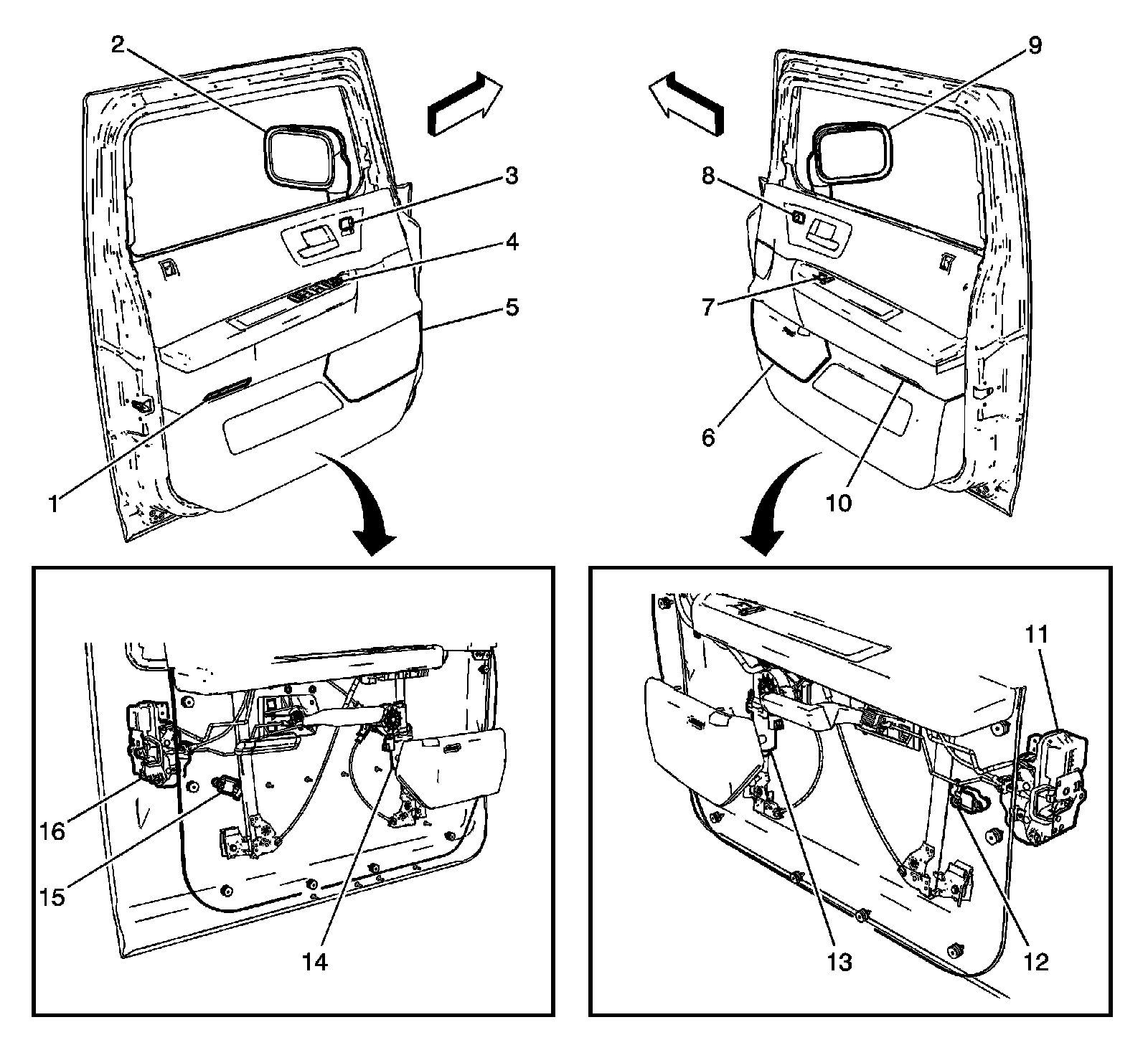

Front Doors

1 - Door Courtesy Lamp-Driver
2 - Outside Rearview Mirror-Driver
3 - Memory/Heated Seat Switch-Driver
4 - Door Lock/Window Switch-Driver
5 - Speaker-Left Front
6 - Speaker-Right Front
7 - Door Lock/Window Switch-Passenger
8 - Heated Seat Switch-Passenger
9 - Outside Rearview Mirror-Passenger
10 - Door Courtesy Lamp-Passenger
11 - Door Latch -Passenger
12 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front
13 - Window Motor-Passenger
14 - Window Motor-Driver
15 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front
16 - Door Latch -Driver

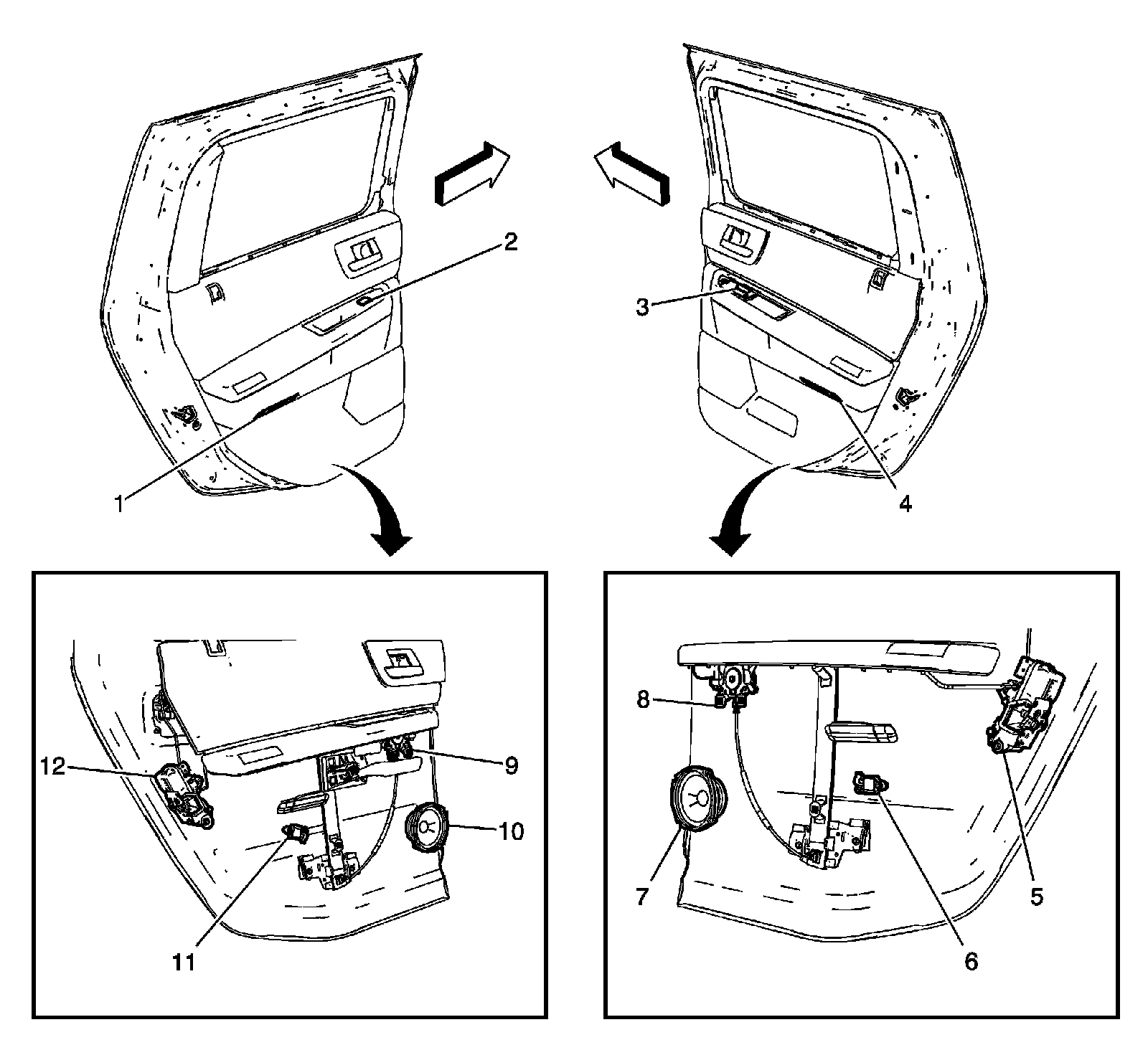

Rear Passenger Doors

1 - Door Courtesy Lamp-Left Rear
2 - Window Switch-Left Rear
3 - Speaker-Left Rear
4 - Speaker-Right Rear
5 - Window Switch-Left Rear
6 - Door Courtesy Lamp-Right Rear
7 - Door Latch Right Rear
8 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
9 - Window Motor-Right Rear
10 - Window Motor-Left Rear
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear
12 - Door Latch -Left Rear

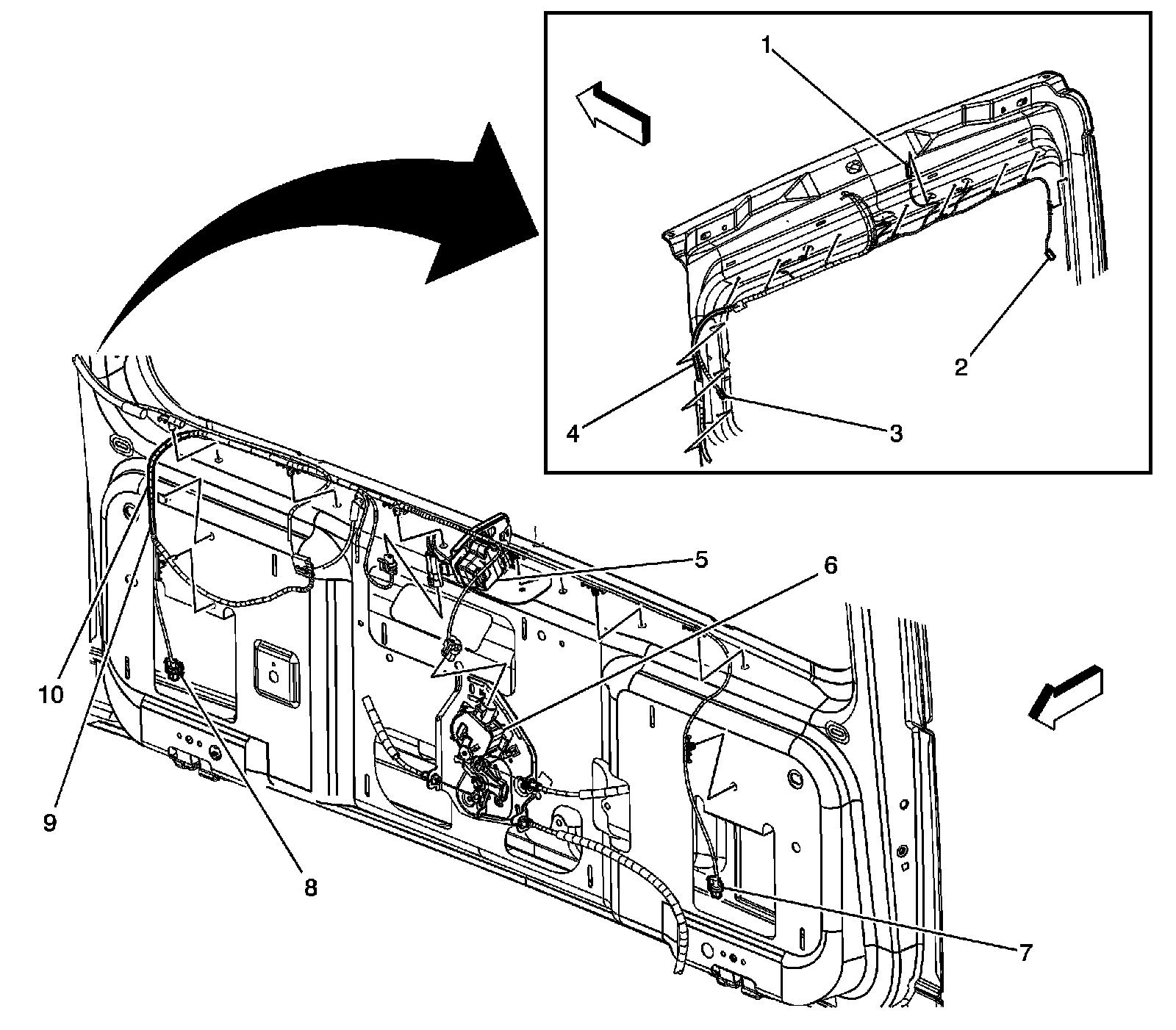

Liftgate

1 - Center High Mounted Stop Lamp (CHMSL) Connector
2 - Rear Window Defogger Grid Connector
3 - Rear Window Defogger Grid Connector
4 - Splice J900
5 - Rear Window Wiper Motor (C25)
6 - Door Lock Actuator - Liftgate
7 - Liftgate Ajar Switch - Left
8 - Liftgate Ajar Switch - Right
9 - Splice J902
10 - Splice J901

Liftgate
