Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Emergency Contact Button
Emergency Contact Button

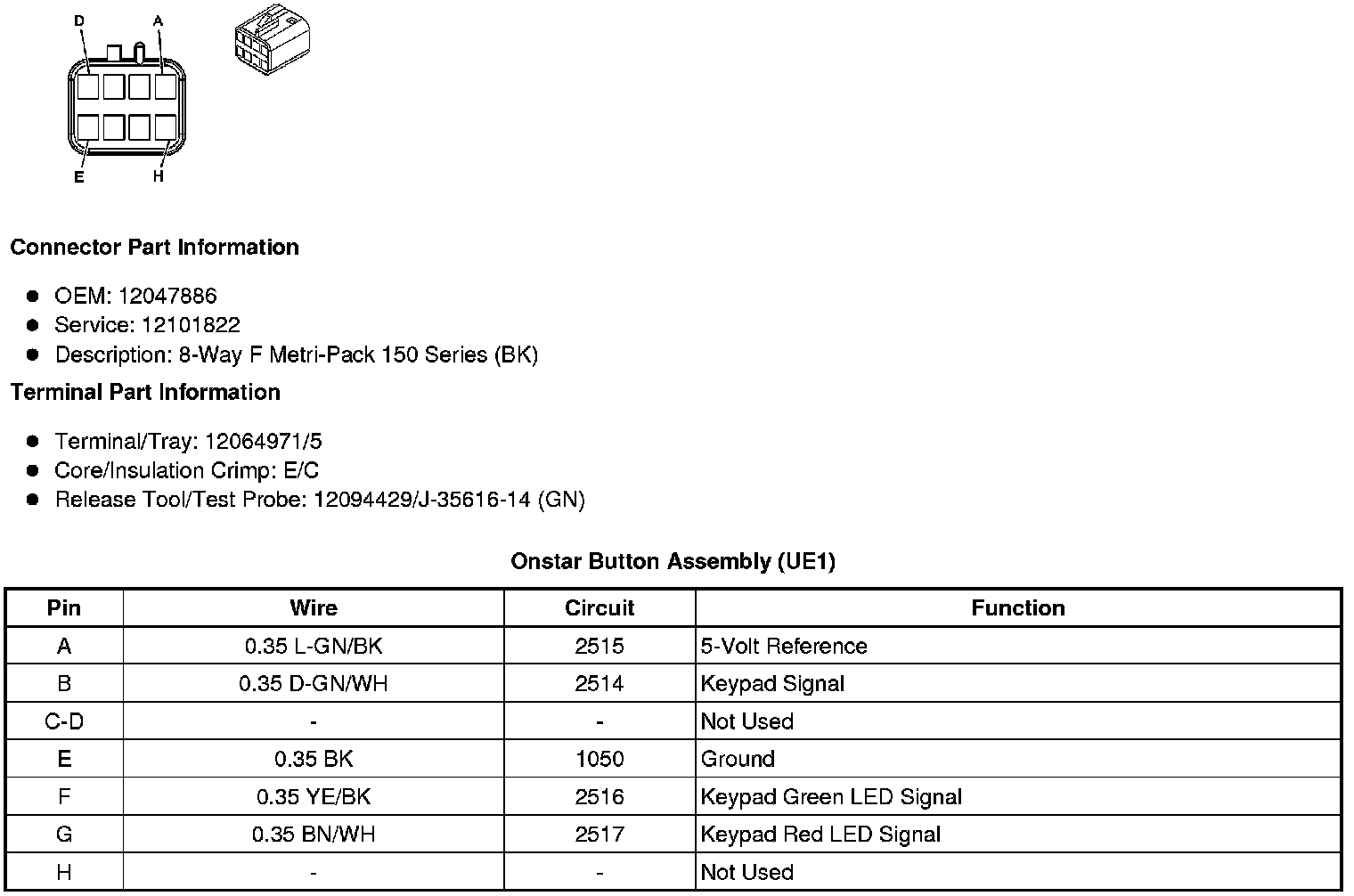

Component Connector End Views
On Star Button Assembly (UE1)
