Power Door Lock Actuator
Power Door Lock Actuator

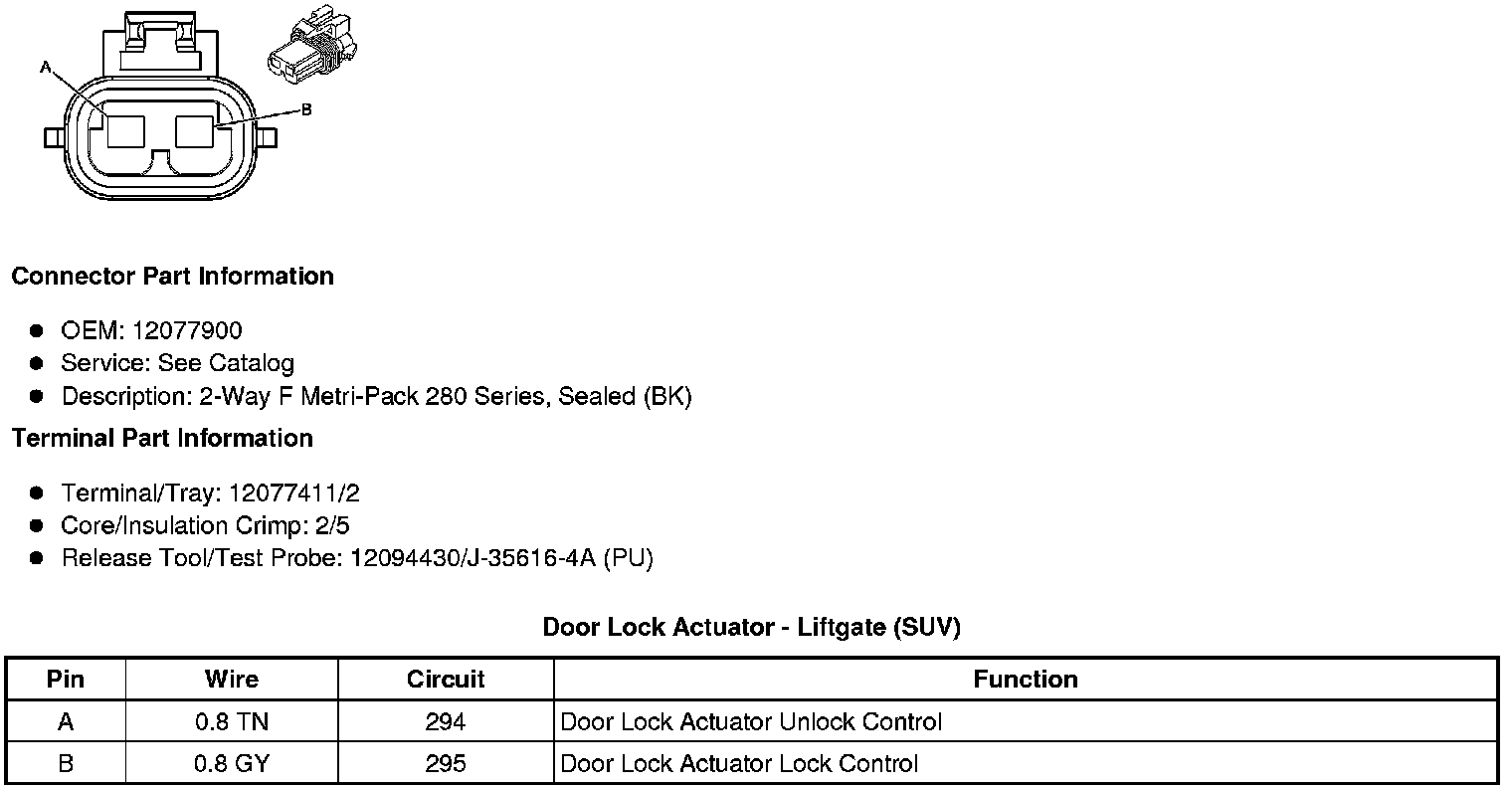

Component Connector End Views
Door Lock Actuator - Liftgate (SUV)
