Antilock Brakes / Traction Control Systems

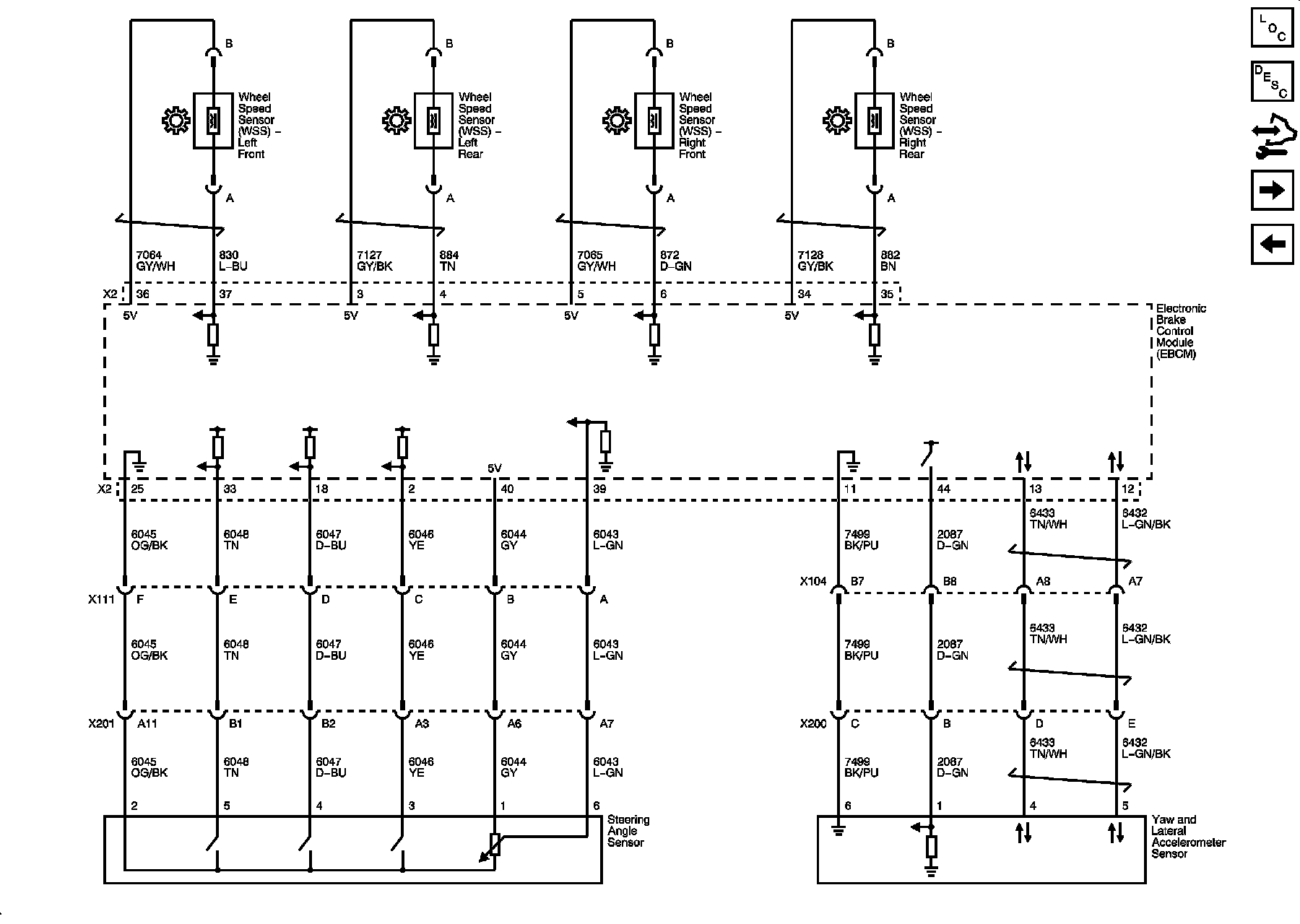

Antilock Brake System Schematics

Module Power, Ground and Serial Data





Sensors
