Suspension Control ( Automatic - Electronic )

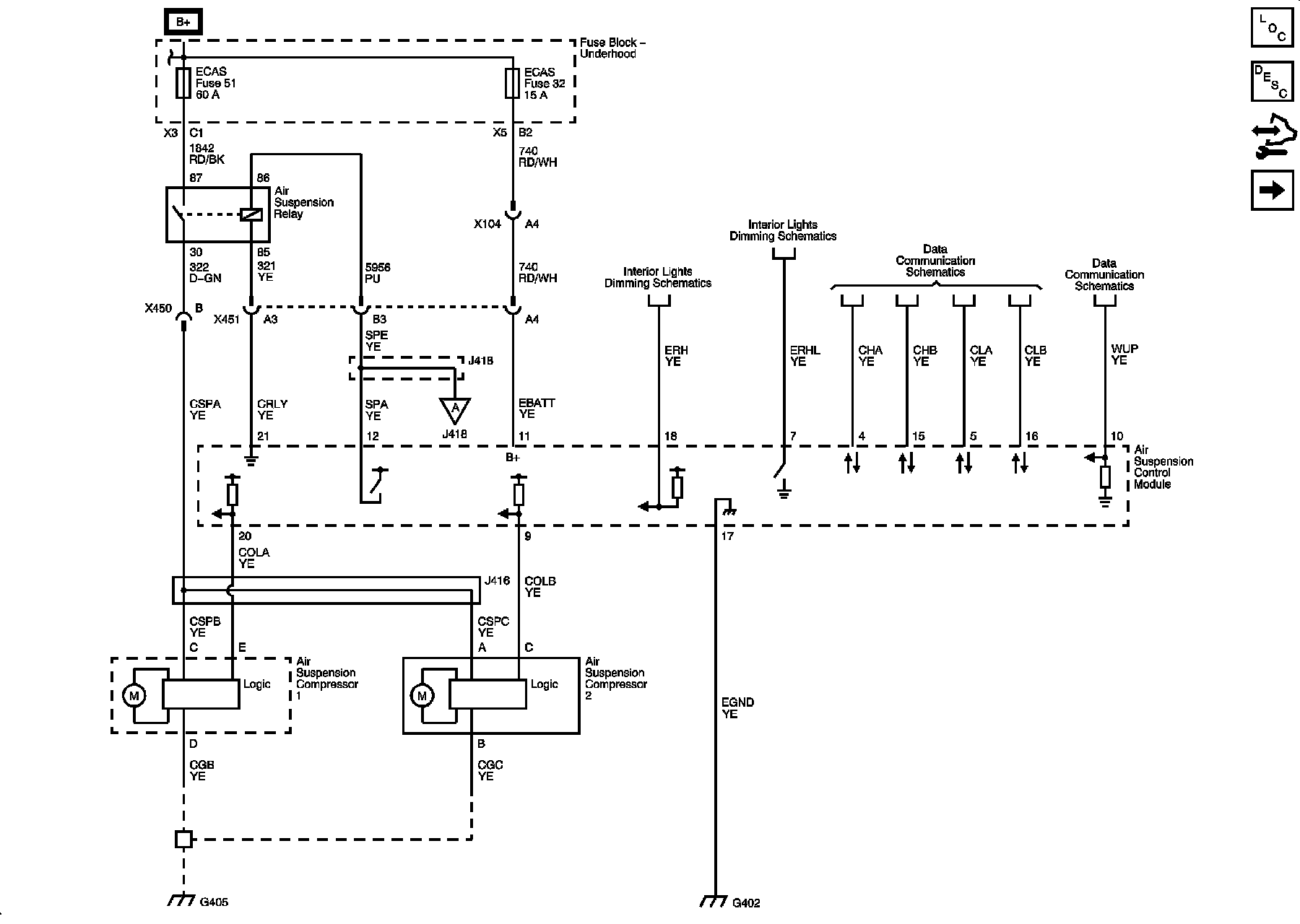

Air Suspension Schematics

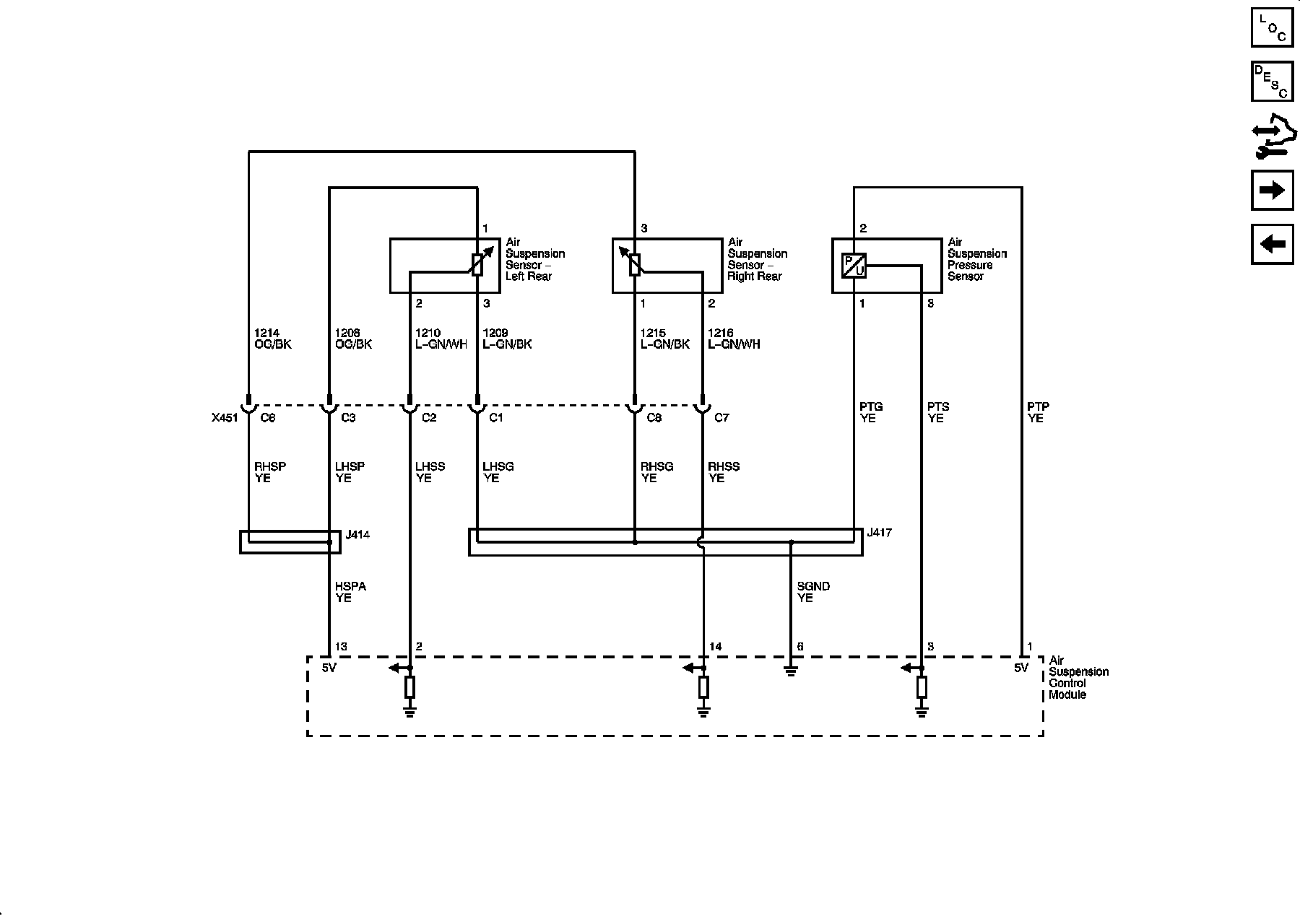

Inflator Switch and Suspension Position Sensors

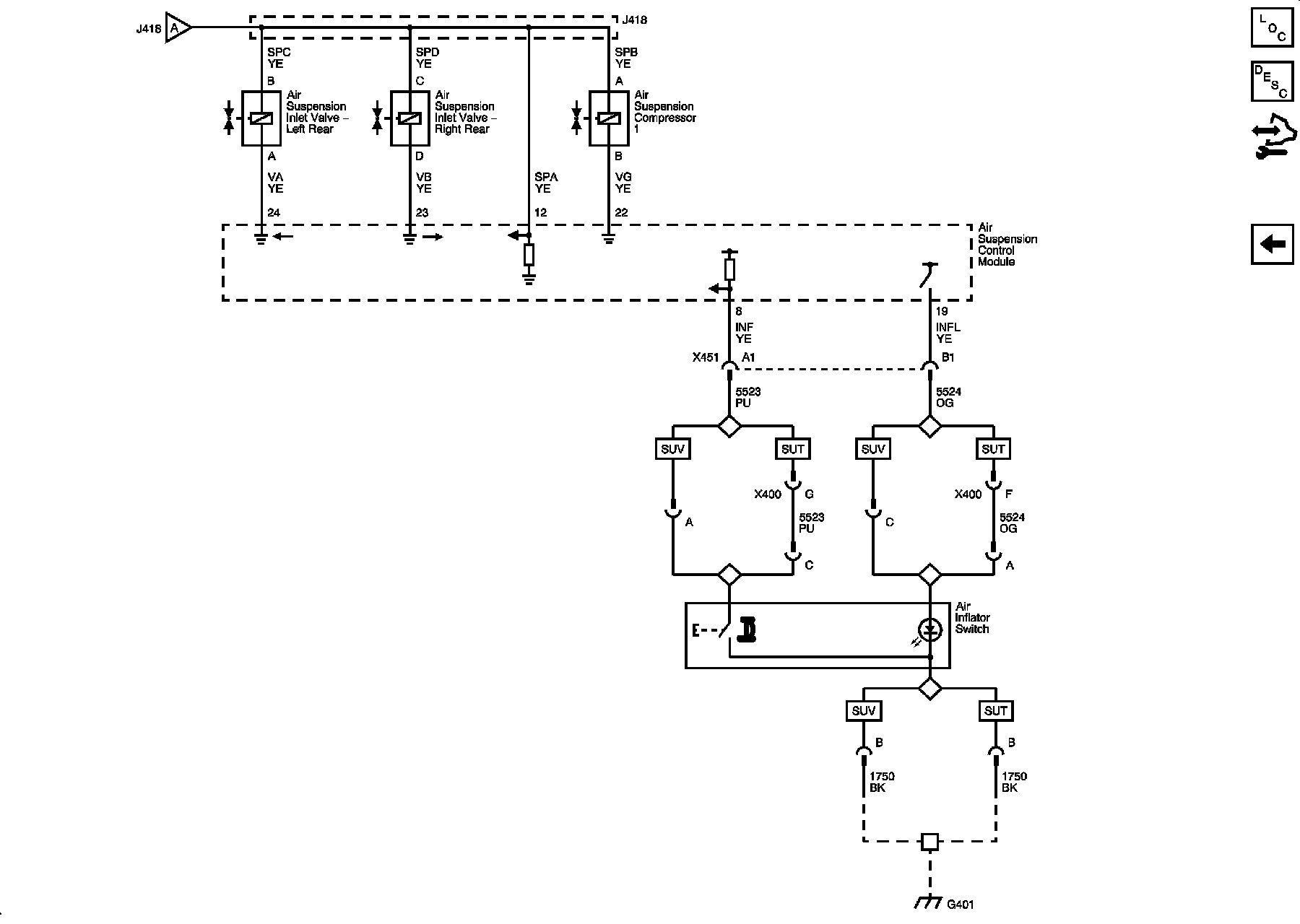

Solenoids Valves and Pressure Sensor
