Transfer Case




Transfer Case Control Schematics

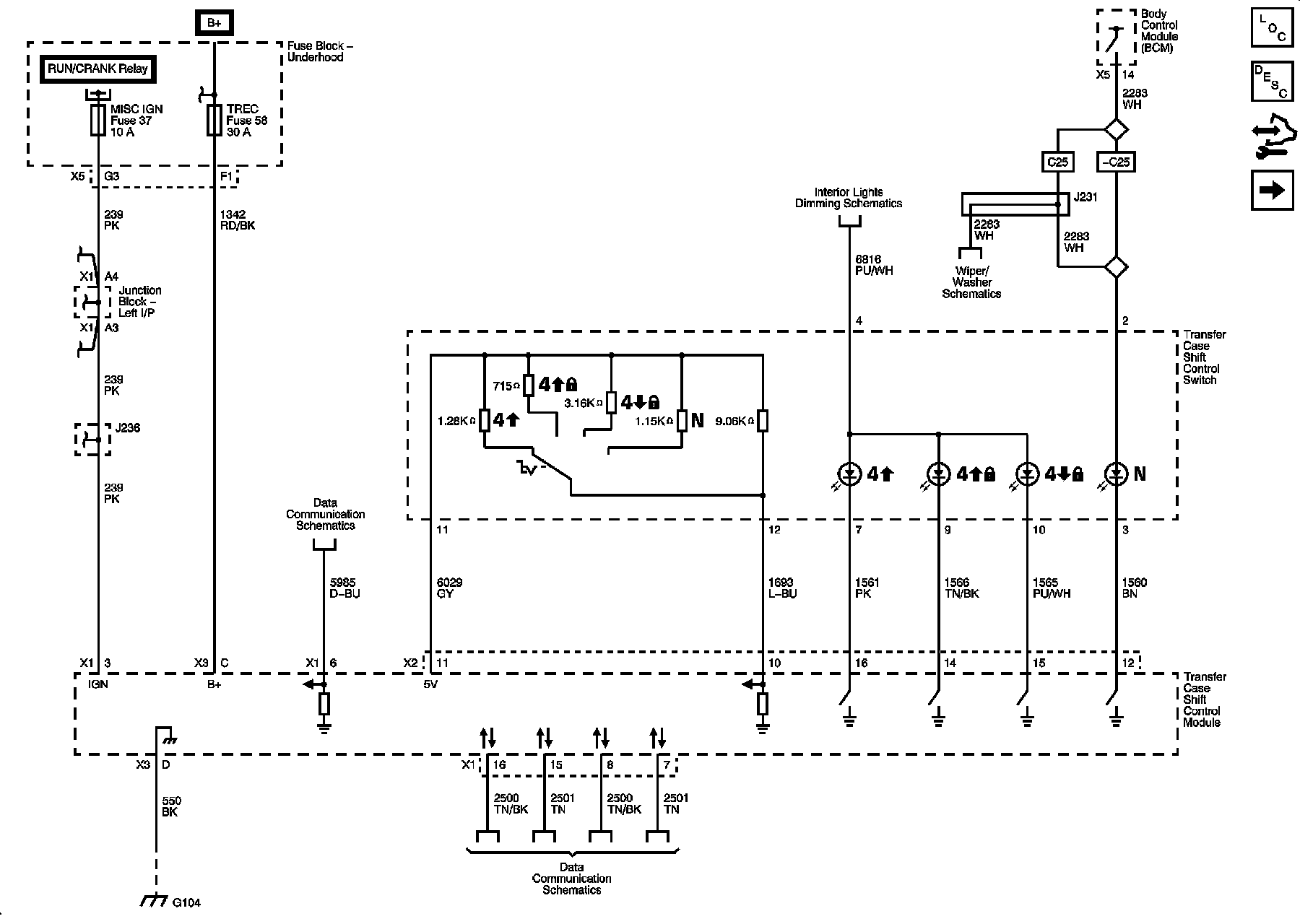

Power Ground and Shift Controls





Transfer Case Controls
