Master Splice List

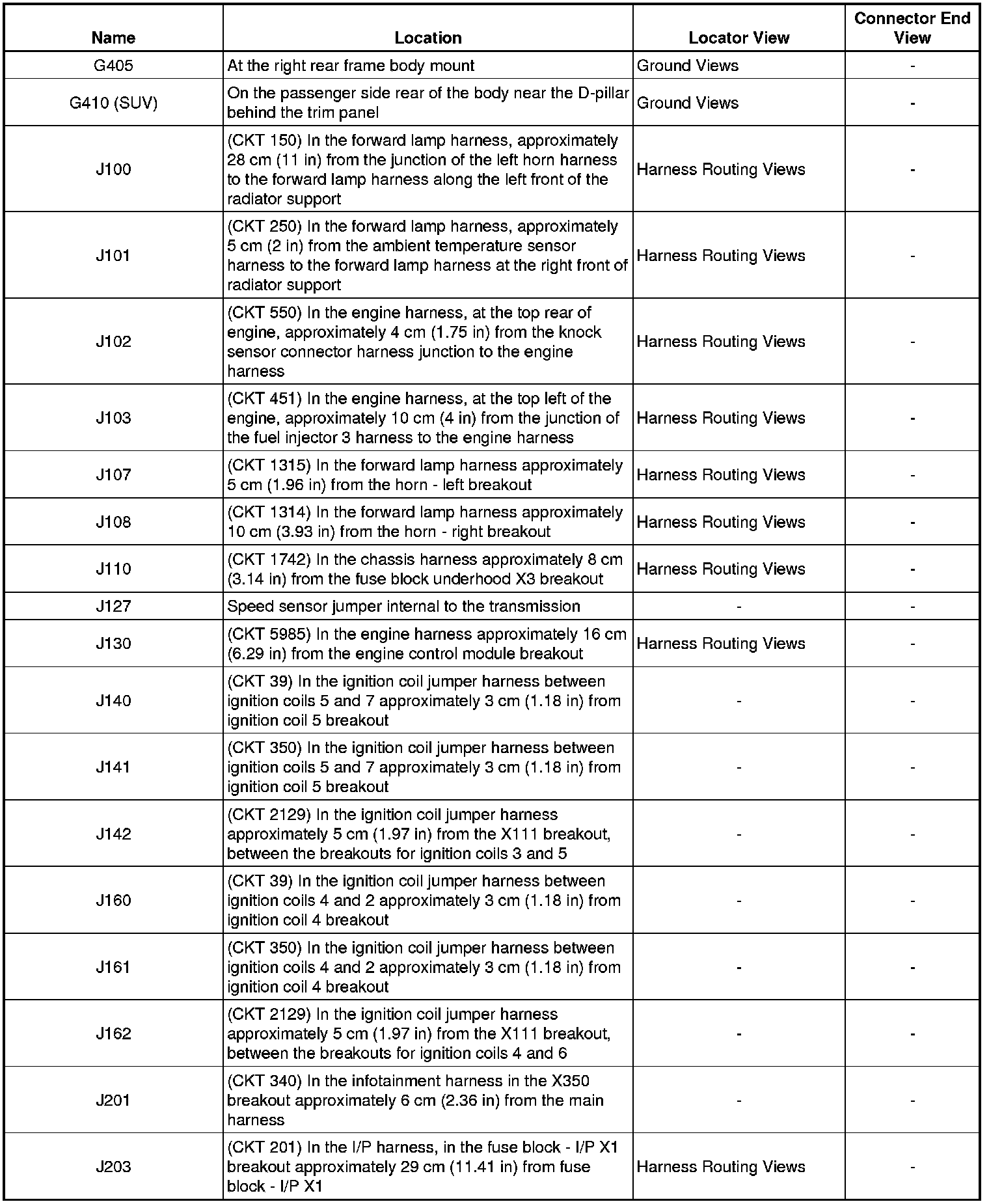

G405 - J203:

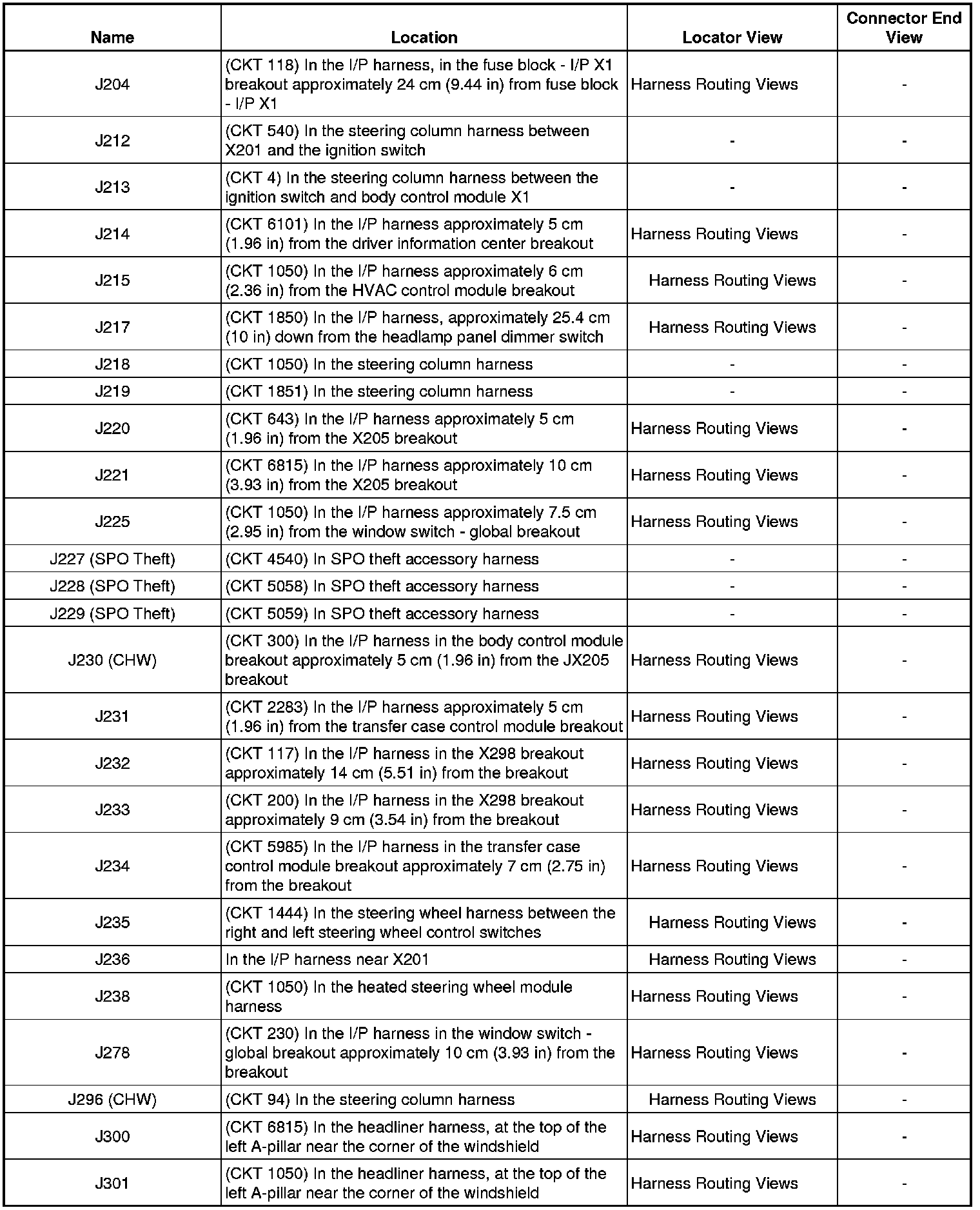

J204 - J301:




J303 - J352:

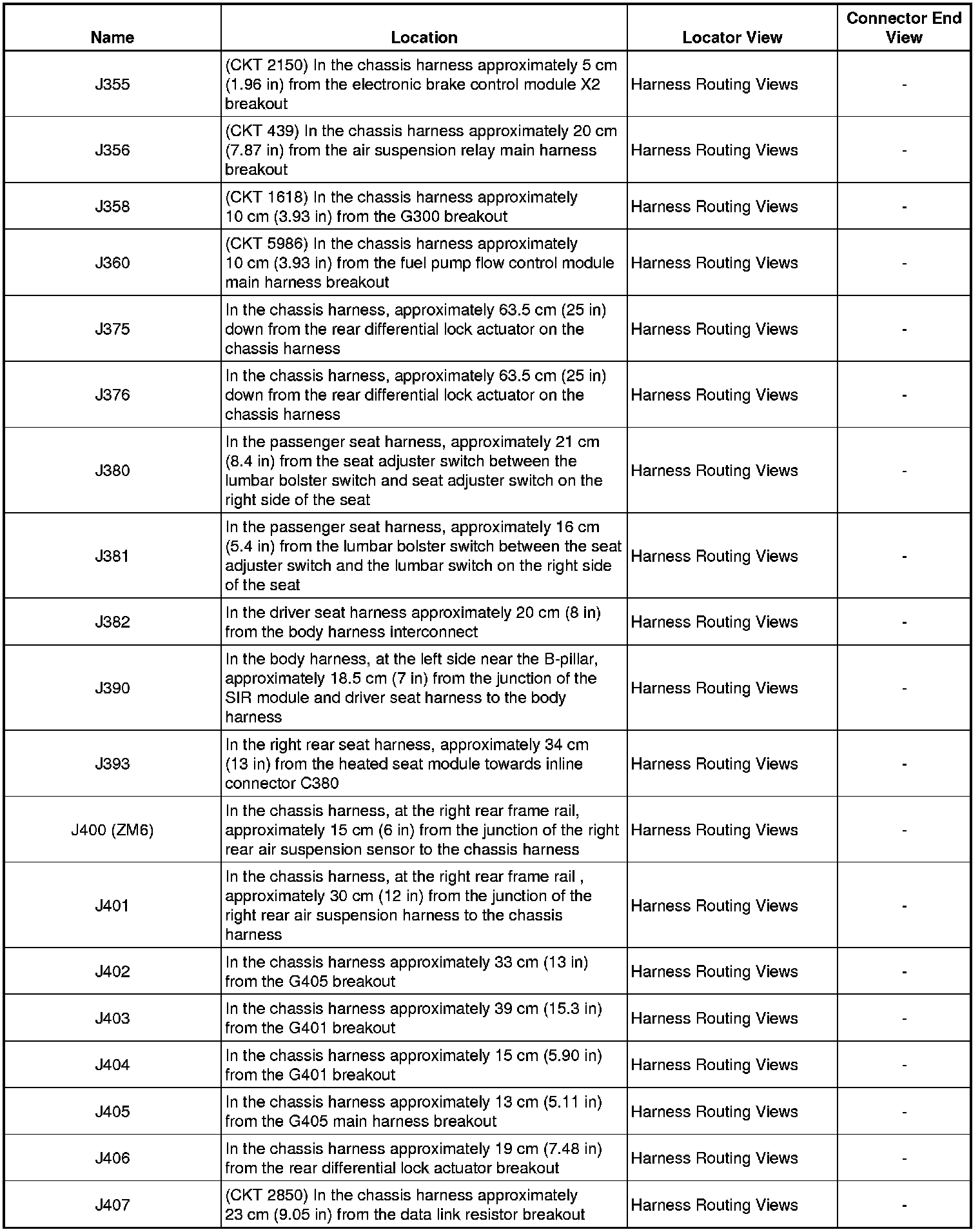

J355 - J407:

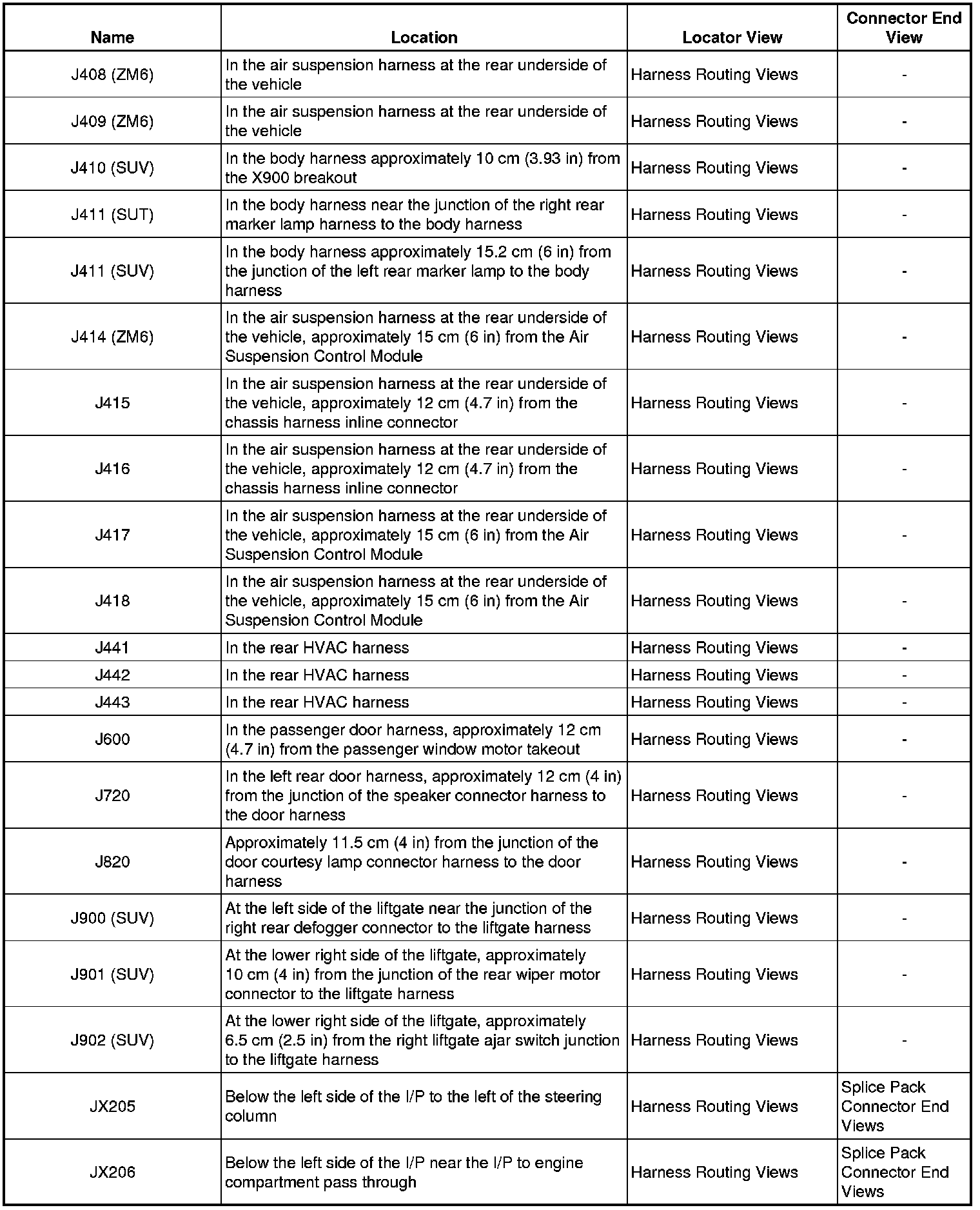

J408 (ZM6) - JX206:

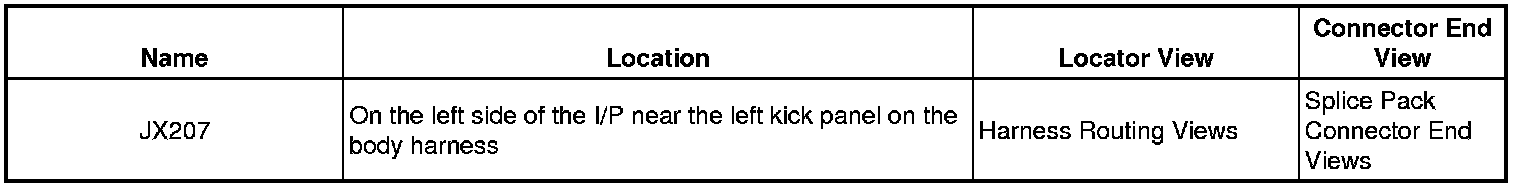

JX207:
