Electrical Diagrams
HVAC Schematics

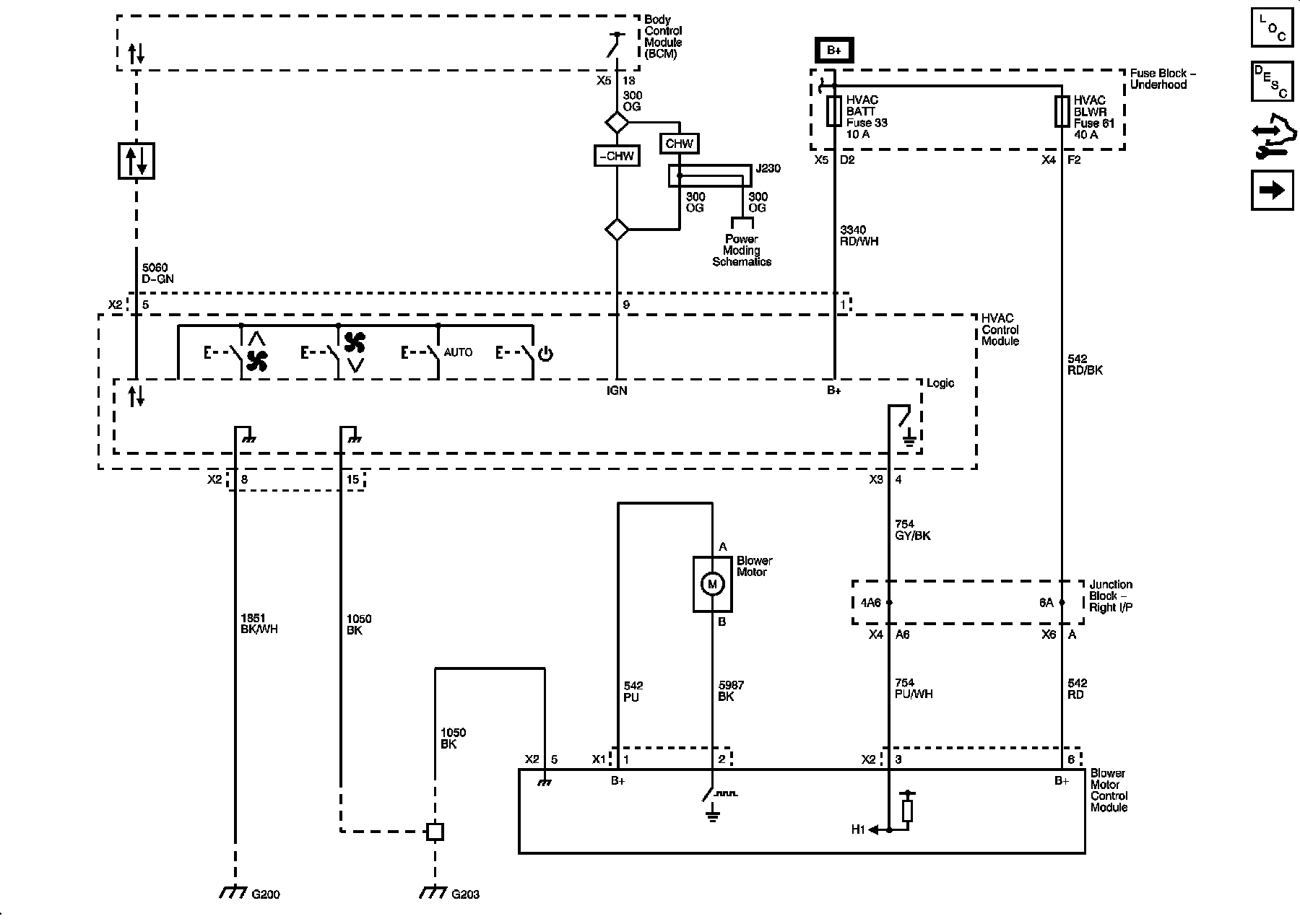

Module Power, Ground, Serial Data and Blower Controls

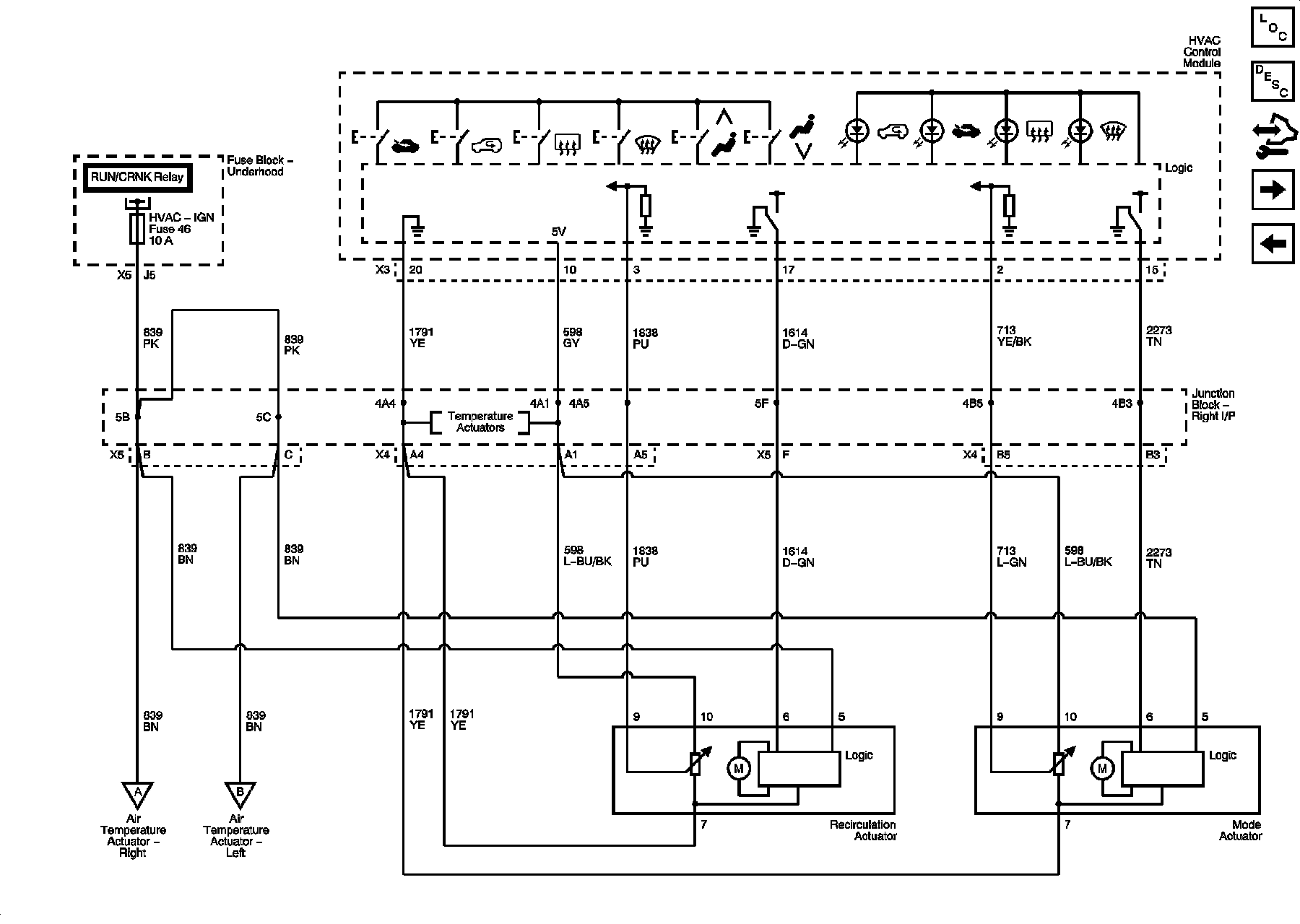

Mode Controls
Temperature Controls

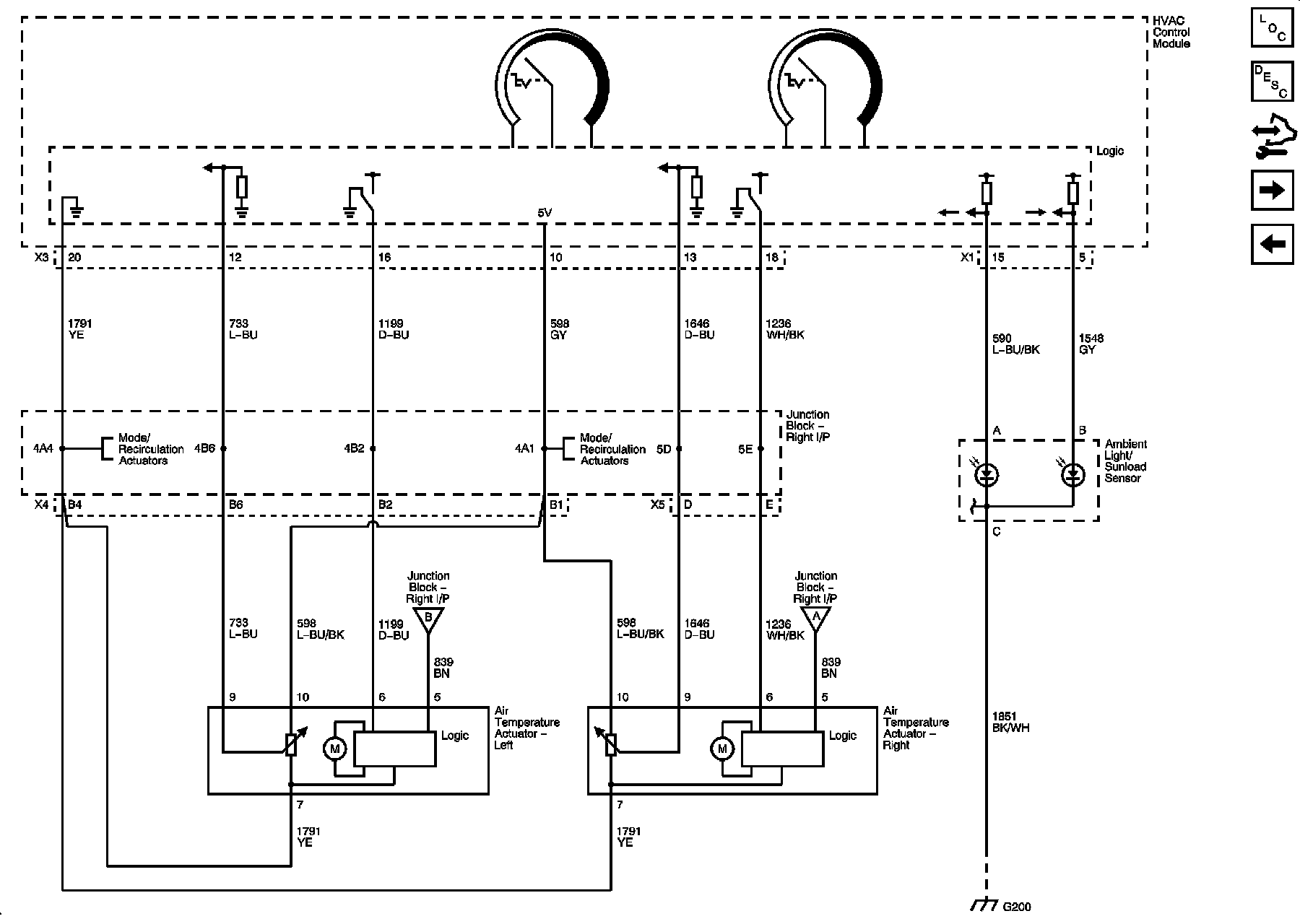

Temperature Sensors

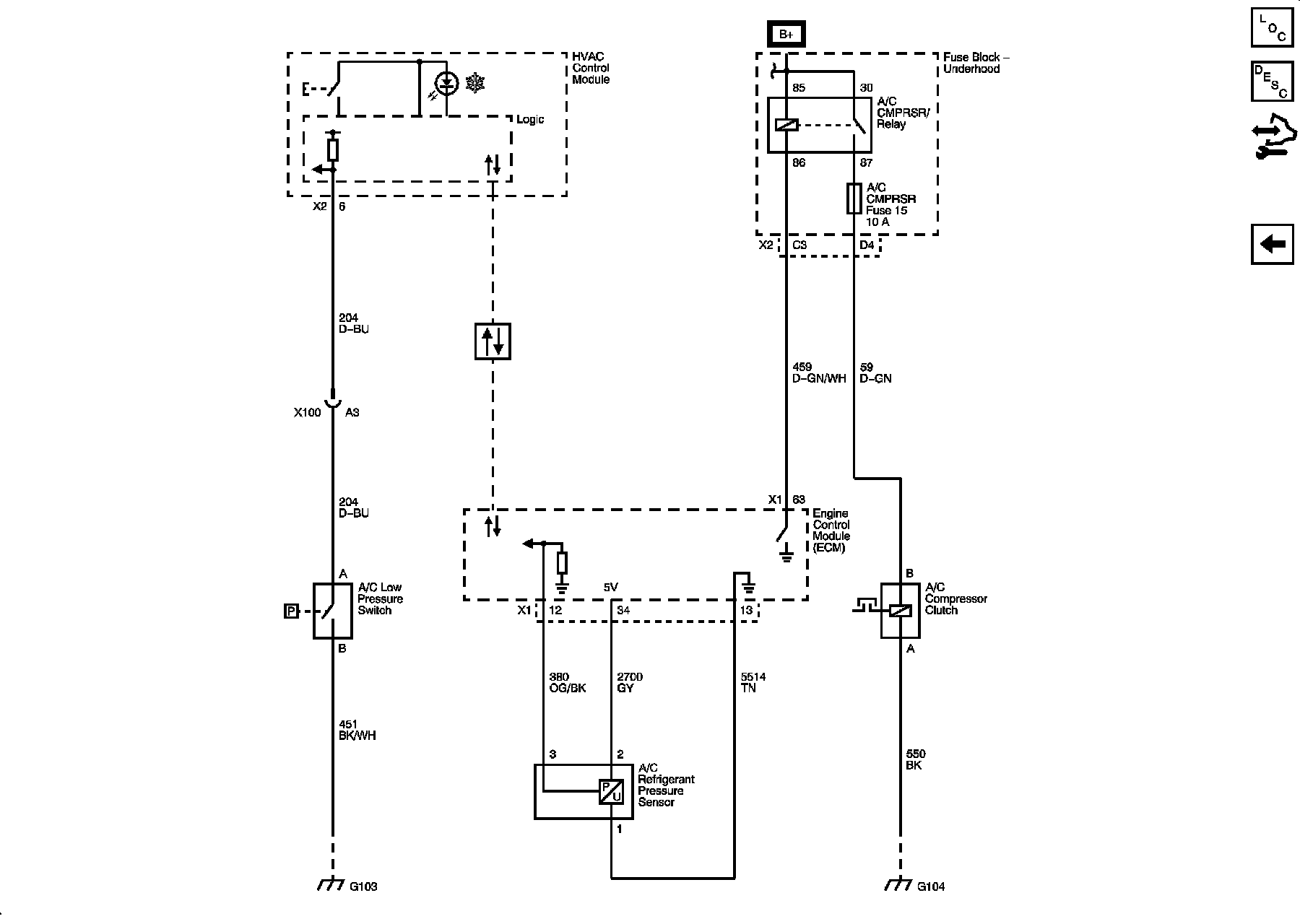

A/C Compressor Controls

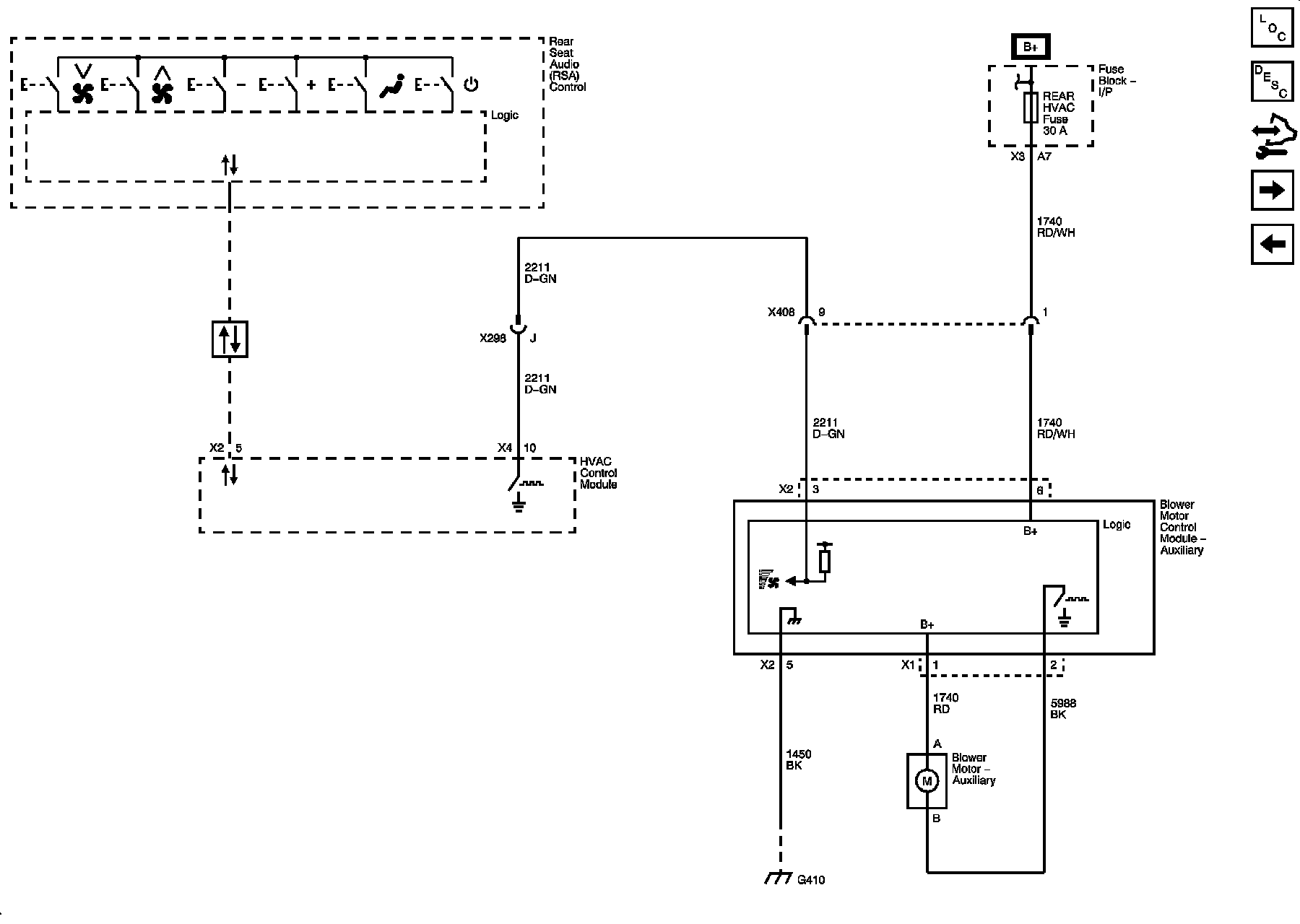

Auxiliary Blower Controls
Auxiliary Mode and Temperature Controls
HVAC Schematics
Module Power, Ground, Serial Data and Blower Controls
Mode Controls
Temperature Controls
Temperature Sensors
A/C Compressor Controls
Auxiliary Blower Controls
Auxiliary Mode and Temperature Controls
