Headlamp: Service and Repair

Headlamp Replacement

Removal Procedure




1. Remove the grille. Refer to Grille Replacement (Grille Replacement).
2. Open the hood.
3. Remove the retaining nuts.
4. Disconnect the wiring harness.
5. Close the hood.

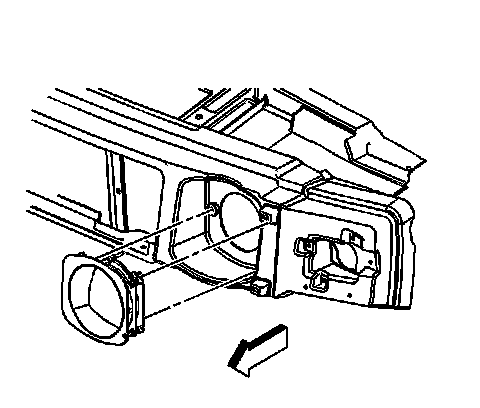

6. Remove the headlamp.

Installation Procedure




1. Open the hood.
2. Connect the wiring harness.
3. Install the headlamp.

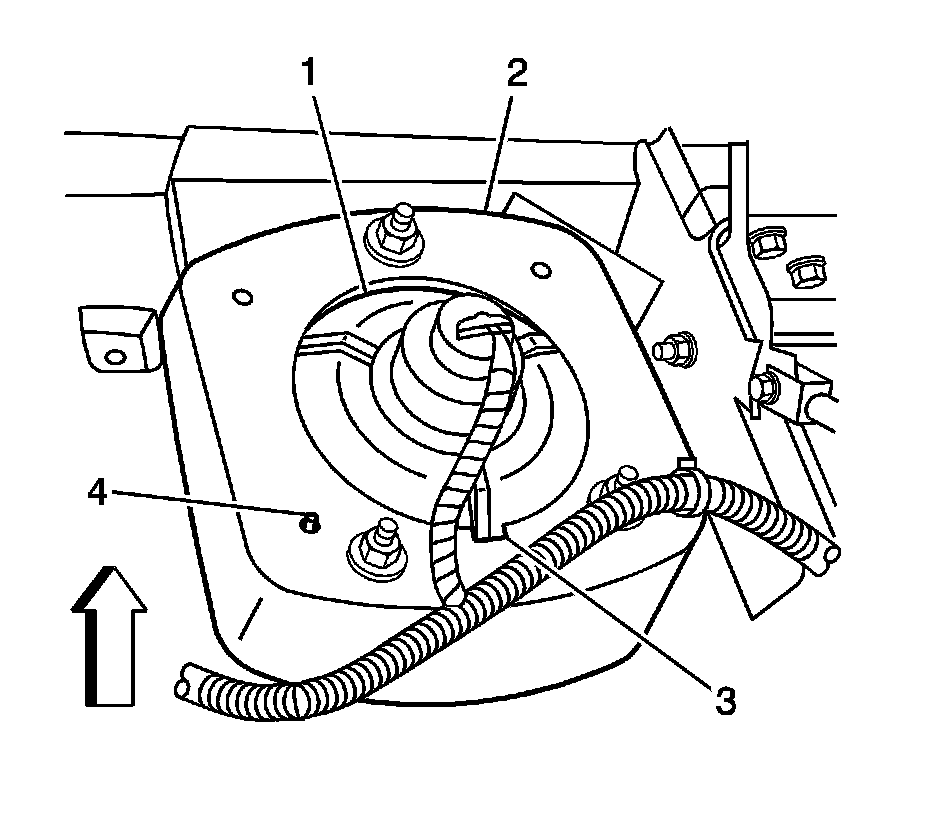

4. Ensure the alignment pin (4) is positioned to the housing (2).





Caution: Refer to Fastener Caution (Fastener Caution).

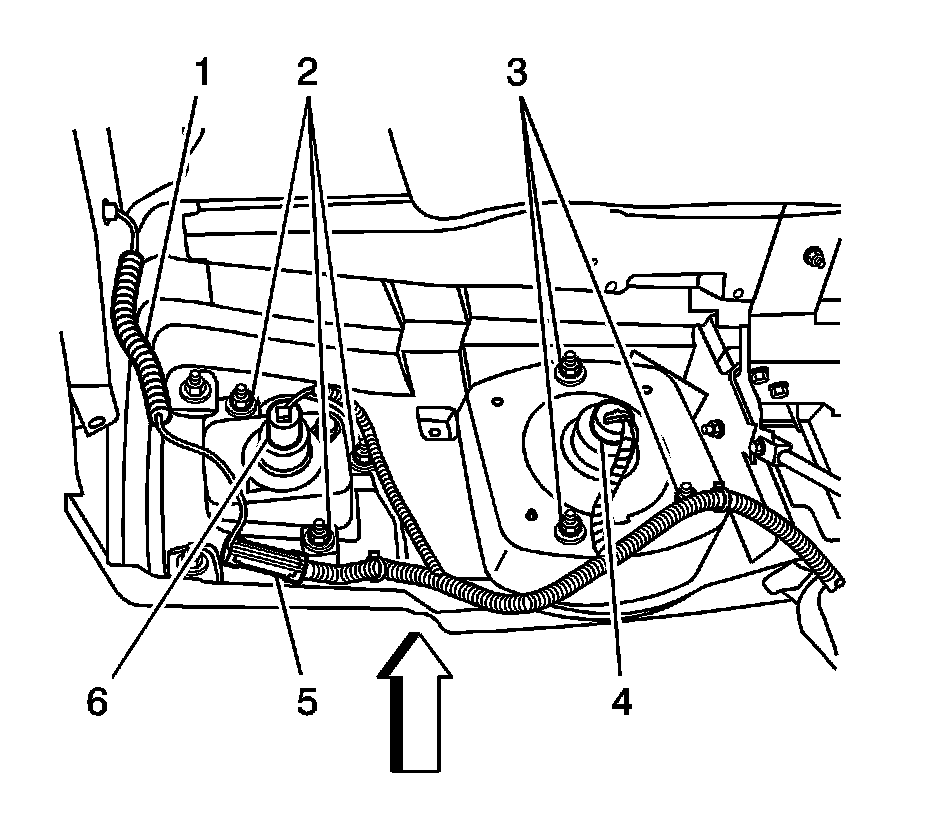

5. Install the retaining nuts (3).

Tighten the nuts to 6 Nm (53 lb in).

6. Connect the electrical connector (4) to the headlamp bulb socket.
7. Close the hood.
8. Install the grille. Refer to Grille Replacement (Grille Replacement).
