Wiper Motor




Component Connector End Views

Rear Window Wiper Motor (SUV)

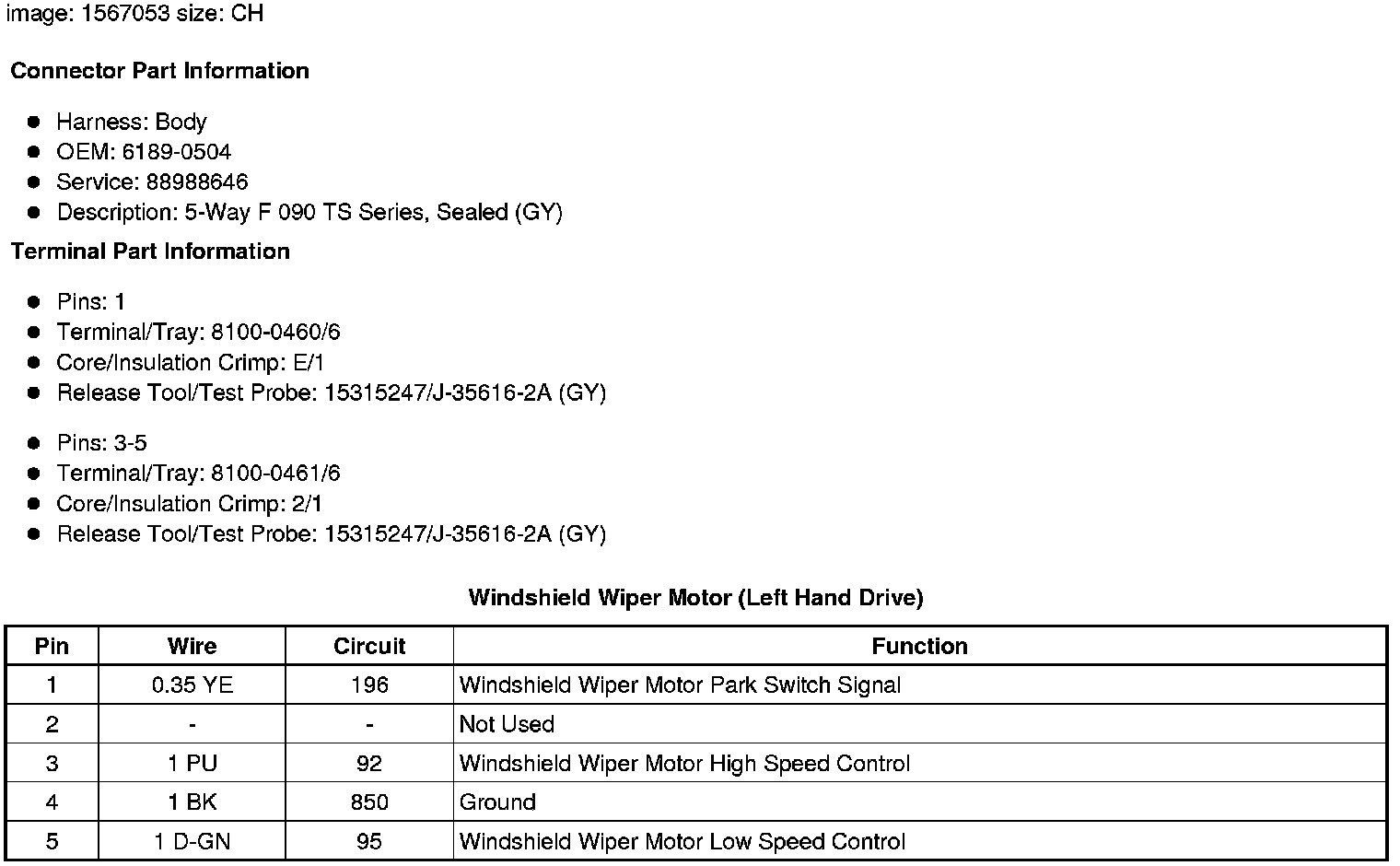

Windshield Wiper Motor (Left Hand Drive)






Windshield Wiper Motor (Right Hand Drive)
