X103
X103

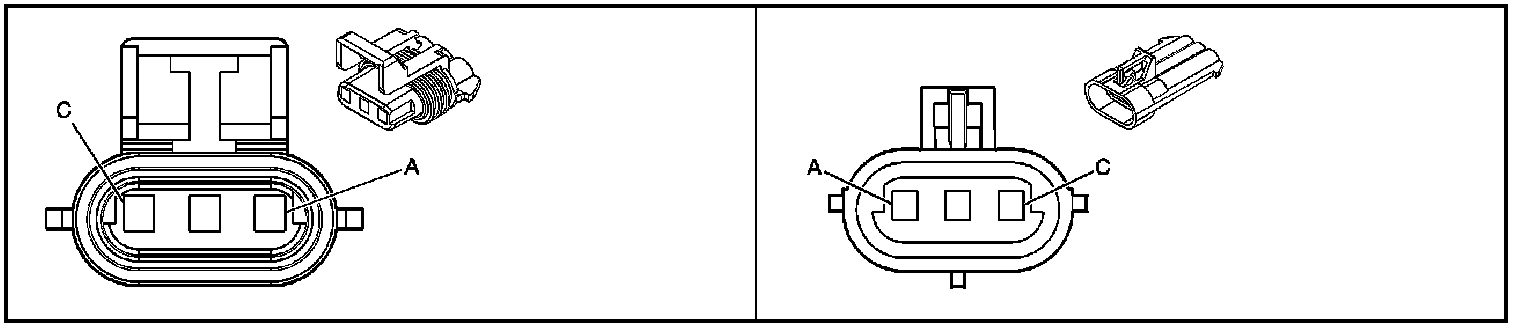

Inline Harness Connector End Views

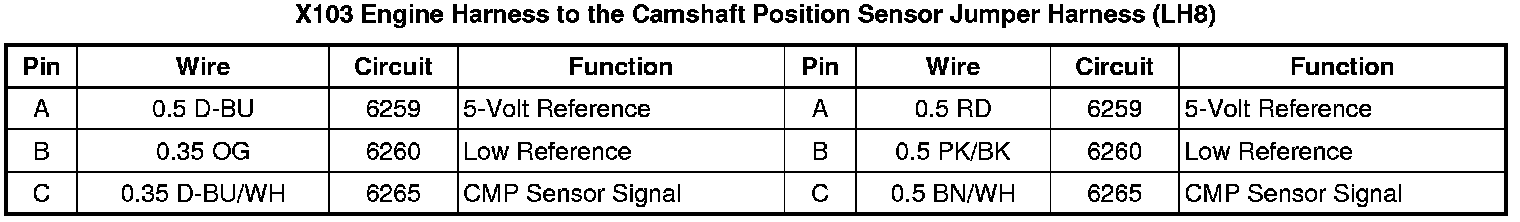

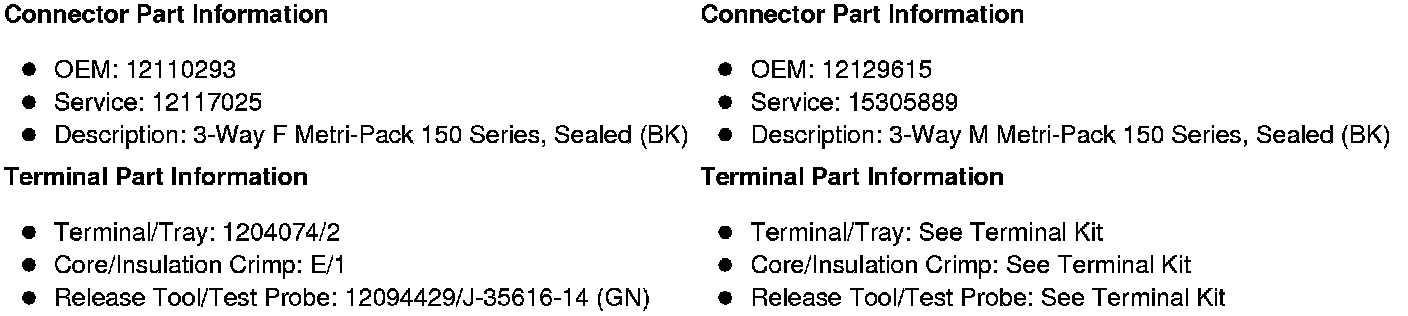

X103 Engine Harness to the Camshaft Position Sensor Jumper Harness (LH8)
