Home
>>
Hyundai
>>
1986
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Choke Thermostat/Heater
Choke Thermostat/Heater

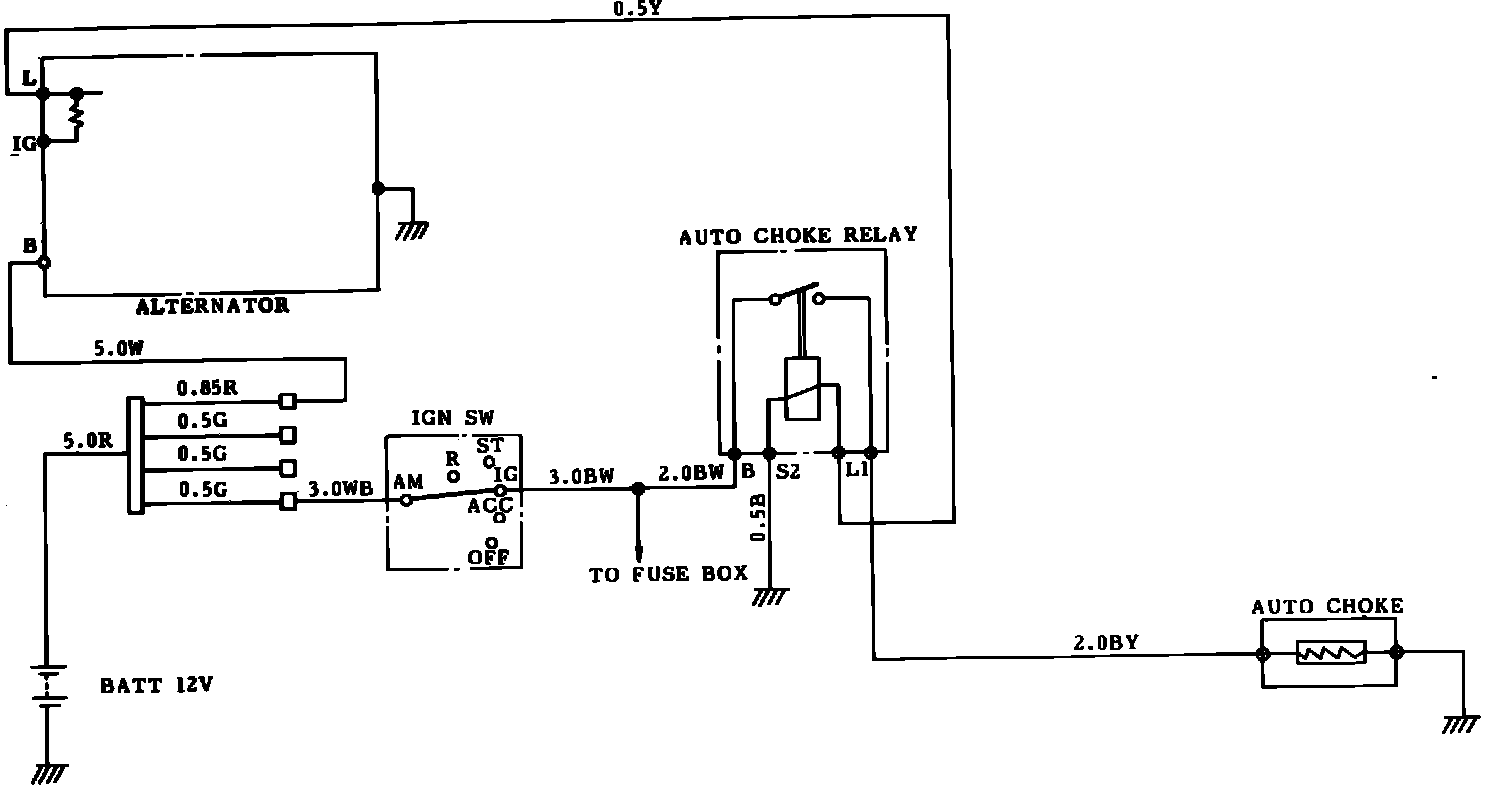

Automatic Choke System Wiring Circuit.:
